new server

[sg12004]

here is another update

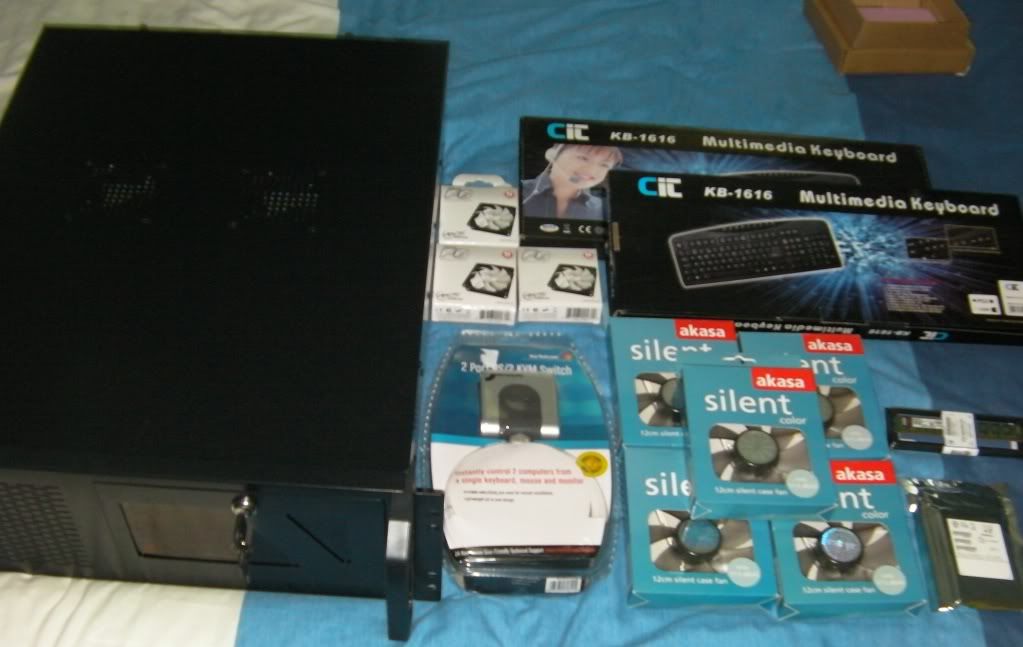

some new stuff that just got deliverd yestarday

and my second Server

this case codegen 4u rack mount eco black has 1 120mm fan at the front and 2 80mm fans on the top cover of the case

asrock Mini itx board dual-core 1.60 with 4 threds cpu

4GB DDr 3 1066 Ram

3x 1Tb + 1.5TB Hard drives

400W Corsair PSU

that was the best cabl managiment i could do in this case

videos will be added sumtime soon



[sheroo]

What's the atom based system going to be used for?



[sg12004]

What's the atom based system going to be used for?

i will probily use it to back up the new server or i will use it for hoting my docs music, images, games, programs, and have the new server for all my films, tv shows and dvd rips



[sheroo]

i will probily use it to back up the new server or i will use it for hoting my docs music, images, games, programs, and have the new server for all my films, tv shows and dvd rips

mmm backup server - That's on my to do list...



[Karlos_the_n00b]

Now that looks very nice



[sg12004]

here is my first server done so fare

[media]http://www.youtube.com/watch?v=NieAQjR0eTw[/media]



[sg12004]

the New Server Server 2

[media]http://www.youtube.com/watch?v=h-gVzEcDg2c[/media]



[AMDFTW]

coming together nice mate



[Karlos_the_n00b]

coming together nice mate

+1 (Sorry, feeling too tired to construct an original comment

)



[sg12004]

heres the server rack video isnt that good so will try and do a nother one soon

[media]http://www.youtube.com/watch?v=Sm5w_w77qf0[/media]



[sg12004]

[media]http://www.youtube.com/watch?v=uejeEiLCG3w[/media]



[sheroo]

Just a quick question about the X-Case RM 400/10 V2 case that you are using for your 2nd server. I've just looked at Jamo's vid and he says that you can fit 2 * 5 in 3 caddies/backplanes into this case. Would they go were the 2 front 120mm fans are?



[Rastalovich]

This is a great project.

You can pay upwards of £1k for one of those server racks, and there's not really much to them. Your ghetto approach is a much better option.

I went for the shelf attached to the wall option myself, not as tidy as this build tho.

Can't believe how cheap that 4u case is >.<



[sg12004]

Just a quick question about the X-Case RM 400/10 V2 case that you are using for your 2nd server. I've just looked at Jamo's vid and he says that you can fit 2 * 5 in 3 caddies/backplanes into this case. Would they go were the 2 front 120mm fans are?

ye i have one of thos coming tommorow and i will get another one later plus i will be geting 5x 2TB drive to go in to it in about 4 months when i build my new gaming rig

and yes you would have to remove the front fan plates and fans to put them in to that case

link to server case

5 Drive Storage Kit



[sg12004]

This is a great project.

You can pay upwards of £1k for one of those server racks, and there's not really much to them. Your ghetto approach is a much better option.

I went for the shelf attached to the wall option myself, not as tidy as this build tho.

Can't believe how cheap that 4u case is >.<

thanks it was a good idea for me plus it only cost about £55 tot to build it i could have got some more wood and made some more shelvs but i will only be having 2 server on it so it was ok for that



[sheroo]

ye i have one of thos coming tommorow and i will get another one later plus i will be geting 5x 2TB drive to go in to it in about 4 months when i build my new gaming rig

and yes you would have to remove the front fan plates and fans to put them in to that case

link to server case

5 Drive Storage Kit

In that case wouldn't that leave you 3 * 5.25 bays free on the right hand side? Couldn't you put a 5 in 3 in there as well?



[sg12004]

In that case wouldn't that leave you 3 * 5.25 bays free on the right hand side? Couldn't you put a 5 in 3 in there as well?

ye i suppos u could when my fist one comes tommorow i will try it in that bit to see if it fits and will get another in the future for that



[sheroo]

ye i suppos u could when my fist one comes tommorow i will try it in that bit to see if it fits and will get another in the future for that

Does the right hand side have rails for 5.25 devices? If it does it'll only take a 4 in 3, as they have grooves in the sides, but the 5 in 3's don't.



[sg12004]

Does the right hand side have rails for 5.25 devices? If it does it'll only take a 4 in 3, as they have grooves in the sides, but the 5 in 3's don't.

no its just the same as the other 2 bits plus eny cases with thos grooves can be bent in for the drive bay box to fit in

[media]http://www.youtube.com/watch?v=wMzrHPgoJdk&feature=player_embedded[/media]



[sheroo]

Cool so in theory you could put 15 hot swap drives in there then.
