Mystery Machine

[pSyKo]

I've recently built a rig and it does everything but play games.

I7-3930K,
Corsair H100i cpu cooler
GA-X79S-UP5-WIFI mobo
32GB (8x4GB) Corsair Dominator Platinum 2133mhz
2x EVGA GTX Titan SC in SLI
Corsair 860i platinum / Coolermaster 1200w silent pro gold
1x Kingston Hyper-X 120gb SSD
1x Corsair Neutron GTX 256GB SSD
1x WD 2TB HHD (green)
1x SG 2TB HHD (barracuda)
1x WD 4TB (Black)
NZXT Phantom 810 case


Whenever i try and play a game, the screen freezes and a horrible noise comes out the speakers and i have to reset. Also, the usb keyboard and mouse lights power off.

I have noted that if i change any settings within the BIOS in regards to memory, it will fail to boot and i have to reset cmos back to default optimized settings. BIOS says memory is running at 1333mhz but if i load a XMP profile or change the timing, it fails to boot.

I thought it was possibly the 1200w PSU but when i swapped it to a 860w, the same problems occur.

Im struggling to figure out weather its something in BIOS, the memory itself or the MoBo

HEEEELP!!!!



[alxcsb]

The 7850 I used to have did the same thing. Might be one of the titans. Try running a single card, see what it does. You should try each of them, obviously. Bet it works just fine with only one of them.



[Mark3Max]

Hi pSyKo and welcome to the OC3D forums.
It sounds to me like you might have a couple of issues at the same time.
Memory compatibility and Nvidia control panel settings
ftp://download.gigabyte.ru/memory/mb_memory_ga-x79s-up5-wifi.pdf
The above link is for the supported memory for this board.
Check all your settings in Nvidia control panel and make sure you have them set correctly. But I still think your main issue is with the ram...I could be wrong though.



[pSyKo]

Hmmm

Seems weird that it can only have 4 memory slots occupied when it has 8.

Ive been considering taking one Titan out to fault find but I keep conflicting with the idea that its supposed to work, not "not work".

Ill give it a shot and see what happens but I'm reluctant to settle for 1 titan and 16GB of memory when i got 32 ands board takes 64gb max.



[pSyKo]

I have even tried separate 12V cables for each titan power plug but according to Corsair Link, they both have plenty of power.



[pSyKo]

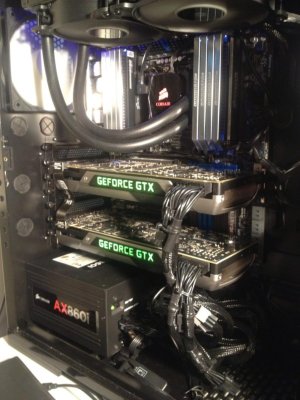

new PSU setup



[pSyKo]

So...I removed 4 RAM and now its fine.
Better have 16GB instead of 32GB instead of having only one Titan, ae!



[FTLN]

Have you tried to update your motherboard's bios ? Also check for beta bios also try and open a ticket with gigabyte support.. You got some great hardware that should be more than capable of being stable with 32gb ram.



[pSyKo]

I have latest MoBo bios F4w (beta) and nvidea 4.20 beta drivers.
I thought the same, MoBo has 8 slots why can't I use them?
I wonder if asrock extreme 11, asrock fatal1ty or asus rampage IV boards have same issue.



[pSyKo]

Maybe gigabyte can release new bios with better ram compatibility



[FTLN]

Get in touch with them and to speed things up I also always make a hint of posting my problem on there facebook page.. Other users may be having the same problem and will respond to you. Also you have the Gigabyte official forum http://forum.giga-byte.co.uk/ for support



[pSyKo]

Cheers mate
Will do



[kilobravo]

You need to tweak vccsa and vccio with all 8 ramslots occupied and vcore may need a little boost too.



[pSyKo]

@kilobravo
What sort of incriments are we talking here?
I'm new to this OC business.
CPU and GPU are stock speeds and voltages.



[kilobravo]

If you could make a screenshot in bios of your settings,using the F12.



[pSyKo]

Ok
Can't tonight tho but thanks heaps



[pSyKo]

Ok...been busy excuse late reply.
Tried f12 can't paste in win7 and no idea where screenshot went if saved somewhere.
