Help Please please please

[leejc73]

I've got a maximus formula fitted in a CM 690 II, it's got every block going on it VRM/SB/NB, CPU and GFX.

Routing of hoses is blowing my mind, I'm running 2 x 240 rads and a Laing DDC with XSPC res top.

Can I figure out a way to hose it up tidily, can I hell as like.

So far i've got res/pump-top 240mm rad-top vrm-left vrm-cpu-NB-gfx-SB-bottom 240 rad-res

That's about the best I've come up with but I'm not even sure i'll get hose between the top and left vrms..........................Arghhhhhhhhhhh



[ruthless_villain]

Pics plz?



[leejc73]

You'll have to imagine the VRM's are in place cos i'm waiting for delivery.

See better quality pictures in later post.

The VRM's coming are Watercool HEATKILLER® SWX-A1's

And the NB Block is being swapped for an EK-NB S-MAX



[magicc8ball]

What gpu are you running?



[leejc73]

It's a Gainward GTX 260 216 GS. I've got some better pictures coming when I can find my camera lead.



[SparkleDJackson]

i have a rIVe with mobo blocks on it. the thig was i nightmare to get piped up. draw everything out on a map first and work out where you are going to need straight 90s 30s 45s 60s and rotaries. i did this and still forgot about fill and drain ports lol. another thing i wouldnt have been able to get anything together without extenders i got 6 10mm male female extenders and i found them to be essential. the knurling on them is insane though. ripped me to shreds. but yea get your angles and extenders planned and you should have no problems. apart from bleeding hands



[leejc73]

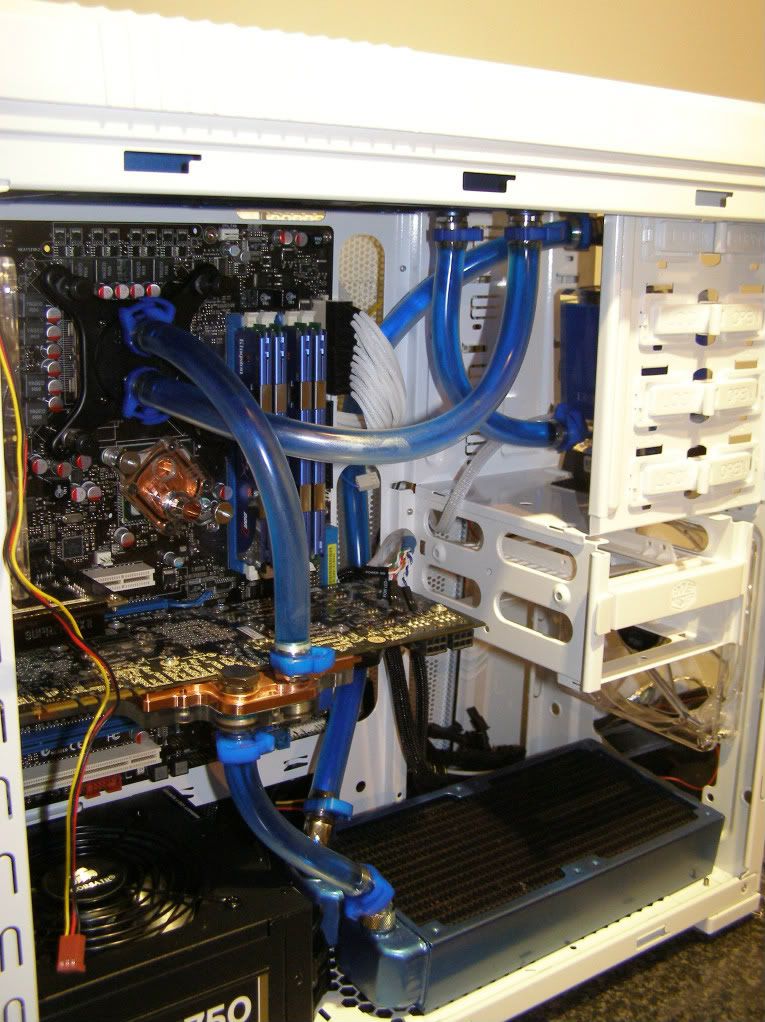

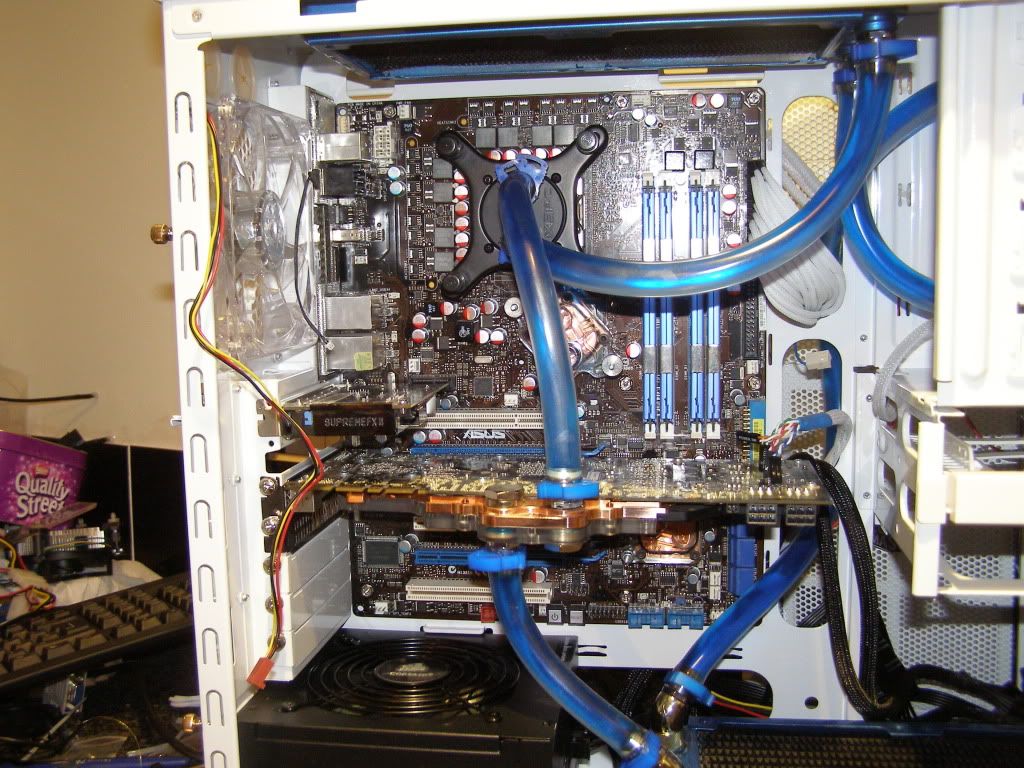

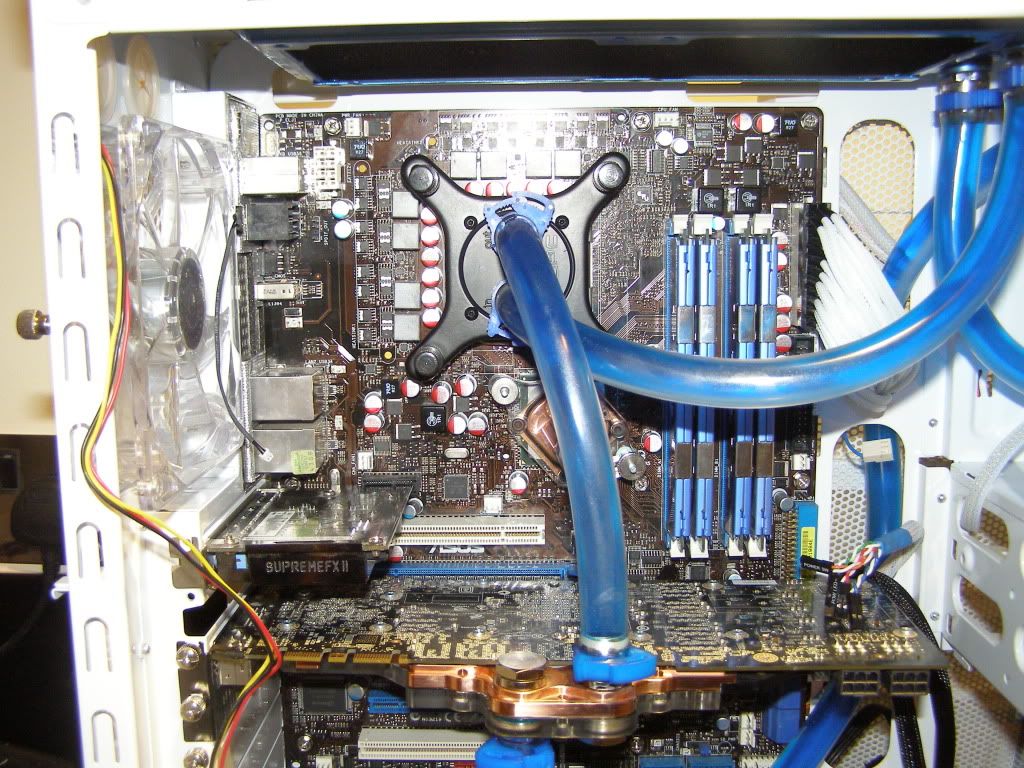

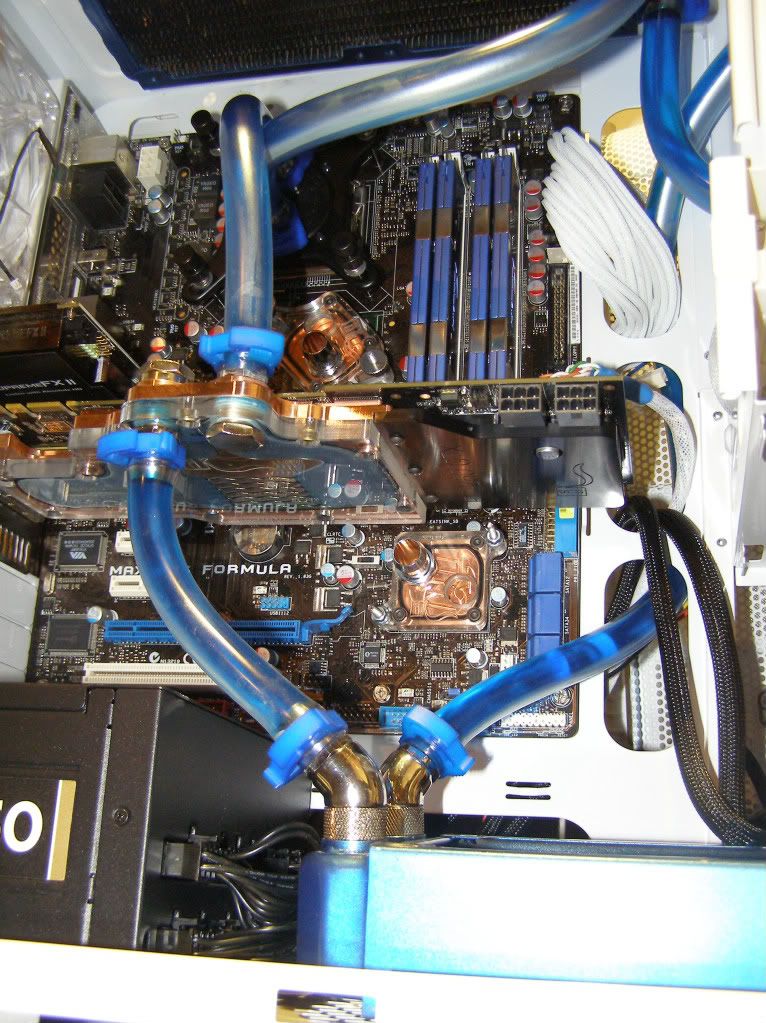

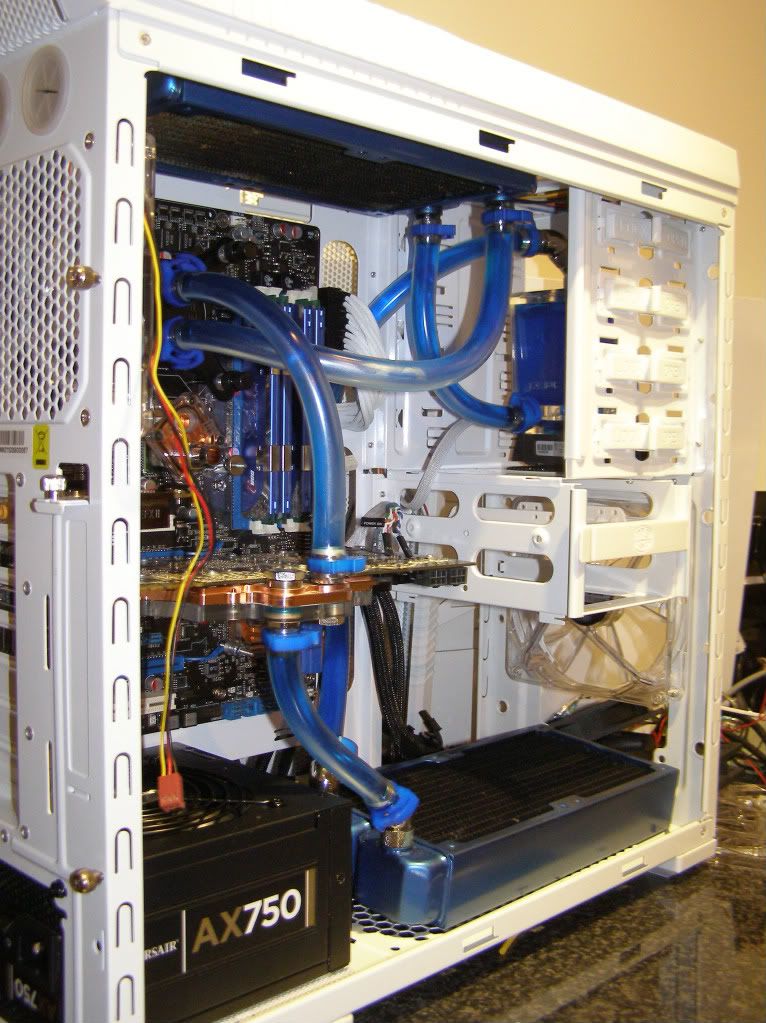

Ok I've got some better quality pictures now, you can see the bare VRM's but the holes where they mount are apparent the barbs are about 25% inward of the distance between the screw holes.

I want to go CPU/NB/VRMs/GFX/SB but it would be a complete buggers muddle on the tubing so think it's going to have to be as I originally thought, but the distance between the VRM's is going to be a complete mare!

Photobucket won't save the corrected rotation on this last one.

Ever wonder why you start something???
