To Silverstone Strider / Zeus Owners - Help!

[retrogamer1990]

Help seriously needed!

would anybody be so kind as to take a picture of each end of the modular 24 pin atx cable, as I fear I have wired it up wrong, and don't want to try it until i am sure! i have a spare wire after sleeving and no spare holes! :damn:

thanks!



[sammjj]

Help seriously needed!

would anybody be so kind as to take a picture of each end of the modular 24 pin atx cable, as I fear I have wired it up wrong, and don't want to try it until i am sure! i have a spare wire after sleeving and no spare holes! :damn:

thanks!

why don't YOU take a photo and we'll see?



[retrogamer1990]

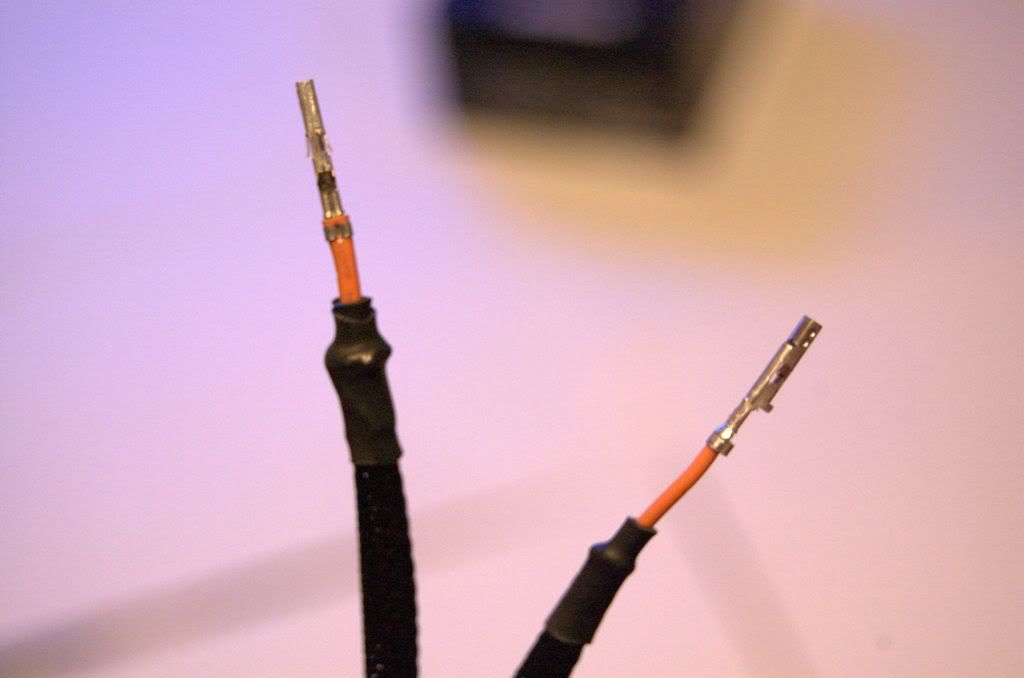

2 wires remaining after sleeving

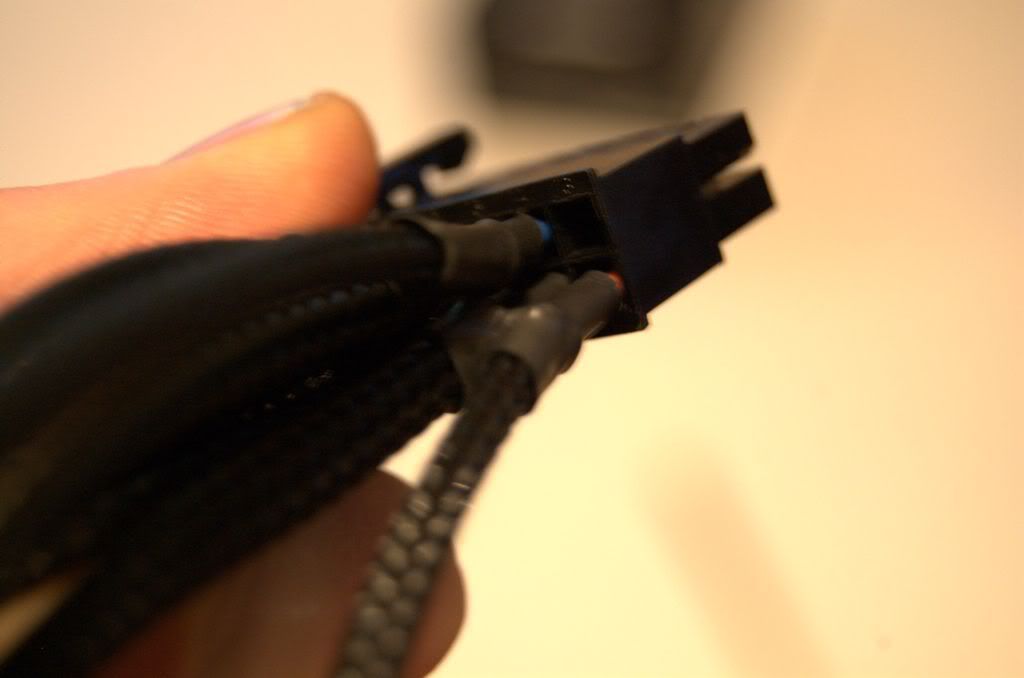

2 wires coming from one socket

just one hole!

this is my problem



[sammjj]

could you take one facing down on the wires and the header like this....

|||||||||||||||||||||||||||| - wires

---------------------------- header (plastic thing)

----------------------------

both sides, just so we can see what is there, what should be there and what isn't



[retrogamer1990]

okay here we go.

you are gonna get so much rep! :worship: thanks BTW,

I pulled back the sleeve a little so you can see the wire colours,

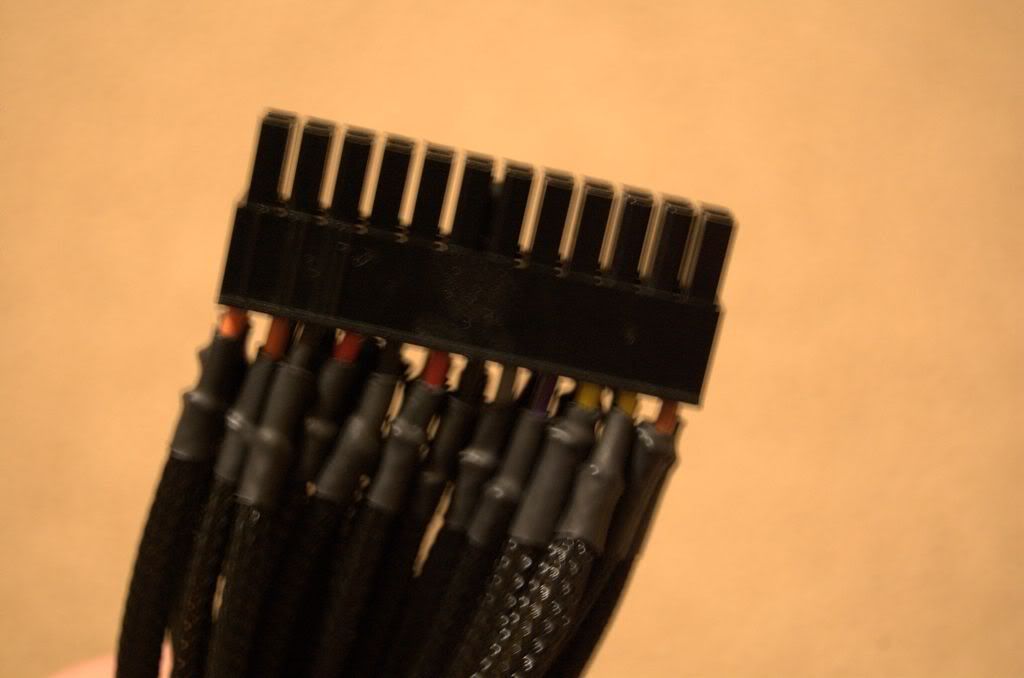

side with connector

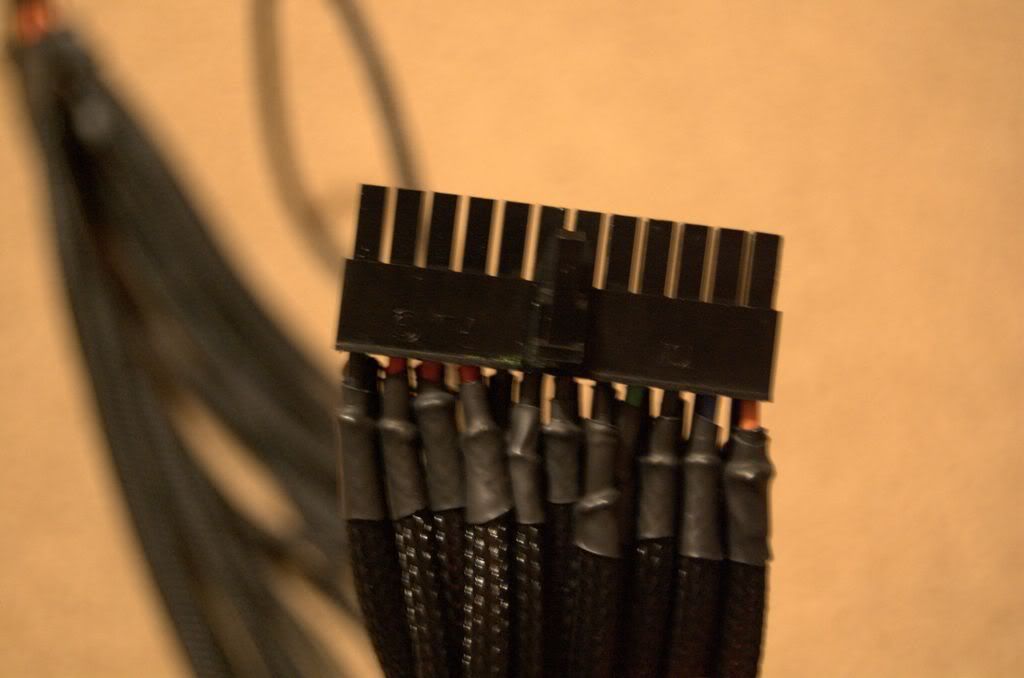

other side

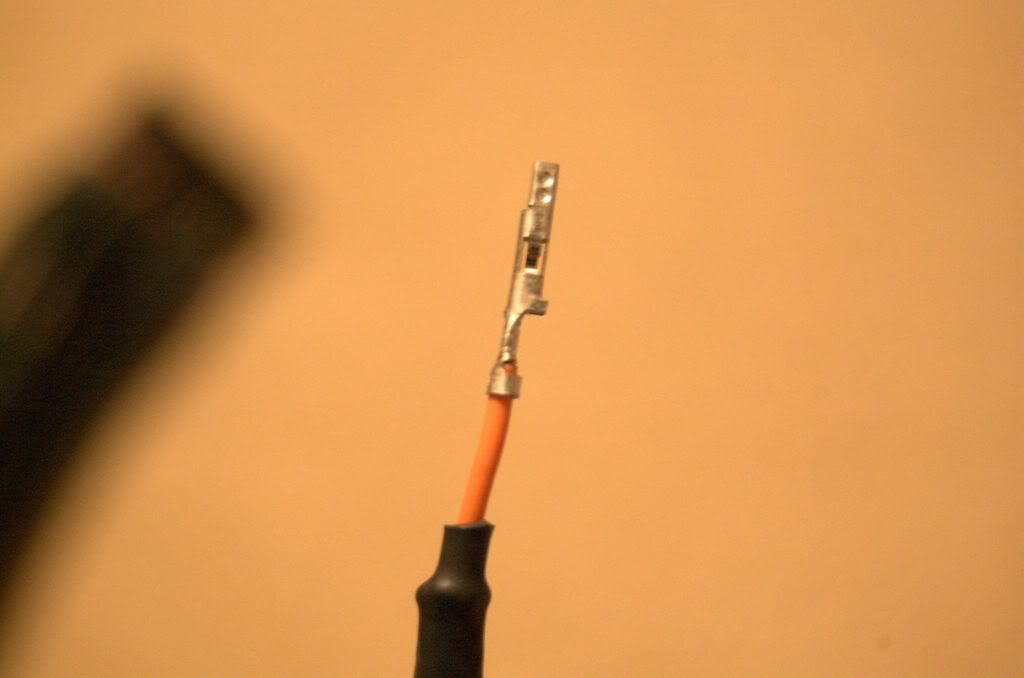

extra wire?



[Ham]

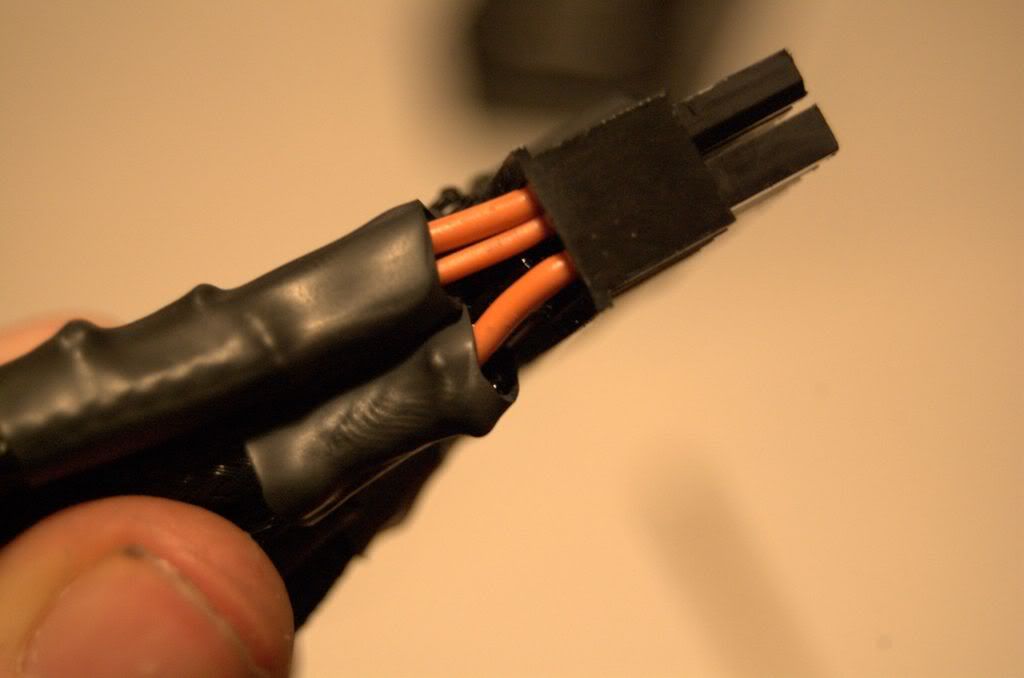

There are 2 wires going into 1 hole. pic to come...



Click (Due to it being a rather large pic...)



[retrogamer1990]

There are 2 wires going into 1 hole. pic to come...



Click (Due to it being a rather large pic...)

appreciated dude. rep+. but i dont see how i can do it since each wire has an atx pin on it? is there any chance of you taking a pic of the other end of the connector? you'd get MORE rep!



[monkey7]

I have never sleeved a cable like that (or at all, actually), but might this help?:

EDIT: Hmmm when looking at it... The pattern doesn't seem to be matching Ham's pic :/

EDIT2: Oh wait it is, I'm just too tired to notice.



[retrogamer1990]

I have never sleeved a cable like that (or at all, actually), but might this help?:

EDIT: Hmmm when looking at it... The pattern doesn't seem to be matching Ham's pic :/

EDIT2: Oh wait it is, I'm just too tired to notice.

yeah i already looked at one of them, it does match. but thanks anyway dude. rep+.



[Ham]

Have you sleeved the 20-24 and 24-24pin cables?



[retrogamer1990]

Have you sleeved the 20-24 and 24-24pin cables?

just the 24 - 24



[Ham]

Hmm, as far as I can see on my cables the 24-24 pin has two wires coming out pin 1 (using the diagram posted, left side going 1-12 down, right 13-24) form the PSU end and going into pin 1 on the mobo connector end.

However the 24-20 pin has pin 1 & pin 12 on the PSU end connected to pin 1 alone on the mobo end.

So double wire/single plug both ends on the 24-24pin cable and double wire/single plug on one end and single wire, single connector on the other. If that makes any seance...

But I guess you haven't touched the 24-20 pin cable?

Fraid I cant get a pic as there's too many other cables in the way and I've not got 8 hands.



[monkey7]

You really don't have eight hands? Is it special to have eight hands then?

I'm going to make some pics for short reviews of my external HDD and titanium USB stick, will try to get a 360* view of my 24pin connector in the process.



[sammjj]

just to let you know, i am clueless
