Hello OC3D! I'm back with some build, but now its not anymore a client build, this time it will my own build, Called Project Red Dragon this build will be a ITX build

A Very big shoutout to MSI for sponsoring me with this build




they have sent me a

MSI z97i AC gaming motherboard

and a MSI GTX 750 TF

that for the mother board and GPU

for the CPU im still waiting for the Intel Pentium Anniversary edition to arrived in my place (PH) hoping for it in the comming days

for now I have bought a cooler/ liquid AIO but a touch of class

its the Cooler Master Eisberg 240L

I also changed this fiitings, ill be using rigid acrylic tubes on this

some testing

for the case, I will be using a Cooler Master Elite 120, ) will upload pics later

rams -> depends on what is available locally
PSU -> will be getting silverstone 500w fully modular (Sleeving it red / black)


UPDATES

http://forum.overclock3d.net/showpost.php?p=776760&postcount=2 August 6
http://forum.overclock3d.net/showpost.php?p=777773&postcount=9 August 9
http://forum.overclock3d.net/showpost.php?p=778030&postcount=11 August 10
http://forum.overclock3d.net/showpost.php?p=779353&postcount=13 August 13
http://forum.overclock3d.net/showpost.php?p=780037&postcount=14 August 14
http://forum.overclock3d.net/showpost.php?p=780663&postcount=19 August 15
http://forum.overclock3d.net/showpost.php?p=781509&postcount=24 August 16
http://forum.overclock3d.net/showpost.php?p=782145&postcount=28 August 17
http://forum.overclock3d.net/showpost.php?p=782445&postcount=32 August 18
http://forum.overclock3d.net/showpost.php?p=783249&postcount=33 August 20
http://forum.overclock3d.net/showpost.php?p=784066&postcount=36 August 22
http://forum.overclock3d.net/showpost.php?p=788003&postcount=36 Sept 2
http://forum.overclock3d.net/showpost.php?p=788336&postcount=40 Sept 3

FINALS PICS

with a powercord, lol

"Red Dragon"

things at the back, still some space for rent

My favorite pic



[renaire33]

Got some pics of the case before it will be under operation



[renaire33]

test fit motherboard before whacking the case

After whacking the case, (Removed HDD tray)

thanks for dropping!



[truesilax]

you gona time travel with that? where did you get those parts? but nice you get 50 im jelly points, i just skimed all of youre post how much did it cost?



[renaire33]

you gona time travel with that? where did you get those parts? but nice you get 50 im jelly points, i just skimed all of youre post how much did it cost?

i did not get clearly your message mate the board and VGA are sponsored by MSI



[truesilax]

like i said i just looked at words i didnt read them, so it was free to you thats an other 100 im jelly points that you can trade in for f.u rewards jk just joking so what youre relationship with msi?



[renaire33]

like i said i just looked at words i didnt read them, so it was free to you thats an other 100 im jelly points that you can trade in for f.u rewards jk just joking so what youre relationship with msi?

we have a event in PH and they sponsored me with this build



[truesilax]

hope you have a good time i would be happy just to build somthing like that.



[renaire33]

hello OC3D just some photos of the HW

MB & VGA by MSI

and my newly bought intel pentium G3258

By the way, I will be going full scratch on this build )

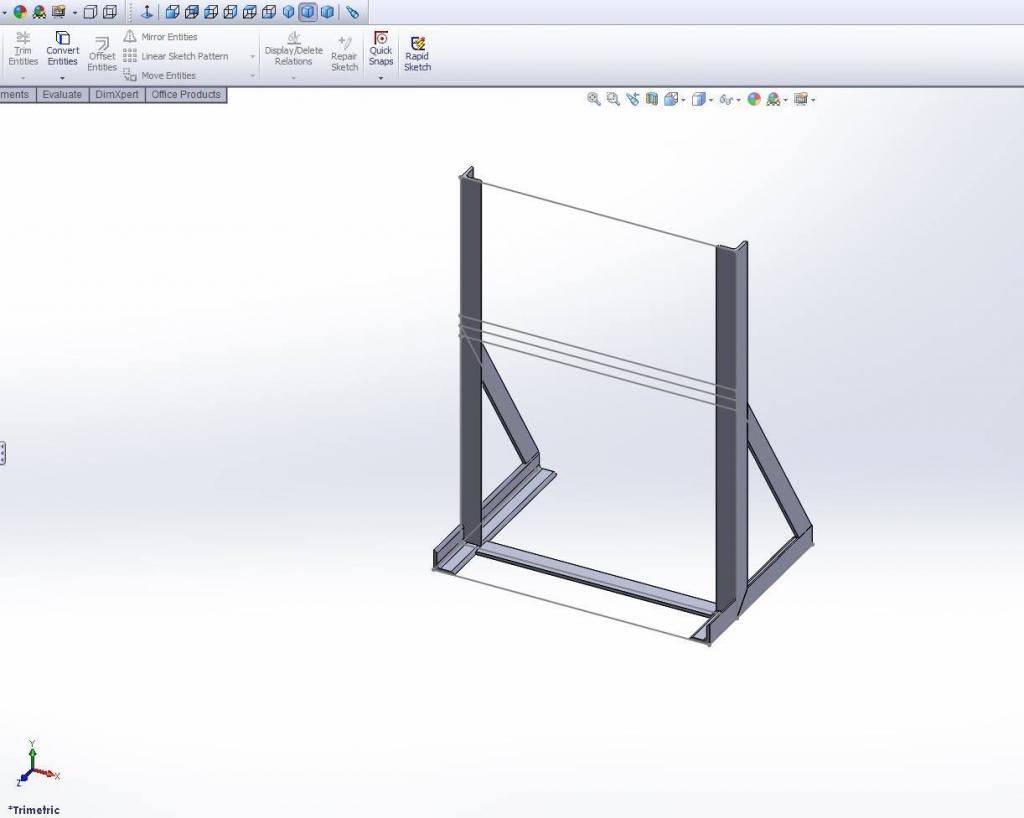

here is the model made by my brother on solidworks



we will be using 1"x1" angular iron and 1" iron flat bar, i will be posting pics once i got these metals )

thanks OC3d



[Innocent159]

This are going to be fantastic the Red Theme . Can't wait



[renaire33]

got the stuffs yesterday

angular steel bar

flat bar

began to cut the steel with some help of my brother

we did modify the frame a little bit from the design

he also did the welding works

after some welding and grinding, turns out great

testing with some plexi

thanks Oc3D

RL2Modz



[GadgetGarrett]

I'm very interested to see this develop!

Great stuff.



[renaire33]

little update on the stand itself

fully wielded and grinded the edges



[renaire33]

hello, some updates today, been busy with work, so decided to wake up early in order to work with this project, used only jigsaw for cutting the 5mm acrylic

manage some progress with the custom reservoir i will be making

thanks for visiting



[Wraith]

Very nice, I like where this is going



[sheroo]

Nice progress - its gonna be awesome.



[RadeonHDx]

Ooohhh, scratch build!! Can't wait to see the final product man



[renaire33]

Very nice, I like where this is going

Nice progress - its gonna be awesome.

Ooohhh, scratch build!! Can't wait to see the final product man

thanks mates ) Hoping to finish this before sept 12 )

stay tuned, thanks

------------------

minor updates

created the motherboard and some test fits



[Warchild]

I'm trying to picture that GPU with a sexy bitspower GPU block and blood red fluid flowing through it.



[renaire33]

I'm trying to picture that GPU with a sexy bitspower GPU block and blood red fluid flowing through it.

its one of my plans but,sad to say not enough minerals($$$$$), im only using a eisberg for the gpu, you got is right with the red fluid, been waiting for it along with the fittings and tubes
