Black and Orange Z77 Switch 810

Hello 0c3dr'z,

Been a while since ive done a project log, not very long since ive done a project tho, my apologies


well, ill give you a rundown:

Switch 810-glossy black

3x rads 1-420 and 2 280's... 420 up top and BOTH 240s in the front.

koolance 370 cpu on either my 2700k or my 3570k, unsure which.

ek fullcovers on 2 gtx 670 dcii's

technofront single bayres "eagle"

swiftech 2xddc pump black

32gb mushkin blackline 1866 1.35v

seasonic 860 Platinum psu

orange bitfenix alchamy cables

orange mayhems pastel

mix of orange and black cougar 140mm fans...(have a trick to share on how to eliminate the vibrations when setup in "updraft" mode!!!)

samsung840 ssd 128g mushkin 120g ssd and a plextor m5p 256g ssd....

black 1/2 in fittings......

ohno mobo almost forgot.....ASRock formulaOC Z77



ok....so lets start with the front radiator bank.....fan modding

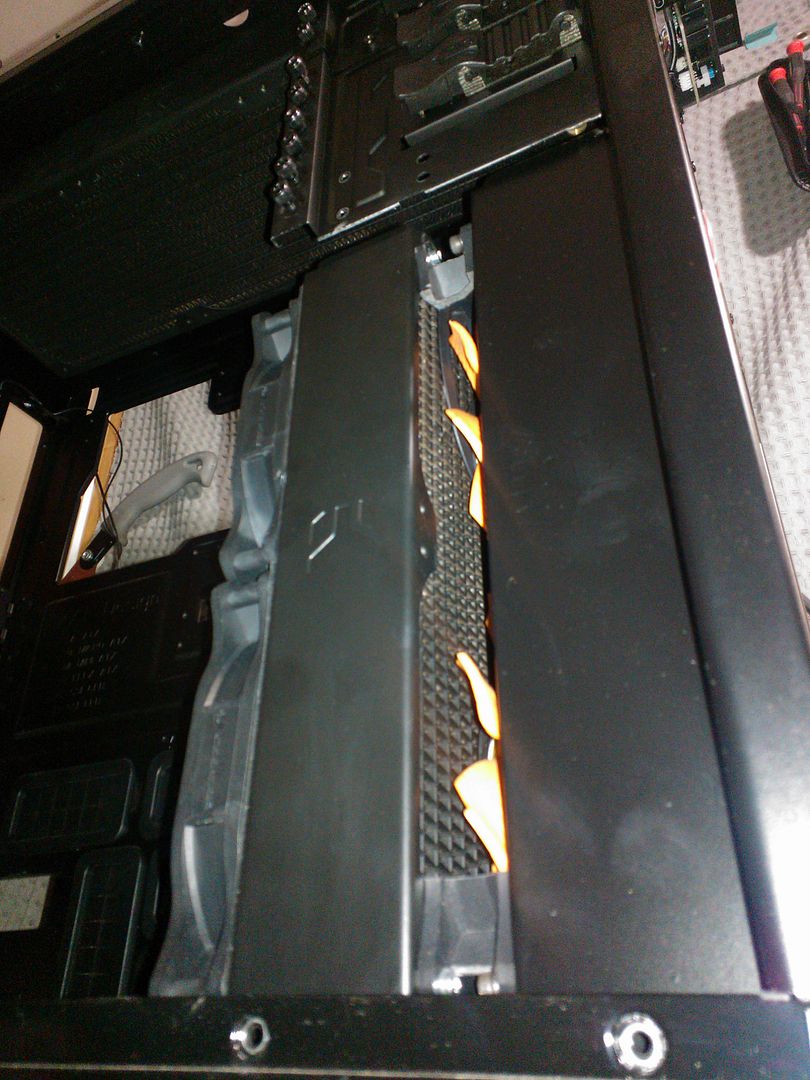

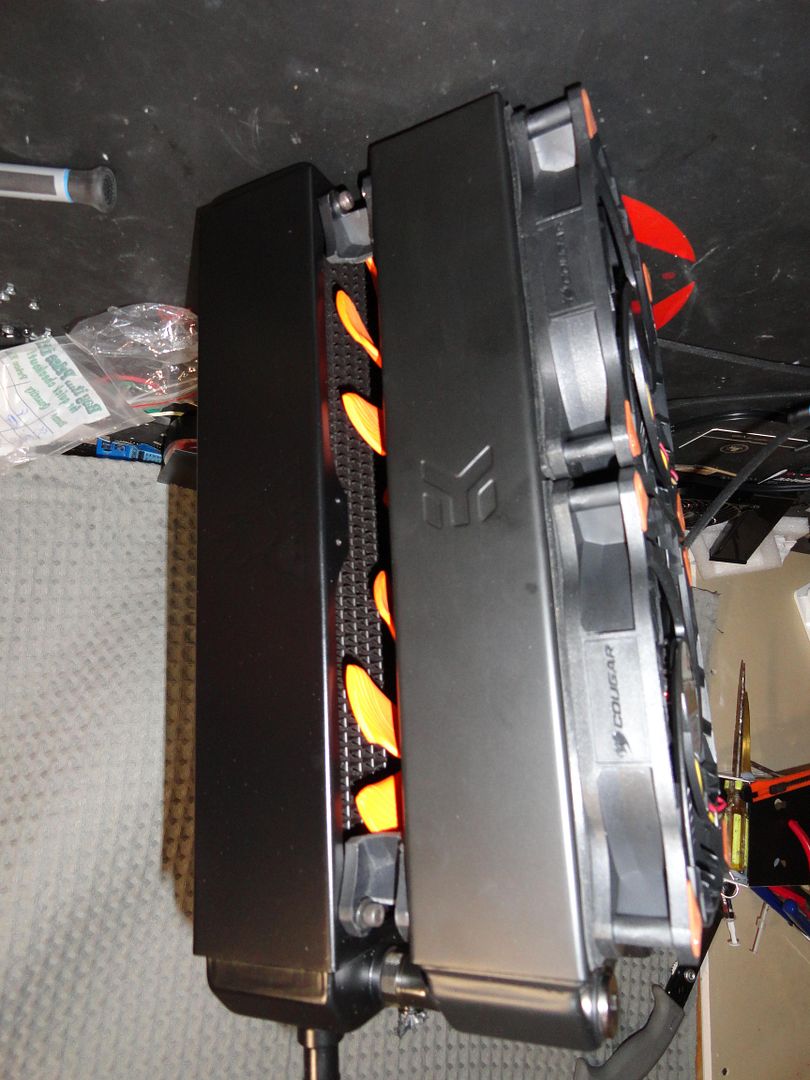

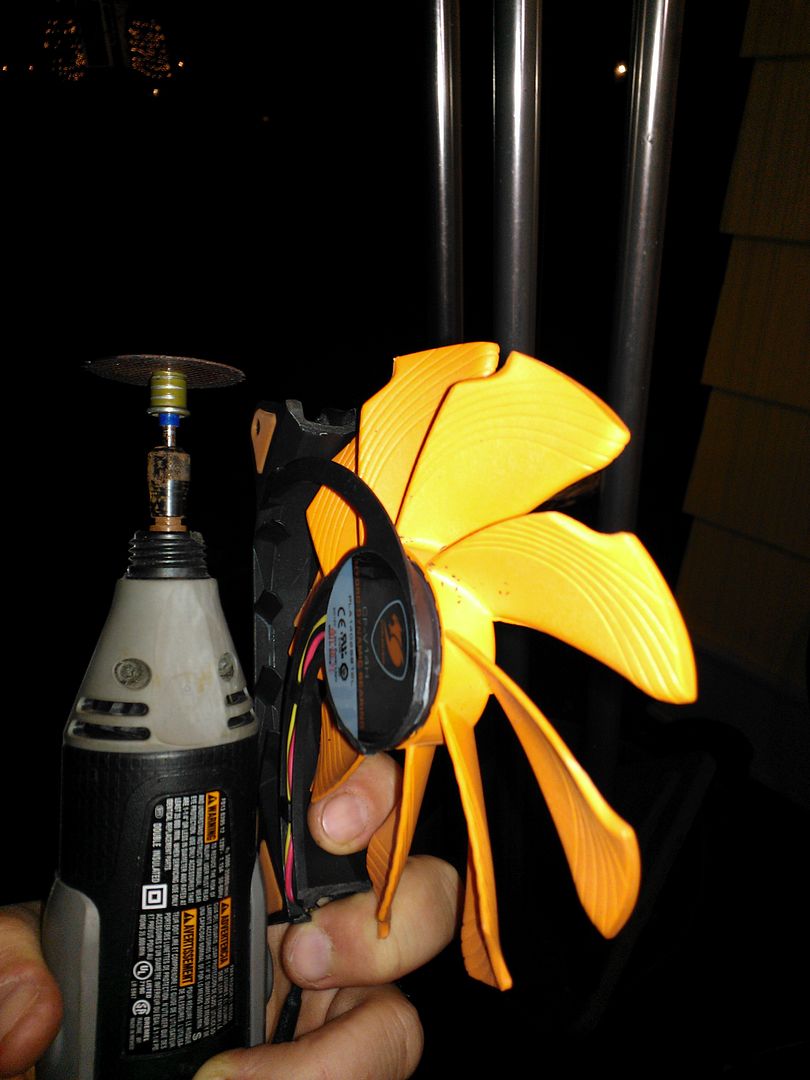

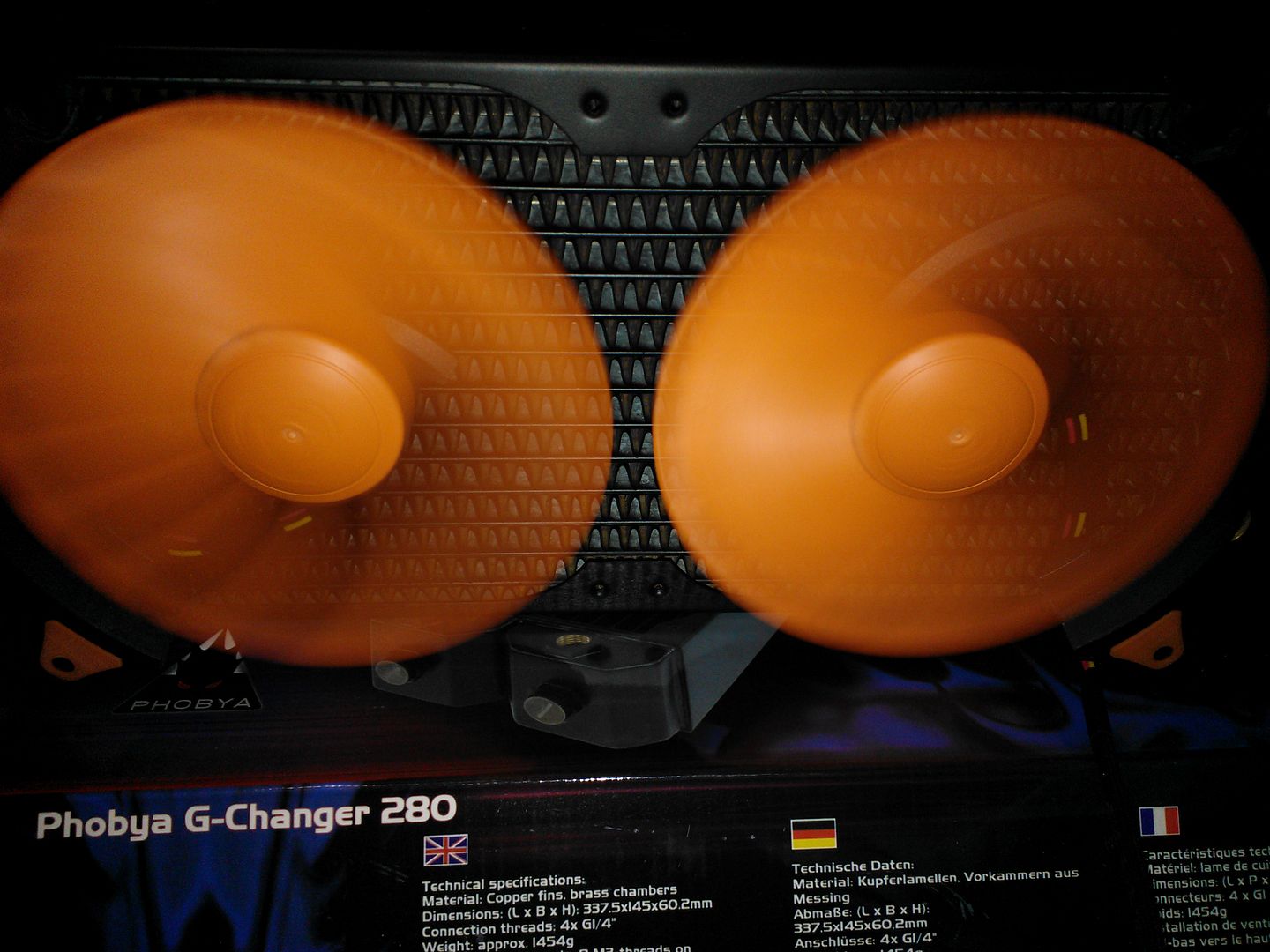

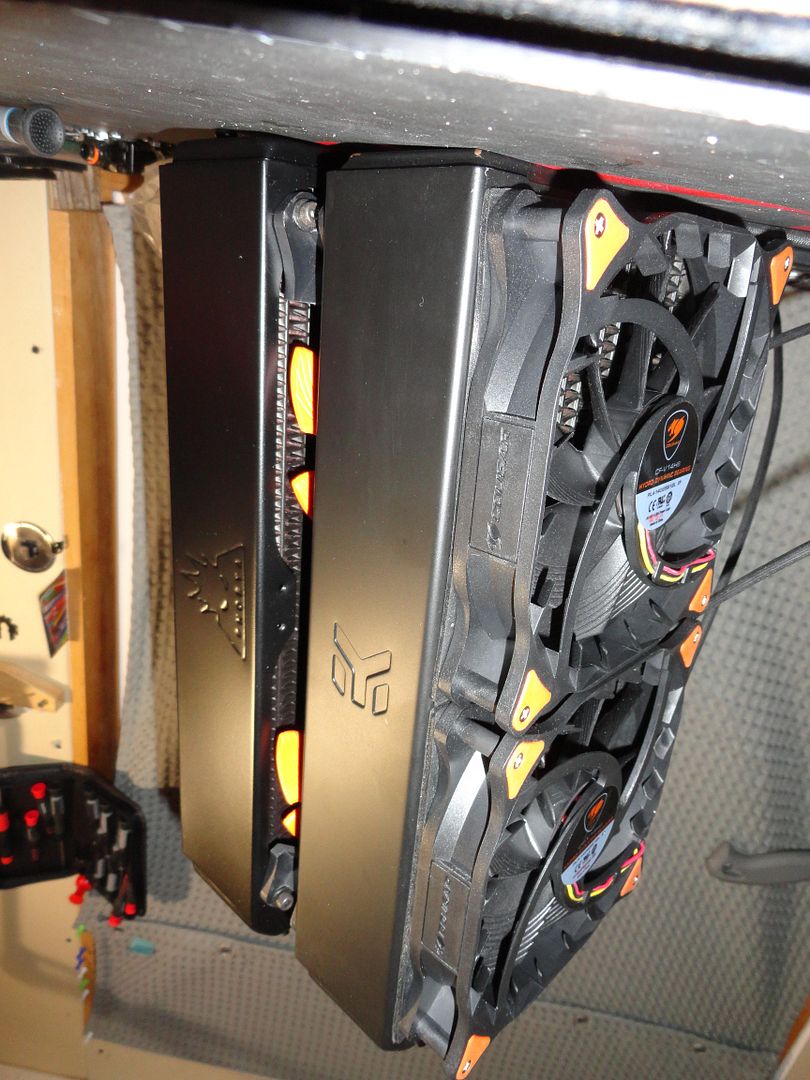

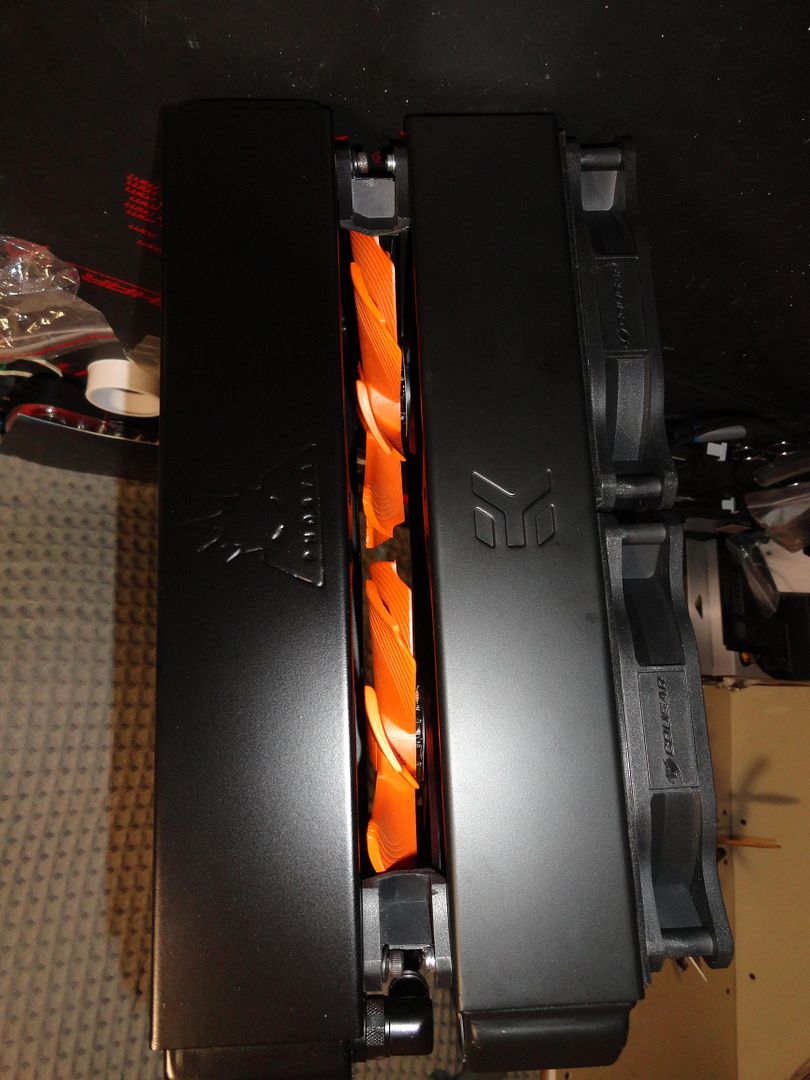

with open fans in the middle im going for a "Zalman cnps12" type setup....enough to move the air through...and actually when all 6 fans spin, the middle set actually seems to pull more air in...wierd






so the sheens are off a 'lil, iknow i know....it's what i had tried to paint it but satin is too glossy and flat

is too flat.....seems like im stuck unless i paint'em all.....

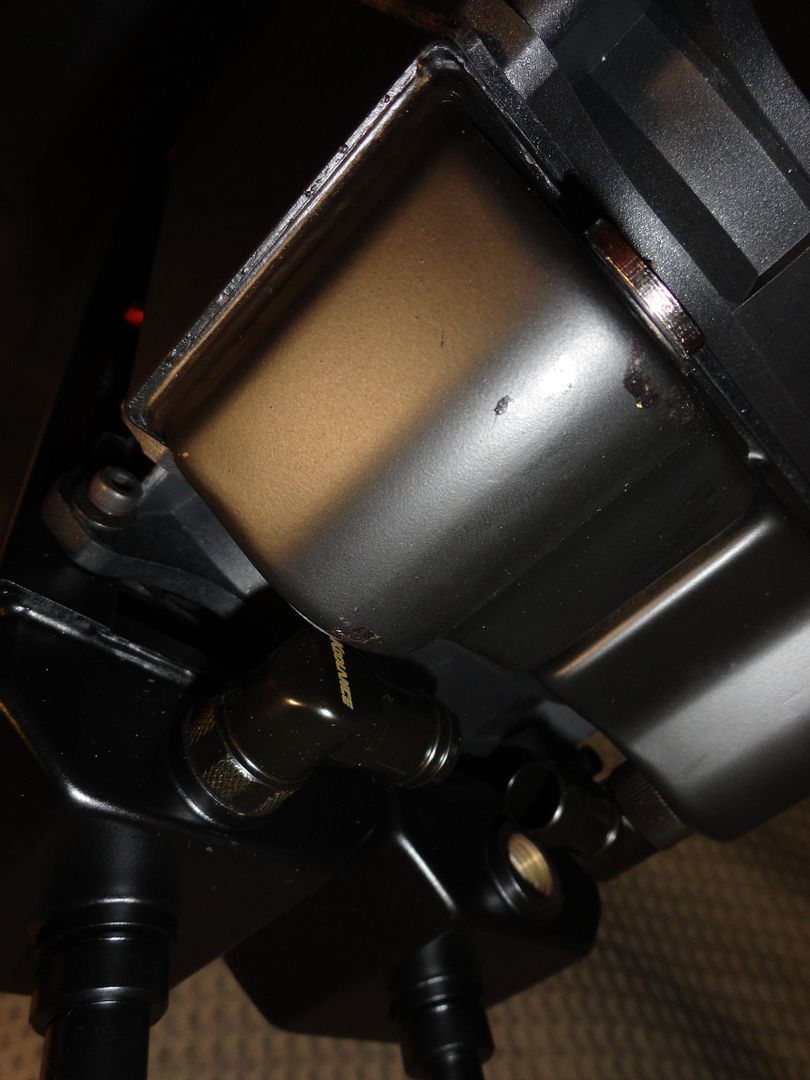

connections dont line up, so direct fit is out, in comes the 90deg rotaries from koolance


case modz.....

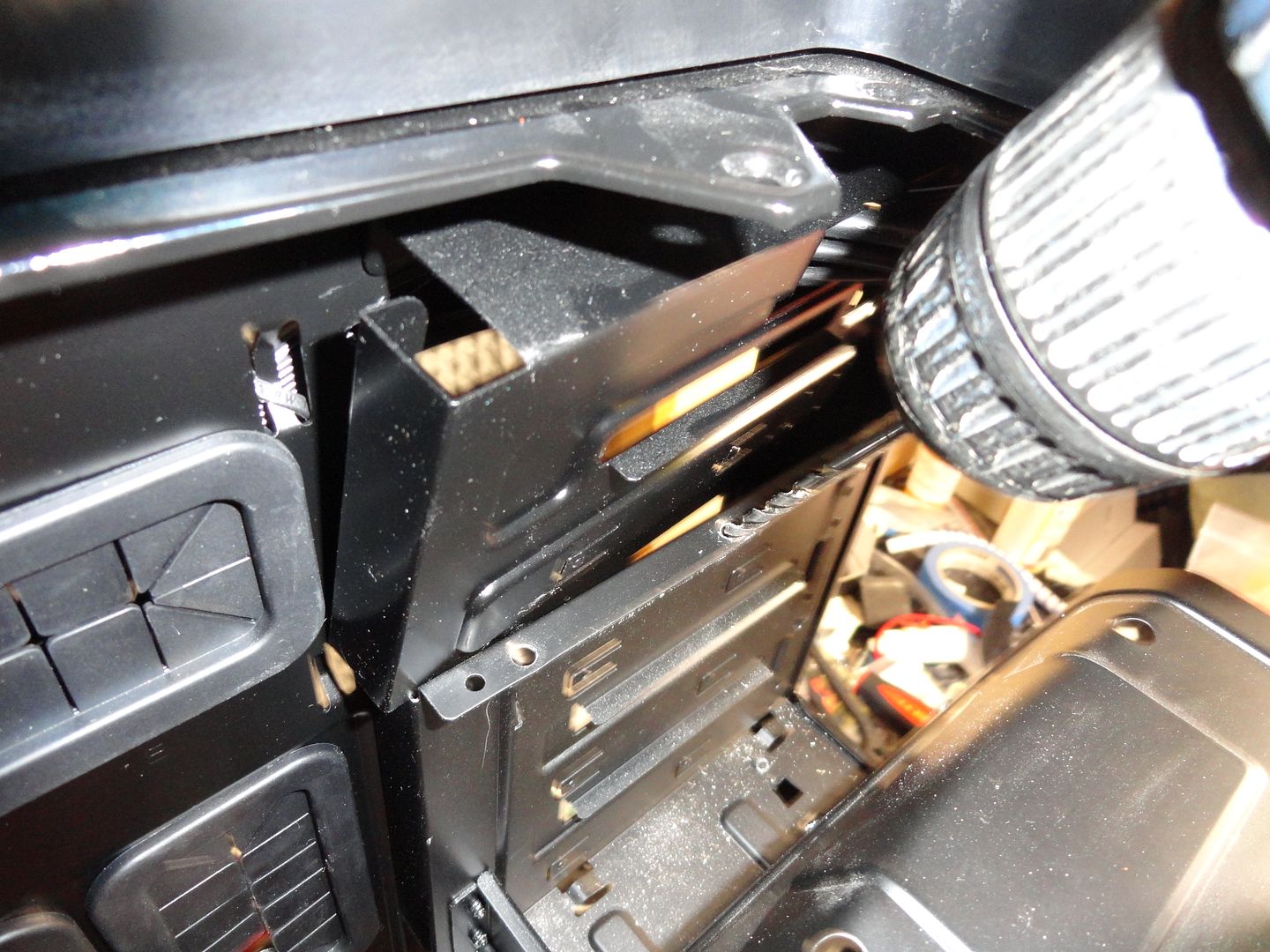

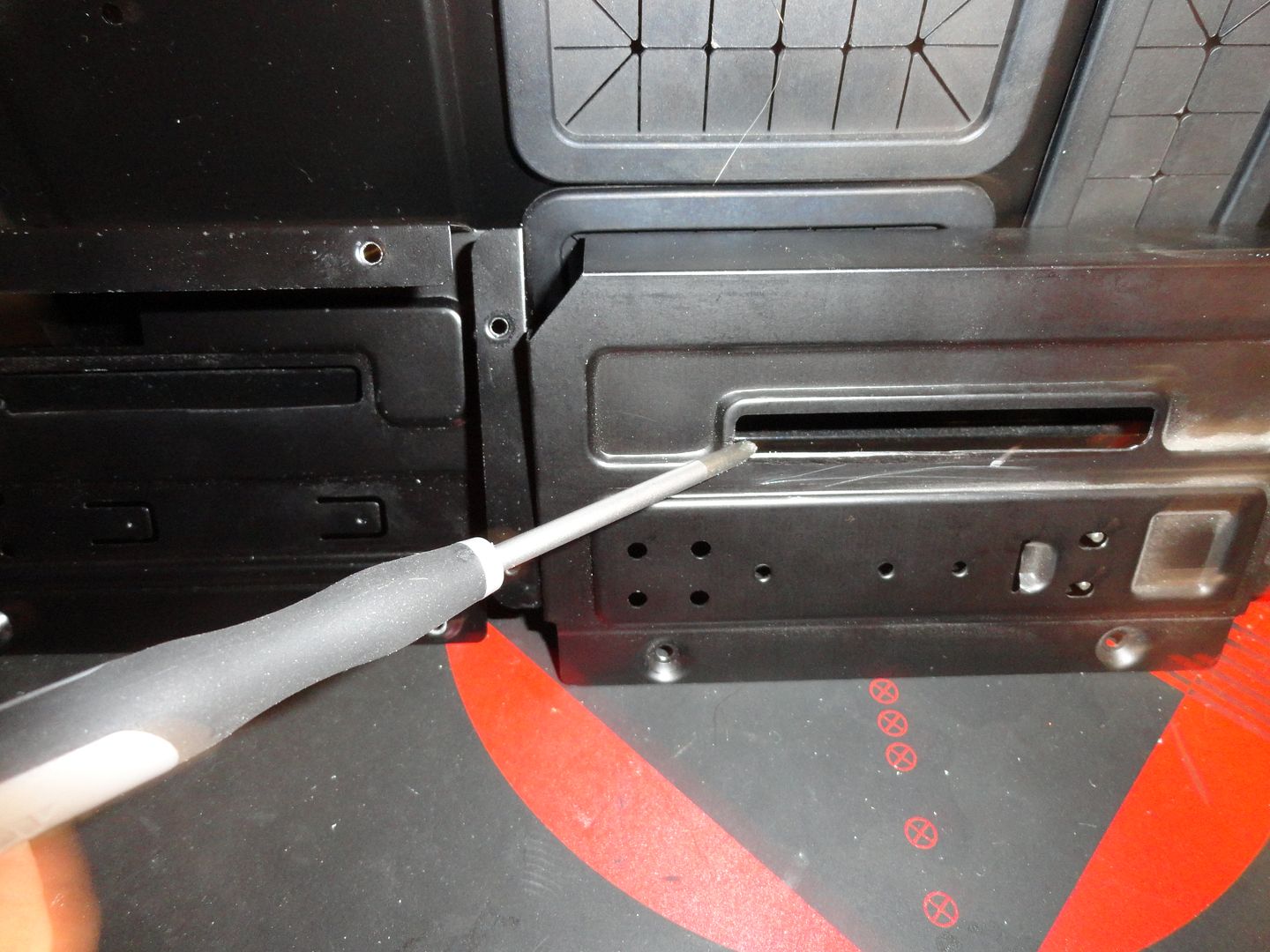

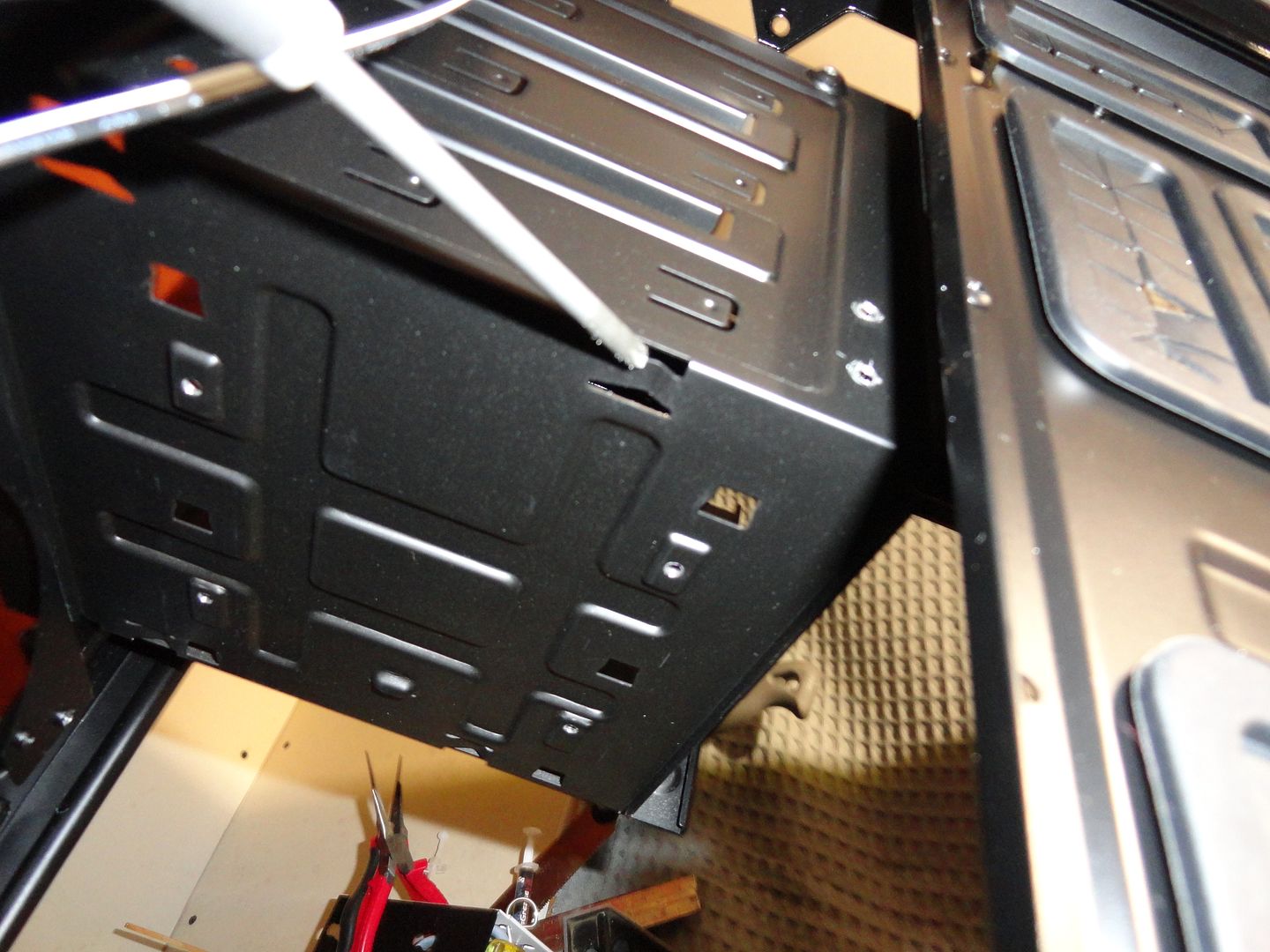

score and snap is my preferred method of op....


lil sandpaper and that'l'do

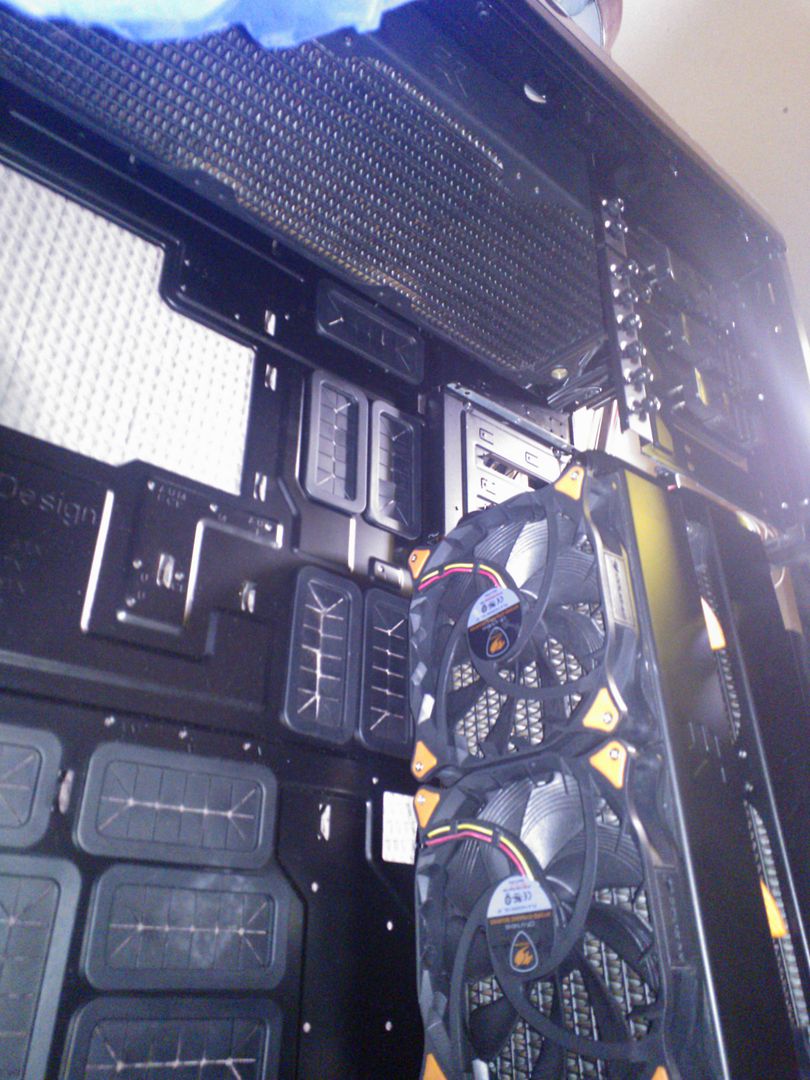

remove the top 5 1/4 vertical guides

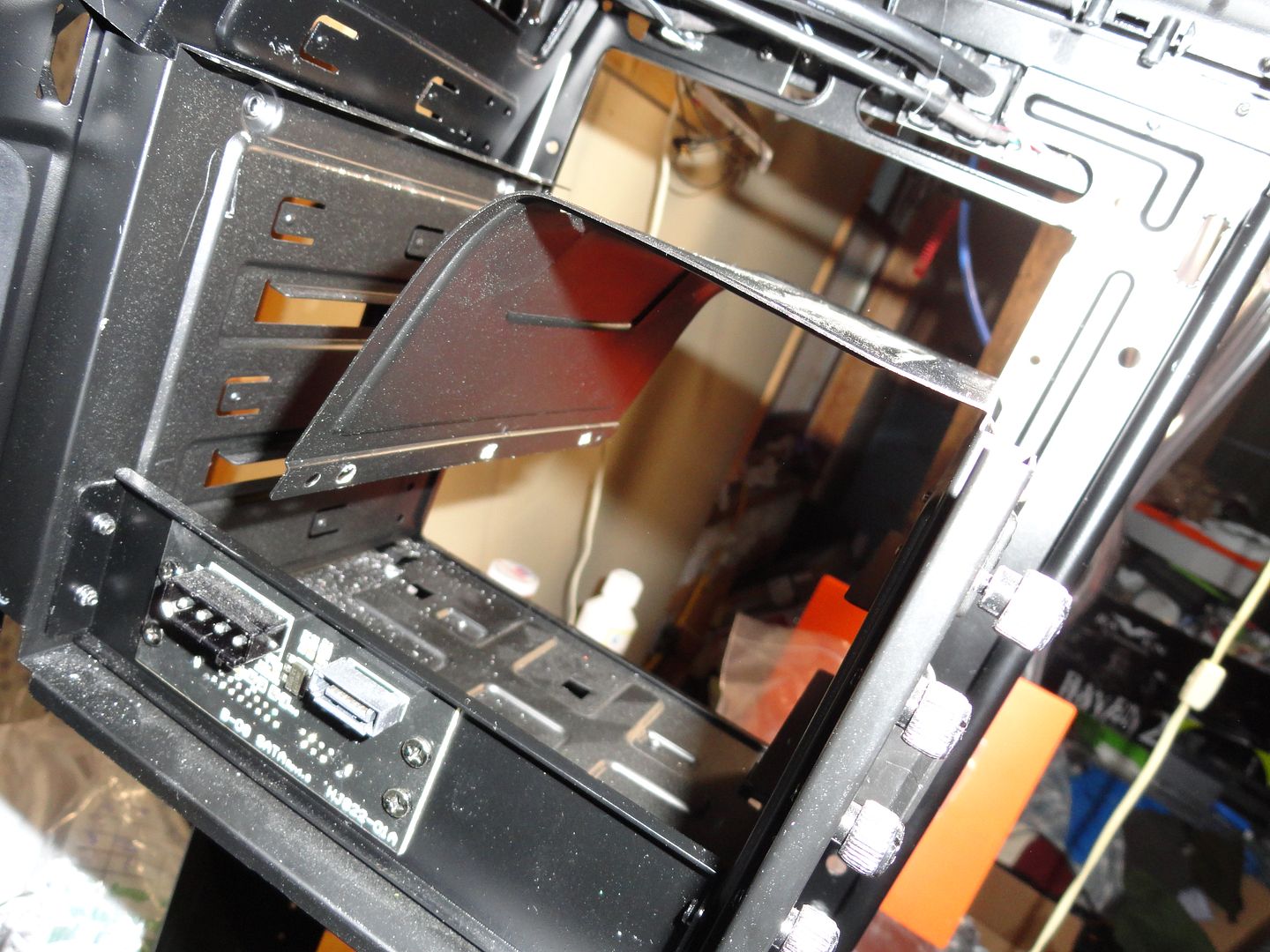

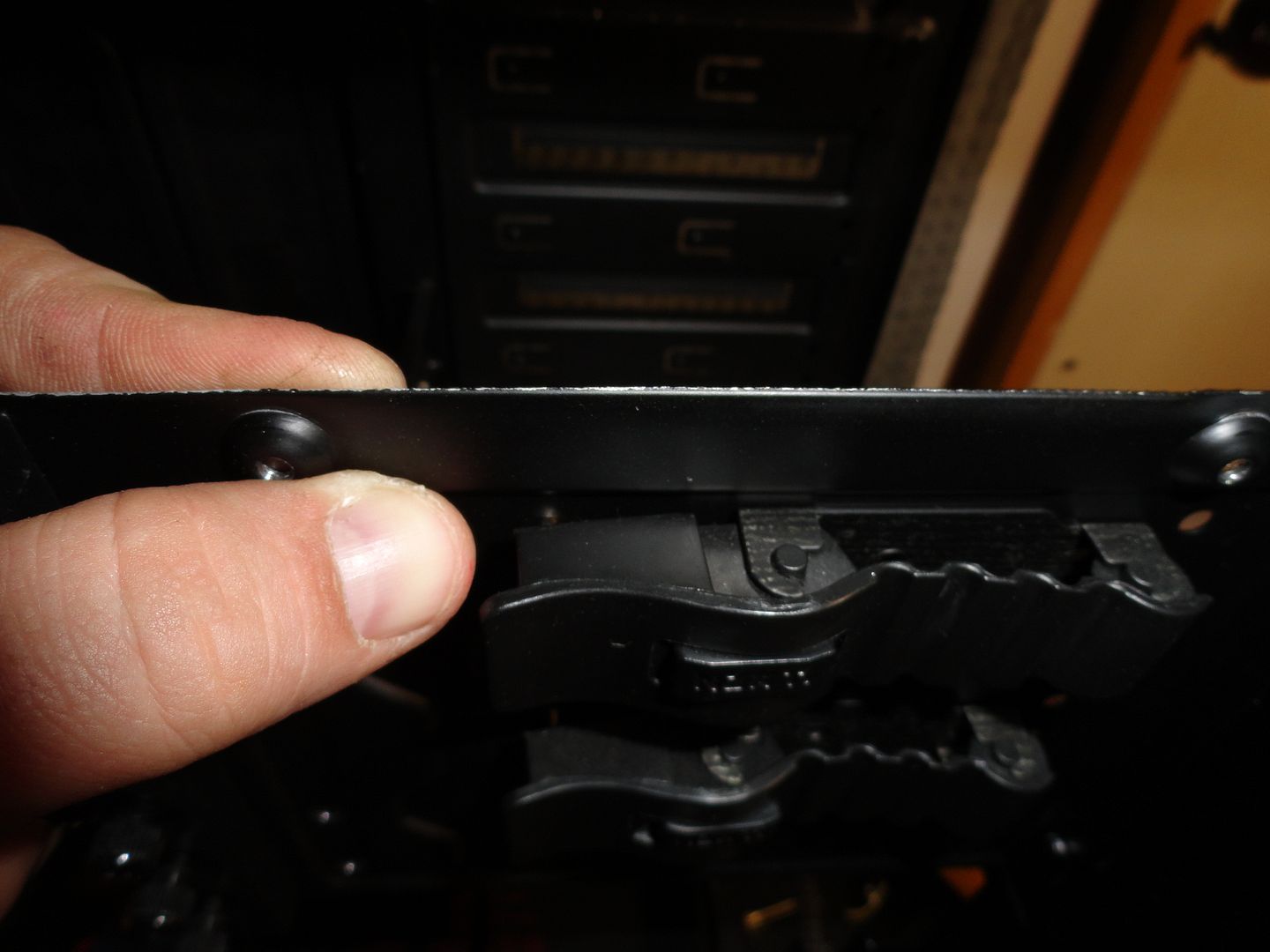

and the botom of the 5 1/4 bay.....

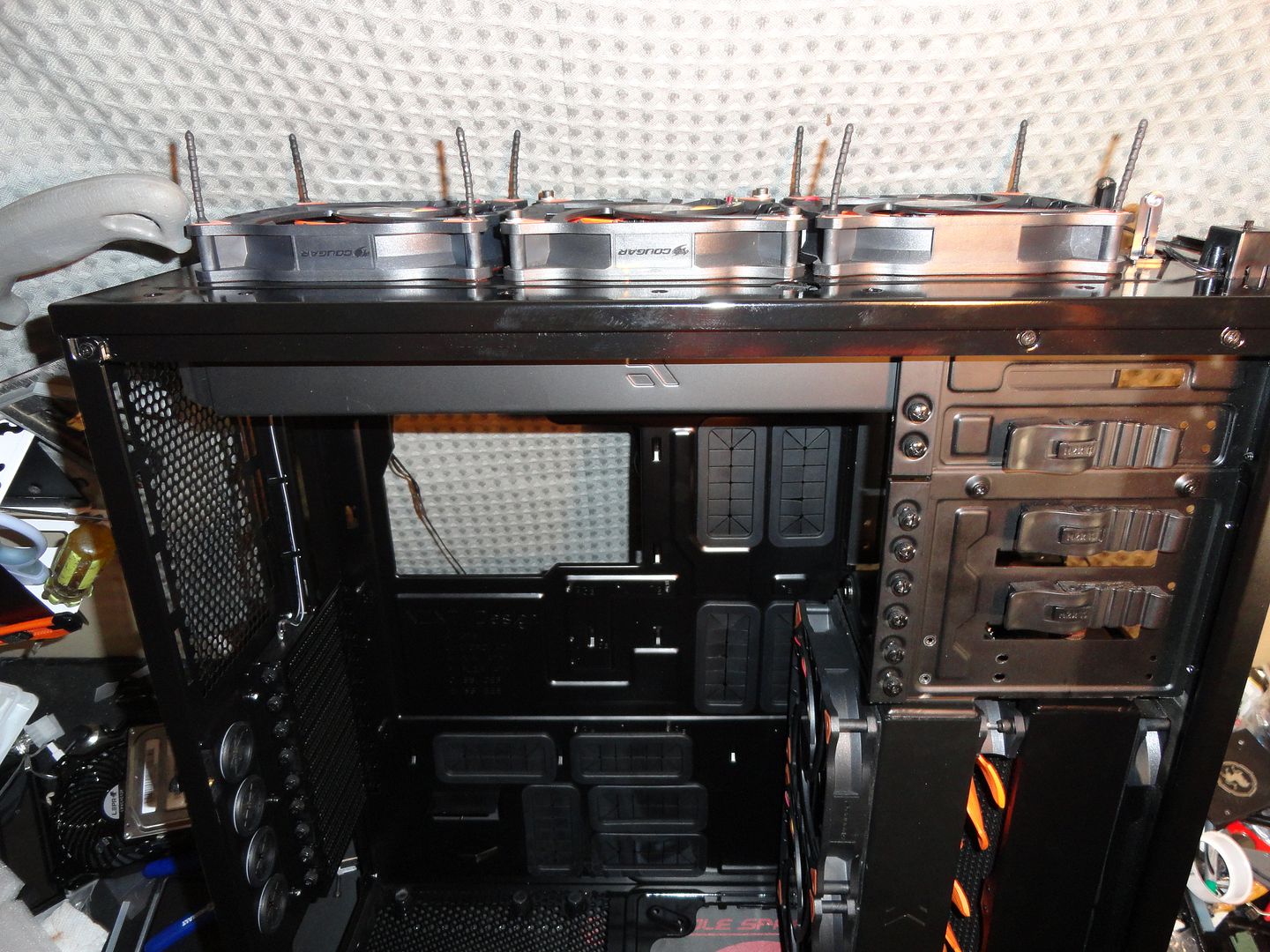

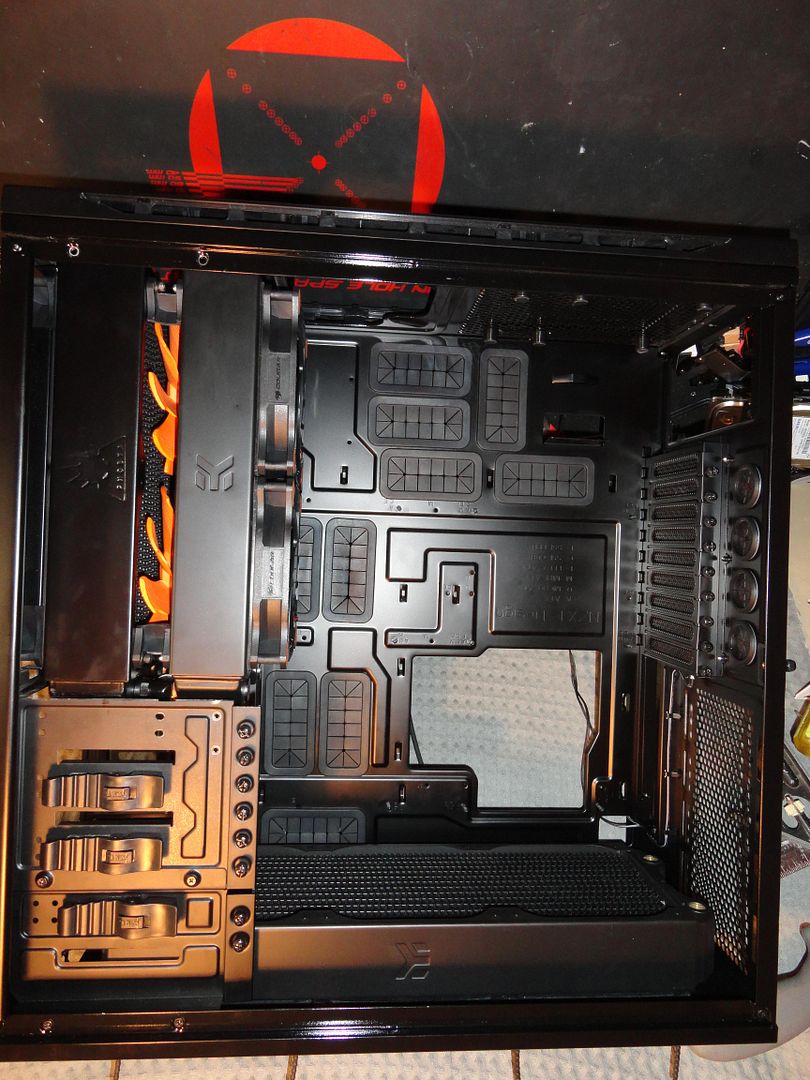

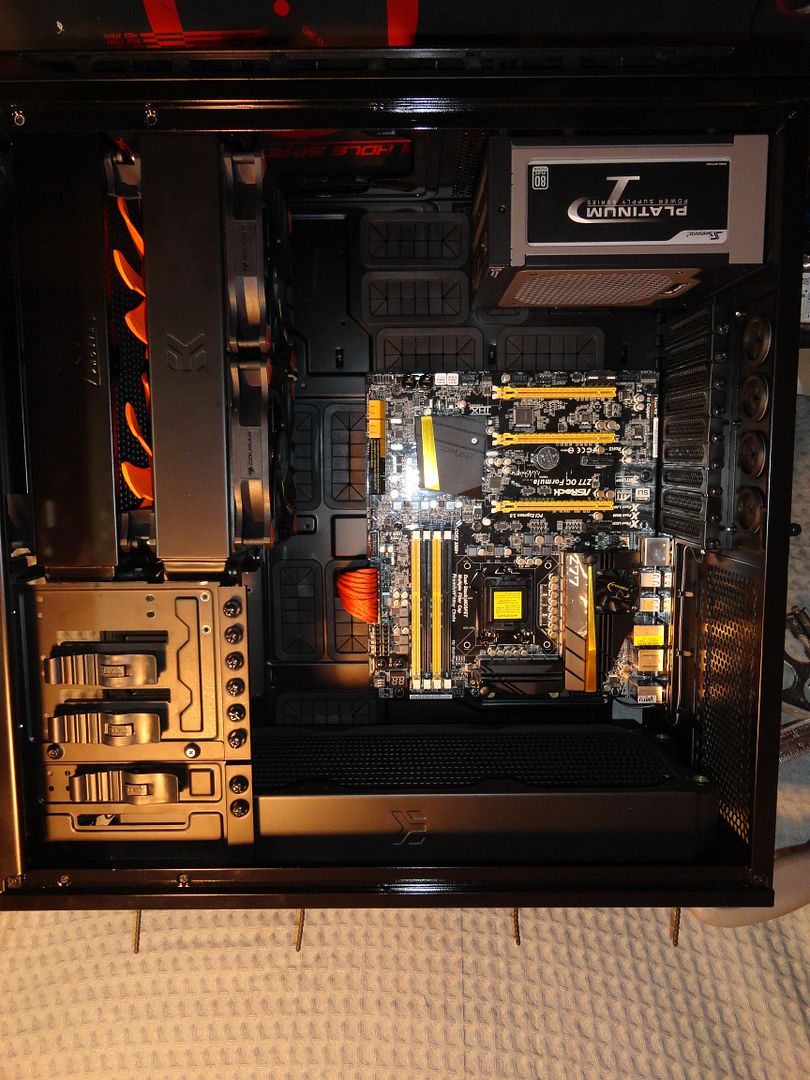

and i can finally mount the rad bank!!!





ill post some more tomorrow ill leave you with a messy shot.....




ahhh....couldnt wait





thanx for watching
bTx

__________________

http://3dmark.com/3dm11/2716743 highest 2500k+560Ti SLI TO DATE!!!
Reply With Quote
  #2
Old 11-12-12, 07:28 AM
Choklitmlk's Avatar
Choklitmlk Choklitmlk is offline
Member

Join Date: Jul 2012
Location: NZ
Posts: 174
looks like an interesting project... i look forward to seeing it progress
__________________
--> Check out my mATX mod watercooling build <--
3770k @ 4.5GHz * Maximus V Gene * 2x GTX670 4GB @ 1.02GHz
Ripjaws Z 4x4gb @ 2133MHz * 2x256gb 840 pro * 750gb Black
AX750 * custom water cooled * modded Define Mini

Intel - Asus - EVGA - G.Skill - Corsair - Samsung - Western Digital - EKWB - XSPC - Fractal Design
Reply With Quote
  #3
Old 11-12-12, 08:23 AM
Ross_Kirkbright's Avatar
Ross_Kirkbright Ross_Kirkbright is offline
Member

Join Date: Nov 2012
Location: Milton Keynes
Posts: 179
Send a message via Skype™ to Ross_Kirkbright
looks great loving the dual rad in the front
Reply With Quote
  #4
Old 11-12-12, 04:00 PM
badtaylorx's Avatar
badtaylorx badtaylorx is offline
Advanced Member

Join Date: Feb 2011
Location: maine usa
Posts: 348

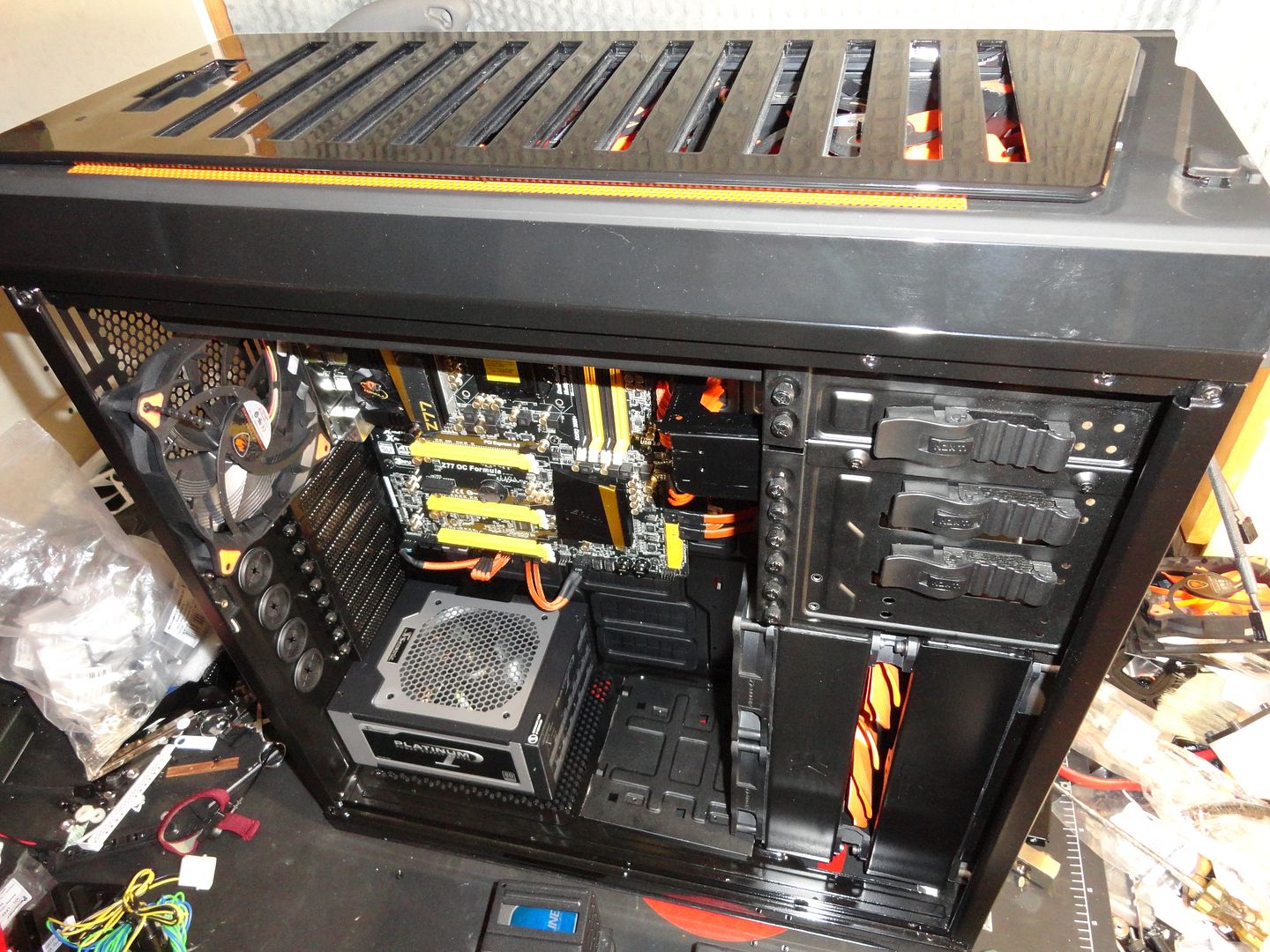

orange themed w/c'd and modded switch 810

as creative as i am, names are not my strong point....VERY open to suggestion....

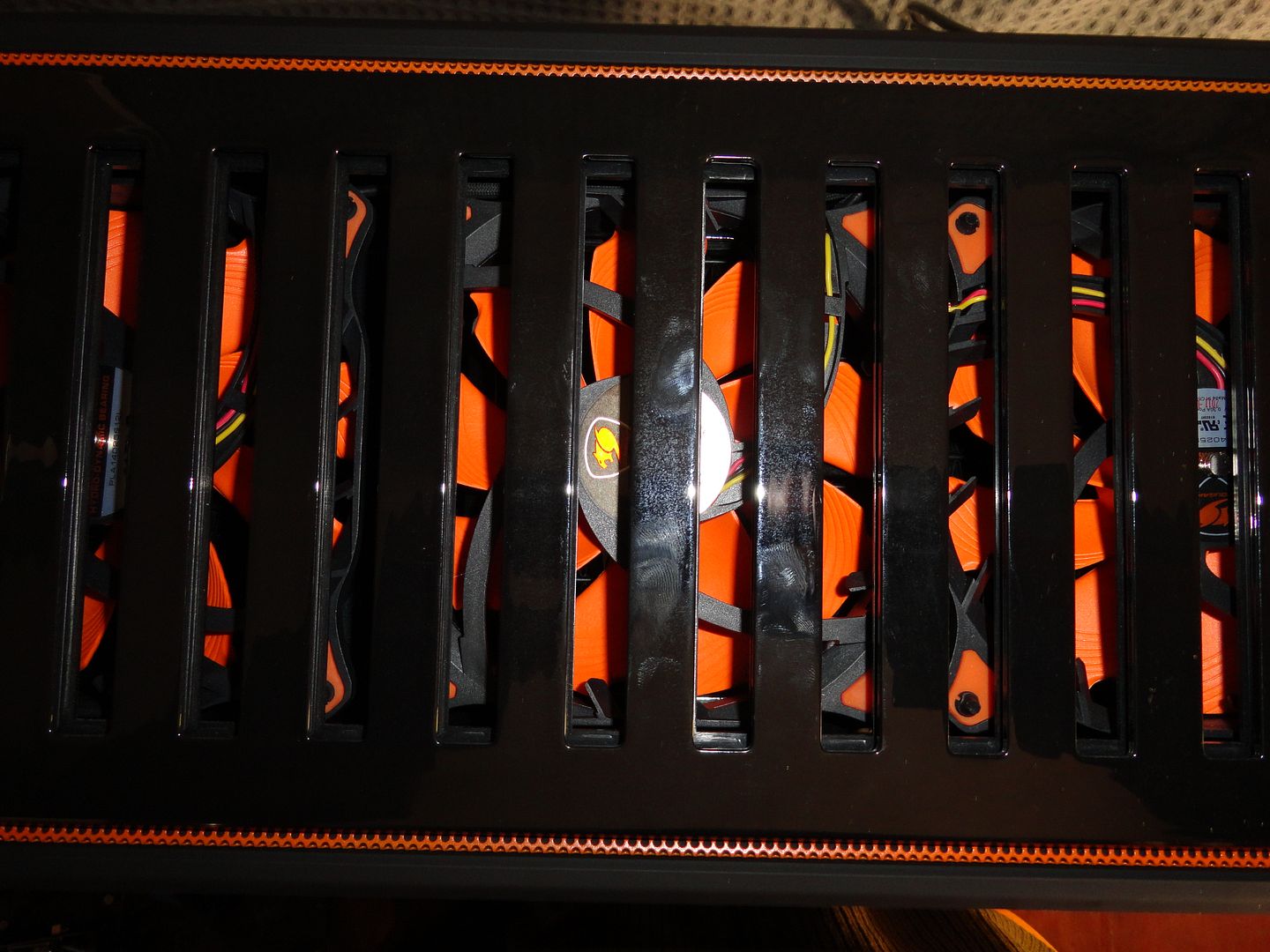

also....im a stickler for positive pressure, the fitting wont let me use a 140fan and the orange 120 just didnt look right there.....whacha guys think bout this....
