Project "Kur0 MiZu"

[robump]

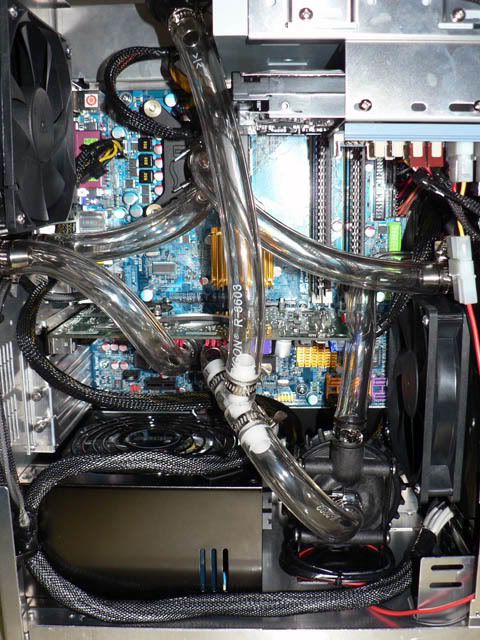

YAY it all fits in.

Its lookin pretty good.

Rob



[youpla]

Thanks, now I just hope it will worth the effort and that my temp will be lower than with air cooling!?

And yeah hope there won't be any leak

One thing that I don't like is the white plastic T-fitting. I originally planned to used the black DD T-fitting, but I had to used its 1/2" barbs for my GPU block as the GPU block came with 3/8" barbs (mistake from the shop).



[Rastalovich]

I can`t believe how well u`ve managed to fit everything in there.



[robump]

Is this one any better?

Rob



[youpla]

Is this one any better?

Rob

Thanks for the link but I wanted it all black

I still have the acetal DD T-line block but couldn't wait until the shop send me the 1/2" barbs, so I just bought a cheap T-fitting at my local DoIT yourself shop hehehe...



[robump]

Oh i see.

Those DD one look really neat, and very professional.

Hope you get some good temps.

Rob



[Thanh55]

An awesome project dude. I like that, everythings look neat and tidy.



[Ham]

Excellent work fitting everything in there, while keeping it tidy! Well done.



[ai_01]

awesome, looks great. maybe im wrong but isnt the inlet for the cpu block in the middle or did EK do something different? it would effect temps if it was.



[youpla]

awesome, looks great. maybe im wrong but isnt the inlet for the cpu block in the middle or did EK do something different? it would effect temps if it was.

You are probably right, I didn't think about that nor I wasn't sure which was the in and out...

I will change it if it affects temps... thanks for the advice.

PS: verified on EK website instruction, inlet is center barb... changing the loop now. reps to you!



[youpla]

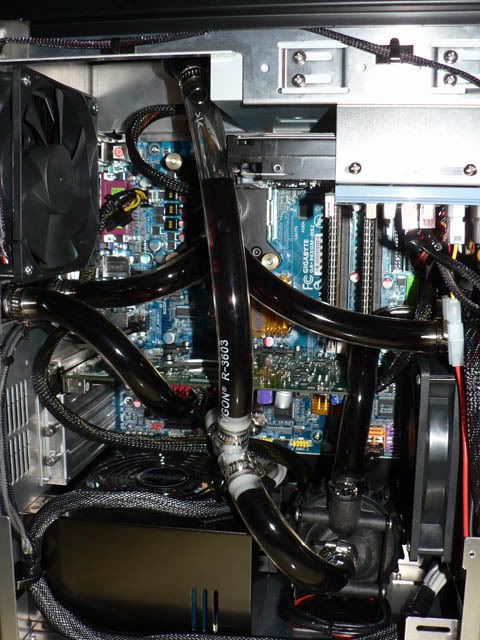

Rearranged and corrected the loop on the CPU

Filled the loop with "Phantom black"

The "Phantom black" is really cool, I like how it looks

Leaving the rig for the day to check if there is any leak...



[nunzio]

That looks really sweet!



[ionicle]

love it! makes a change from the usual colours people use, like blue, n green, black looks really awsome



[robump]

That looks nice. im loving the black.

Rob



[nunzio]

Looks like its full of Guinness



[youpla]

Looks like its full of Guinness

hahaha you couldn't find a better comparison... you should have seen all the bubbles when I first start the PC, almost like a Guiness

Yep me too I really look the black and it is a color not usually used yet.

The pump is amazingly silent and except severals bubbles and air still trapped in the loop that make some pops occasionally, I almost don't here anything!

A first look at the temps after 30 minutes of use

CPU core1: 25C

CPU core2: 28C

GPU: 38C

Motherboard: 28C

System: 39C

HHD: 41C

It's the first time I get my CPU temp bellow 30C!!!! YEAHHH



[FghtinIrshNvrDie]

sorry I didn't catch it in time...

Why didn't you use a 3 way hose barb made out of brass? That would sure look a heck of a lot better.

Ryan



[youpla]

sorry I didn't catch it in time...

Why didn't you use a 3 way hose barb made out of brass? That would sure look a heck of a lot better.

Ryan

As I posted earlier, I have a DD Acetal T-fitting but I just couldn't wait for the barbs to come any longer, so I got that white one!

How long does it take to get all those tiny bubbles away? I have been spending several hours moving the PC in any way but I still have those nasty bubbles coming out and occasionally some noise from the pump like there was a big air pocket etc...



[PV5150]

Looking very slick mate, and I think the white 'T' provides a nice contrast to the black Fluid XP. The smaller residual bubbles (on the walls of the tubing) will find their way out over the next few days, nothing to worry about. Plus the white 'T' fitting will glow a really vivid white under UV black light.



[Hyper]

Very tidy mate

W00t 1000 posts
