my 800d rig

[chewythefirst]

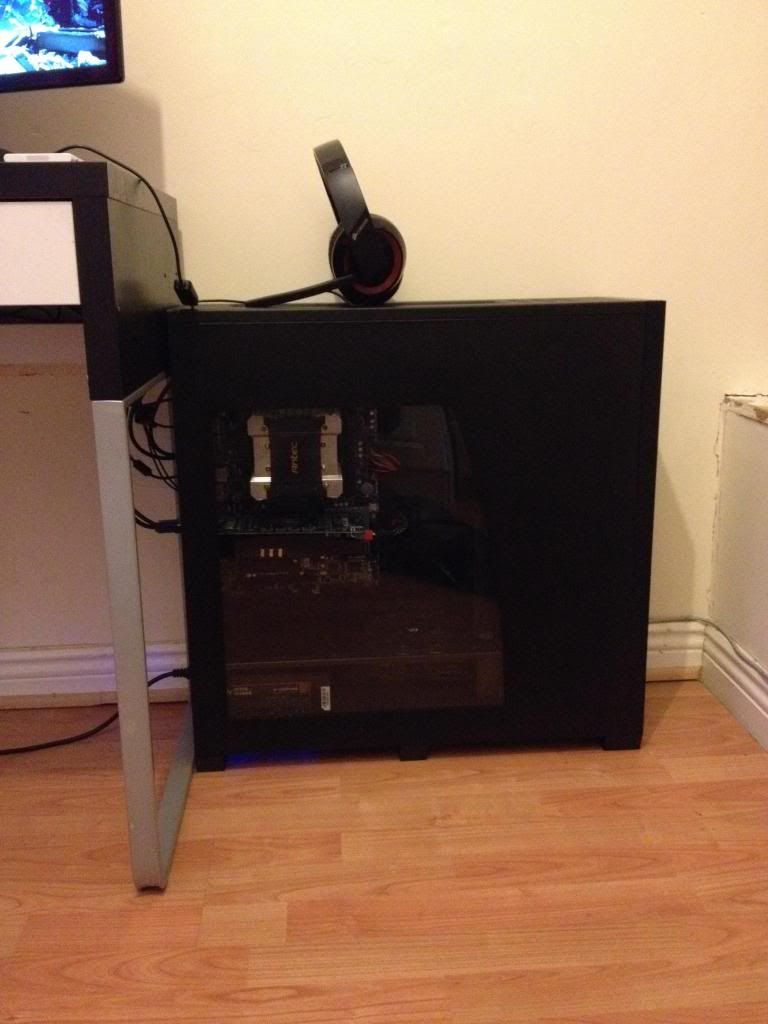

So i have been looking at all the really good rigs being posted up and i though my isn't anything mad or over the top but i think is neat and tidy so here it is.

Specs:

Corsair 800D
AMD FX 6-core Black Edition FX-6100
Gigabyte Socket am3+ GA-990FXA-UD3
Sapphire Radeon HD 6870
8gb gskill pc3-10666 Ripjawx series
Antec Kuhler box CPU cooler
Samsung 830 series 64gb ssd
WD 2tb 5400rpm



[alpenwasser]

i think is neat and tidy so here it is.

That it is, that it is. Now if only there were sleeved cables...

But yes, neat and tidy, I like it.



[chewythefirst]

That it is, that it is. Now if only there were sleeved cables...

But yes, neat and tidy, I like it.

Thanks and some sleeved cables would look really good, any good sites that sell them (cheap hopfully



[alpenwasser]

Thanks and some sleeved cables would look really good, any good sites that sell them (cheap hopfully

I have never seen them in person, but I've read in a few places that the Bitfenix extensions
are pretty decent for non-custom ones. Since you have quite a bit of room at the back
side of the M/B tray, you should still be able to make things look tidy.

If you want custom extensions, well, you get what you pay for in my experience. A properly
done custom job is not going to be cheap AFAIK.

Pexon makes custom extensions (also a forum member here), as does lutro0 customs,
and probably a few other places I'm not aware of (might need to do some googling on
that one ).



[Dicehunter]

Thanks and some sleeved cables would look really good, any good sites that sell them (cheap hopfully

Although the 2 places Alpenwasser mentioned, Lutro0 and Pexon, Are great they are Very Very expensive.

I got all my 24 Pin Power, 8 Pin EPS, 6 Pin PCI-E and 8 Pin PCI-E cable extensions from cables4pc, He/she is based in Surrey and his/her work is amazing and IMHO is just as good as the ones Alpenwasser mentioned but don't require you to chop off your nut sack, Scoop out a kidney, Cough up a lung and sell it all on the black market to be able to afford them.

I've got a friend who bought the Premium PC Extension Kit and to my eyes and fingers I really couldn't tell the difference between Cables4pc's work and Pexon's work, Cables4pc for an entire set i.e 24 Pin Power, 4/8 Pin EPS, 2 x 6 Pin PCI-E, 2 x 8 Pin PCI-E costs £40 and the exact same thing from Pexon costs £70 and in all truthfulness I could not see or feel where the extra £30 went but I'm guessing it's because Pexon does all of the work himself.

http://www.cables4pc.co.uk/

The other cables i.e fan cable extensions, Front panel extensions and SATA extensions I got all from Bitfenix, Their cables are awesome, They look professional, Feel soft and cotton like, Grade "A" stuff and their prices are amazing as well.

I don't work and I'm not endorsed by C4PC but I've used their products in all my builds and can honestly not recommend them enough, So here are a few pics from their site as an example of their work, These are the one's I currently have in my rig and as well as looking great they have a soft material feel to them -

24 Pin Power -

8 Pin PCI-E -

6 Pin PCI-E -

*NOTE* You can get any colour combo and cable length you want you just have to send him/her a message

Hope this helps



[alpenwasser]

-snip-

That actually sounds pretty good.



[chewythefirst]

24 Pin Power -

They look really good, I was looking around last night after you guys started recomending places and found a shop on eBay that look to be really good. I priced up a 24pin 8pin 6pin audio header and front panel cable delivered all for €44. I am going to pick them up at the end of the month when I am paid.

Will also post a link when I am home(can't do anything on this crappy windows phone)



[chewythefirst]

hi guys i was looking on all the sites and shops that you have posted and i have had a look around myself and i cant seem to find anywhere that sells a USB header white sleeved cable that hasn't got the black heat sink at the end of the cable. also a 3 pin fan header cable with the same problem. any other places that i may have missed?



[alpenwasser]

hi guys i was looking on all the sites and shops that you have posted and i have had a look around myself and i cant seem to find anywhere that sells a USB header white sleeved cable that hasn't got the black heat sink at the end of the cable. also a 3 pin fan header cable with the same problem. any other places that i may have missed?

I'm not sure if something like that exists. You need to fix the sleeve to the wire(s) somehow,
and heatshrink is the usual method. The reason you can have heatshrinkless sleeving on
ATX, EPS and PCI-E connectors is because you can melt the sleeve onto the pin and hide
that in the connector. I doubt if that is possible with USB headers and fan connectors. The
only alternative I see is gluing the sleeve to the wire(s), but it might be tricky to get that
to look good.

Alternatively, you could try to get heatshrink in a different colour.



[wassupdoc]

If you'd spent half as much on the case you could of put a fairly beastly GPU in there dude. It's a nice neat rig but... Plus the 800D is a useless air-cooling case. Not trying to slander your work or anything mate it's a nice tidy build but parts choice could be a little better.



[chewythefirst]

If you'd spent half as much on the case you could of put a fairly beastly GPU in there dude. It's a nice neat rig but... Plus the 800D is a useless air-cooling case. Not trying to slander your work or anything mate it's a nice tidy build but parts choice could be a little better.

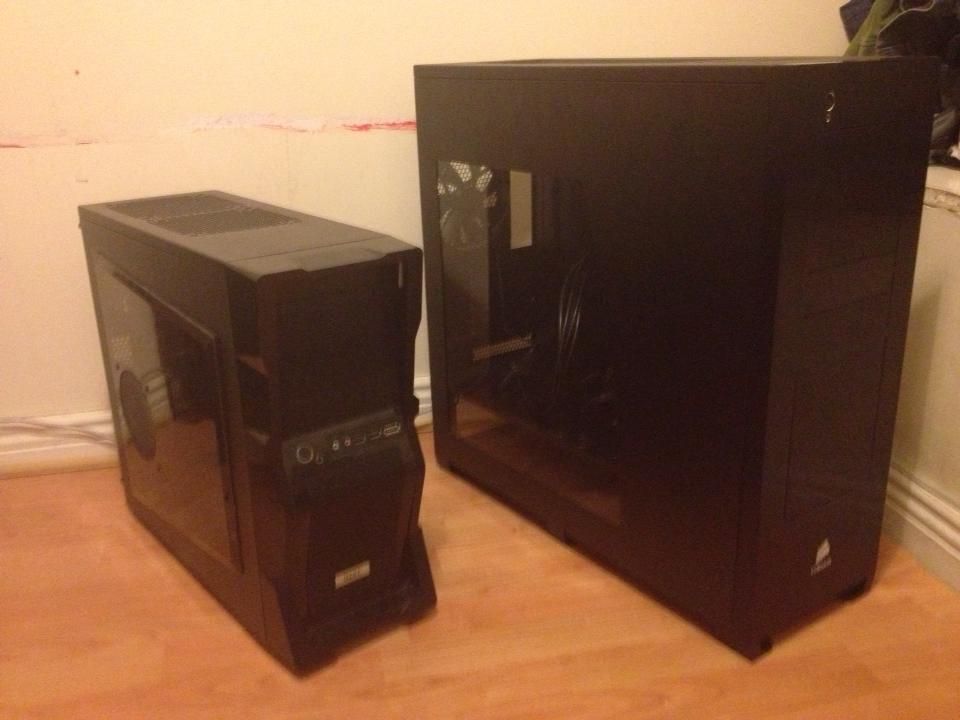

I had all the gear in a NZXT M59 case up till a few months ago when i got the 800d second hand for half the sales price and the guy only used it for 3 months then found out that the 900d was out so he sold me the 800d and bought the 900d instead.

I also have the intent of water cooling just need the funds to finish getting the parts. have a few bit phenix fittings, a cpu block, a frozenQ 240mm red coil res all ready (all parts my friend has given me) only need to get tubing and a few more fittings and BOOM!!!! she will look sweet



[chewythefirst]

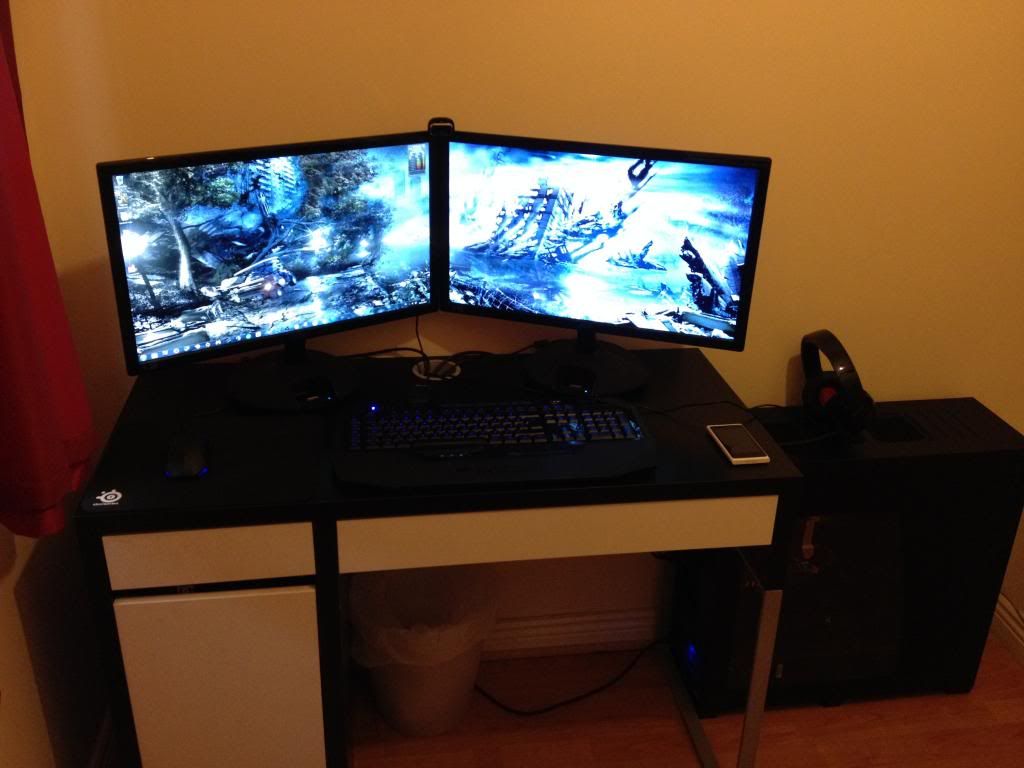

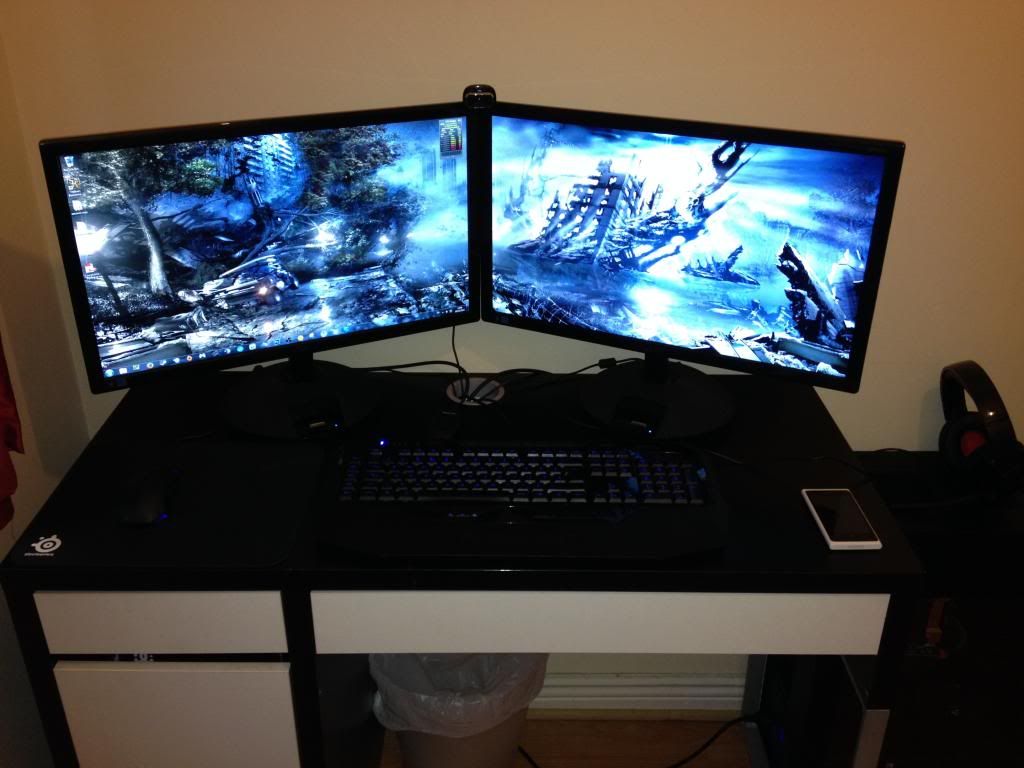

So tided up my desk and thought you all might like to see the hole set up.

Keyboard - Roccat ISKU
Mouse - Roccat Kova[+]
Headset - Corsair Raptor HS30
Monitors - AOC 24" E2343Fi



[chewythefirst]

So i have ordered white custom braided cables a 24pin 8pin 6pin and the shop i found did a front panel cable as well

I also ordered a NZXT led 1m white light strip.

This is the front panel cable.

This is the one i wasn't expecting to get

i have also ordered a self sleeving kit and i am going to give it a go myself just so in the future hopefully i can do it myself



[lutro0 customs]

Although the 2 places Alpenwasser mentioned, Lutro0 and Pexon, Are great they are Very Very expensive.

I got all my 24 Pin Power, 8 Pin EPS, 6 Pin PCI-E and 8 Pin PCI-E cable extensions from cables4pc, He/she is based in Surrey and his/her work is amazing and IMHO is just as good as the ones Alpenwasser mentioned but don't require you to chop off your nut sack, Scoop out a kidney, Cough up a lung and sell it all on the black market to be able to afford them.

I've got a friend who bought the Premium PC Extension Kit and to my eyes and fingers I really couldn't tell the difference between Cables4pc's work and Pexon's work, Cables4pc for an entire set i.e 24 Pin Power, 4/8 Pin EPS, 2 x 6 Pin PCI-E, 2 x 8 Pin PCI-E costs £40 and the exact same thing from Pexon costs £70 and in all truthfulness I could not see or feel where the extra £30 went but I'm guessing it's because Pexon does all of the work himself.

http://www.cables4pc.co.uk/

The other cables i.e fan cable extensions, Front panel extensions and SATA extensions I got all from Bitfenix, Their cables are awesome, They look professional, Feel soft and cotton like, Grade "A" stuff and their prices are amazing as well.

I don't work and I'm not endorsed by C4PC but I've used their products in all my builds and can honestly not recommend them enough, So here are a few pics from their site as an example of their work, These are the one's I currently have in my rig and as well as looking great they have a soft material feel to them -



*NOTE* You can get any colour combo and cable length you want you just have to send him/her a message
[/COLOR]
Hope this helps

haha, its funny because he is using a pic of the back of my Katharos Mod in his pictures. hahah



[FourLions]

Great to see lots of mod going on



[chewythefirst]

I for got all about this thread, I have got the cables and put them in.

Have a look.



[GadgetGarrett]

Those cables make a huge difference. Nice one!



[chewythefirst]

Those cables make a huge difference. Nice one!

cheers man.



[kenny01924]

you have a nice tidy rig there mate nice job done



[chewythefirst]

you have a nice tidy rig there mate nice job done

thank you very much.
