"CoolBreeze" Build Completed - 800D mod

[Mariusz803]

Hey everyone so tired of typing by now, so i'll let the pics tell the story...

Questions or comments are more than welcome, this is my first build and i'm still learning each time i open my case, enjoy.

System Specs:

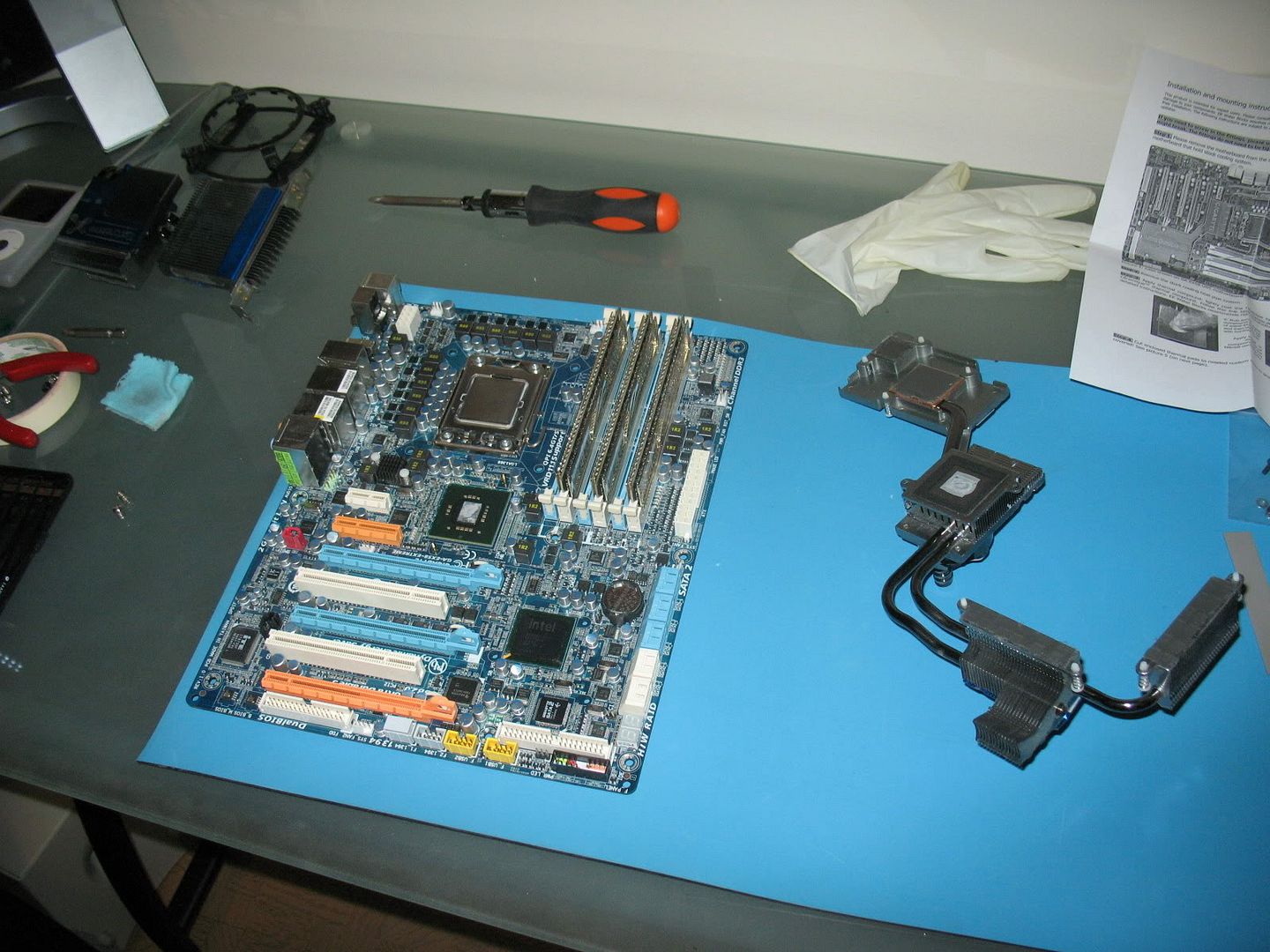

Gigabyte EX-58 Extreme
Intel i7 920 @ 4.001gh/z + EK block
24gb Corsair Vengeance DDR3
EVGA GTX 580 + EK block
EVGA GTX 460 + EK block
Corsair HX1050
Corsair Obsidian 800D (modded)
60GB OCZ Vertex Turbo (OS)
7TB Western Digital (storage)
Bitspower compression fittings 3/8" ID 5/8" OD
Laning D5 Vario Pump + EK top
T-Virus 150mm Limited White Reservoir



[Josh Weston]

Make sure you add the specs of your rig into the OP, dude. Use the edit button to do this.



[seumasbeathan]

looks like a lot of tubing to me? still, i like the white theme



[CPMFW]

looking pretty good mate



[Mariusz803]

looks like a lot of tubing to me? still, i like the white theme

Added info, thanks for heads up.

looks like a lot of tubing to me? still, i like the white theme

Hehe that was the plan. I don't like to work with minimal tubing supplemented with SLI bridges or whatnot because it makes maintenance a pain... heck if you got the room in your case use it ;P



[Cloudie]

Nice mod although it's such a huge tubing mess I'd redo it for a cleaner look to get the shortest loop possible. With the amount of waterblock you'll still have a nice look, just less messy.

Did you do the sleeving yourself or are those extentions? Looking pretty sweet!



[SnW]

Nice work, but shame about those stickers...........

Ray.....



[Mariusz803]

Nice mod although it's such a huge tubing mess I'd redo it for a cleaner look to get the shortest loop possible. With the amount of waterblock you'll still have a nice look, just less messy.

Did you do the sleeving yourself or are those extentions? Looking pretty sweet!

I thought a lot about the loop and decided i wanted the water to go right from top rad to CPU block, this limited the route i could go. Personally i like more tubing, makes it easier to work with and heck if you got the room use it! but next time i do a system upgrade i will have another look at what i can do... shame the mobo block needs 6 fittings. Any suggestions on updated loop routing?

I bought cable extensions for two reason: first wanted longer cables, and second i didn't want to spend the time sleeving psu cables and void warranty.

Nice work, but shame about those stickers...........

Ray.....

Heh not a fan eh? i like them but that's probably because i've gotten used to them.



[Bang]

Really nice job mate. That looks awesome.



[Bullmecha]

Been running that same board for years now =)

Nice setup!

I still use the stock cooler for mosfets they are fine. The extra mosfet water blocks could be taken out and then you would have less tubing, but that's my opinion. =)



[Mariusz803]

Been running that same board for years now =)

Nice setup!

I still use the stock cooler for mosfets they are fine. The extra mosfet water blocks could be taken out and then you would have less tubing, but that's my opinion. =)

Thanks for the comment, i love the board too- except for the terrible onboard audio that conflicts with gamming and watching HD movies (that's why i had to get audio card, thanks RealTek).

Yes i was considering maybe putting the stock cooler back on but what changed my mind.... the Corsair 900D. I might be planning to look at updating my build to that with an extra rad, if so then i wont bother updating this build just yet.

Cheers.
