[Build Logs] Snef's Purple Chimera

[snef]

Hi everyone
Another project, I know , another one but like I said, impossible to live without project

Use of this new rig: …….heu……………..do I really need another one?......................
I don’t know for now, maybe simply sell it,
I named this one “Snef’s Purple Chimera”

Steps 1: Ordering parts
Computer parts
CPU: Intel i7-3570k:
Mobo: Gigabyte Z77iTX Wifi”
Ram: 8BG (2 x 4) Gskill Ripjaw-X 2133:
GPU: 1 x Powercolor Radeon™ HD 7950 3GB
Case: CaseLabs S3 White
Power Supply: Strider plus 500:
SSD: 1 x OCZ Octane 128Gb:
HD: 1 x 2.5 WD 500GB 7200trm:

Mods Parts
Sleeving: darkside White and purple Sleeving:
Case lightning: purple or white led strip
GPU backplate: 1 x EK Backplate Radeon 7950 White
PSU cable, Silverstone short cable kit
a lot of fan splitter and molex spliter:

Cooling
Case and Radiator fans: 7 x Xigmatek purple led:
Fan Controller: Bitfenix recon white
Radiator: 2 x XSPC EX240:
CPU: EK Supremacy LTX nickel plexi :
GPU: 1 x EK FC-7950 Nickel plexi:
Pump: 1 x DDC 3.1:
Pump Top: EK Pump top White,
Reservoir: EK res X3 150mm white Cap
Tubing: E22 plexi tube 12mm/10mm:
Coolant: 2 x Mayhems Purple pastel
Fittings: 24 x Bitspower Multi-Link Adapter BP-MWWP-C47 WHITE:
Fittings: 90, spacer and rotary 90 degre white fitings:


that's it for now for parts
now starting build

first sorry for pics but they will be better
ok now only painted power supply and start sleeving
but everything start somewhere
24 pins sleeving

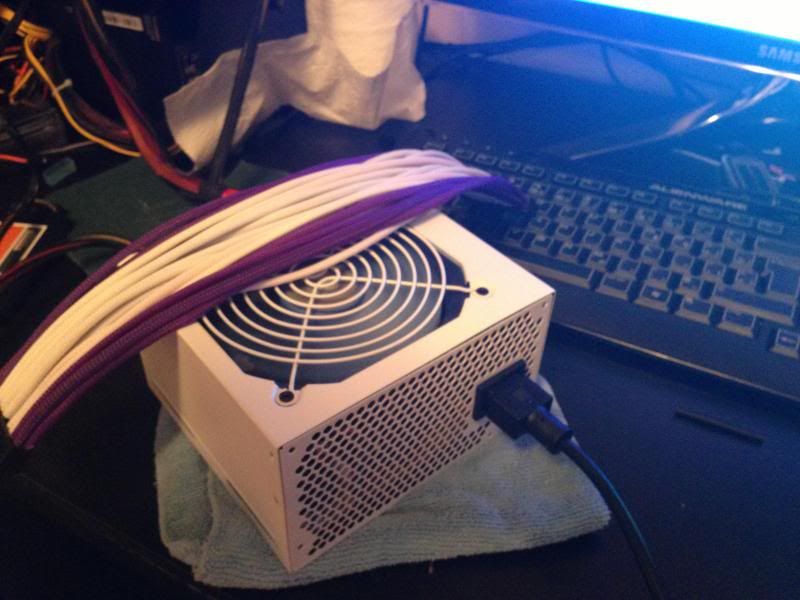

PSU and 24pins done

yessss receive little baby today

what i received,
Bitfenix recon white
GA-Z77N-Wifi
and Caselabs S3 white
my wife took some pics , with ipad,, really sorry for pics

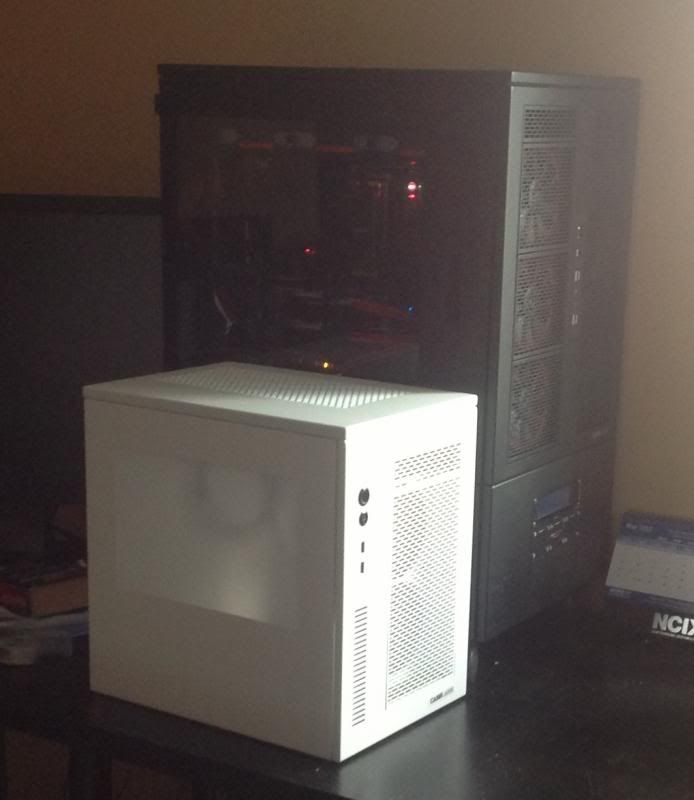

ohhhhh look at this little cutie

ok,
im very disapointed by Gigabytes Z77N-wifi
its my fault, i did not to much research about this board

1:
no Vcore setting, heu......... z77 without vcore setting, its a joke

2:
what the fuc..... with the power placement on the board
i dont undertand gigabytes on this one
look the results, why not do it like all other itx board, just beside ram, ridiculus
sorry for pics

and usb3 hahahahahaha ridiculus, but seem to be same on other brand

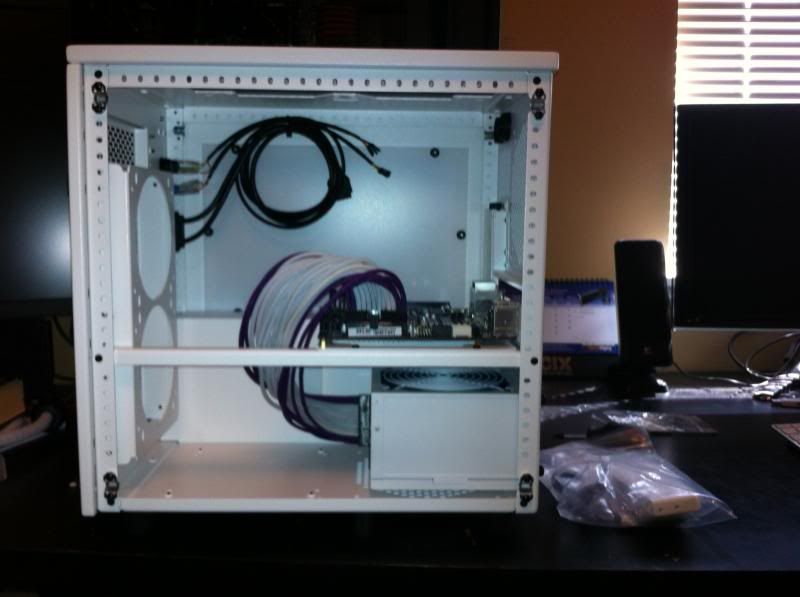

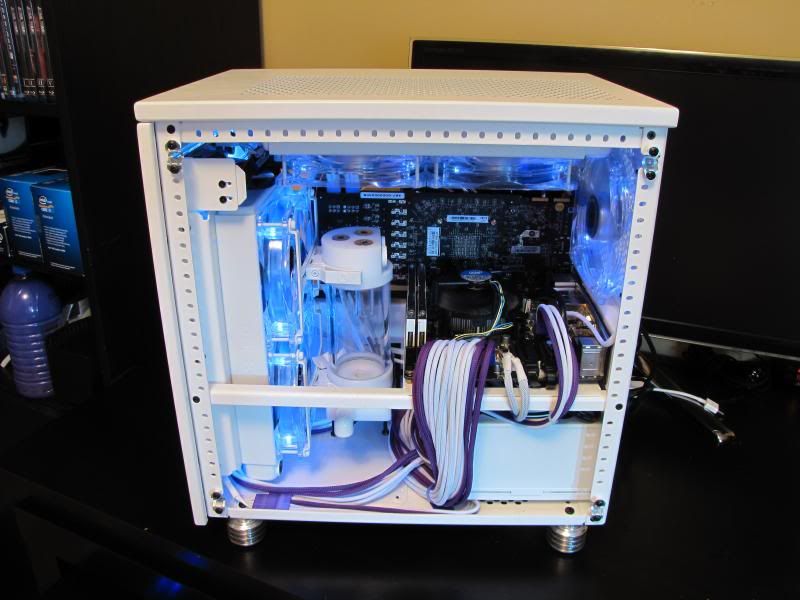

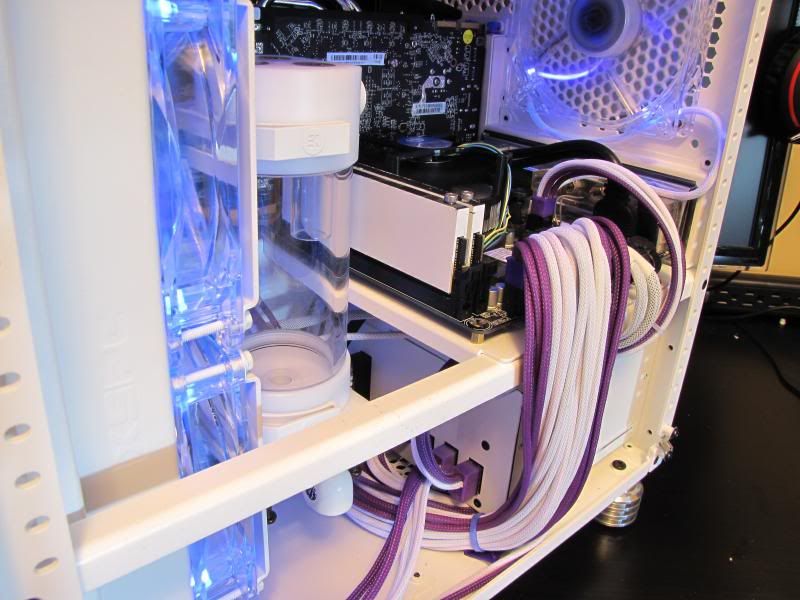

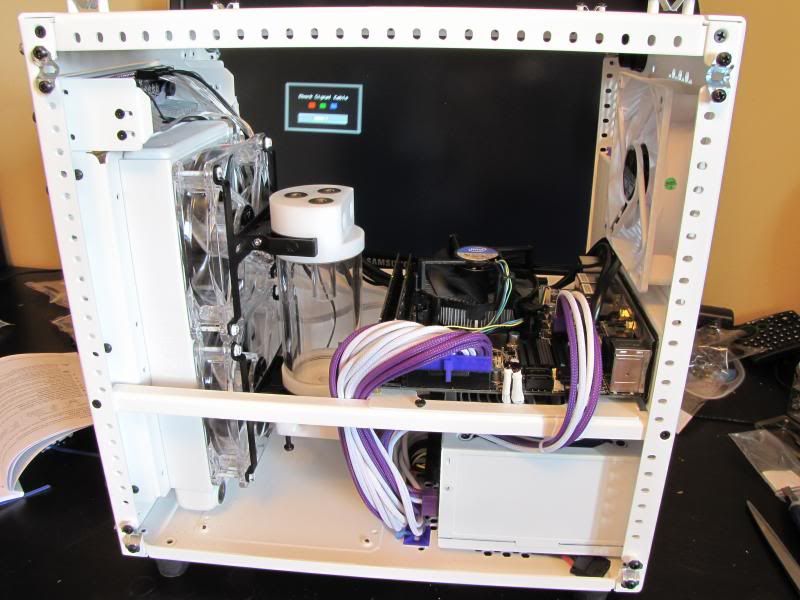

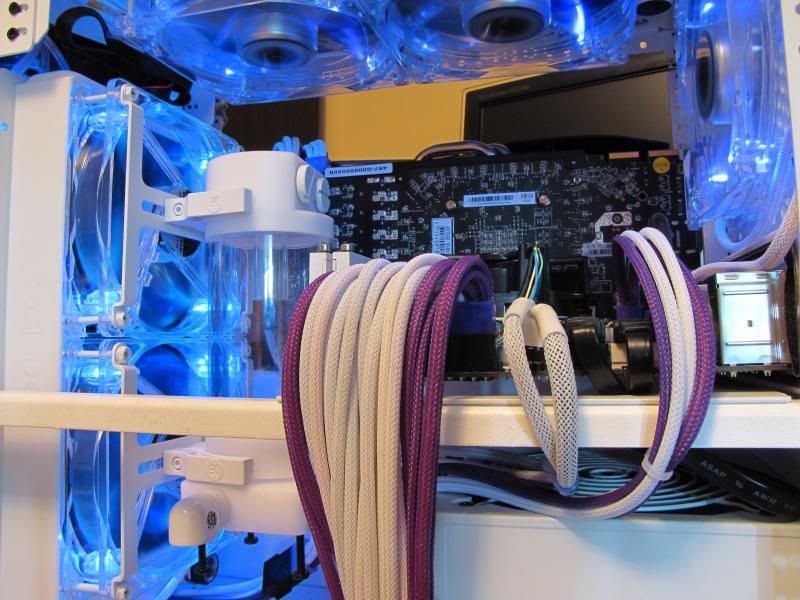

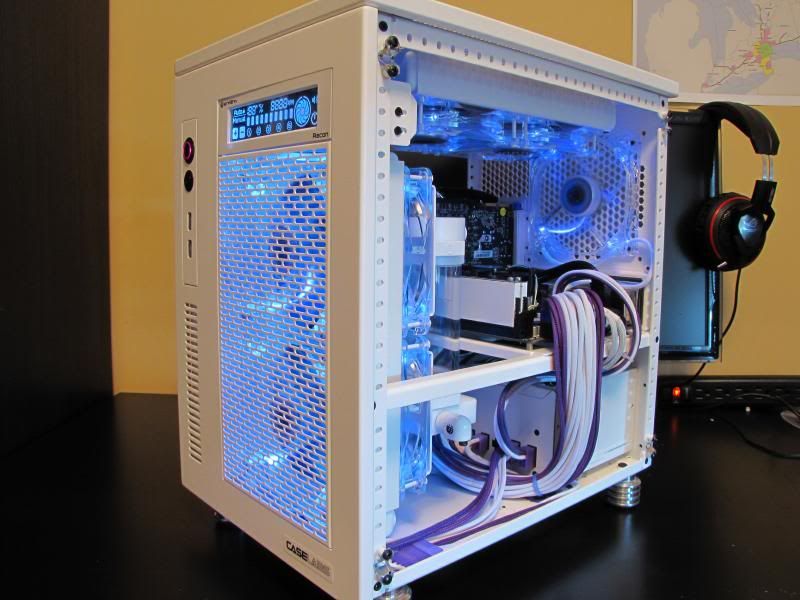

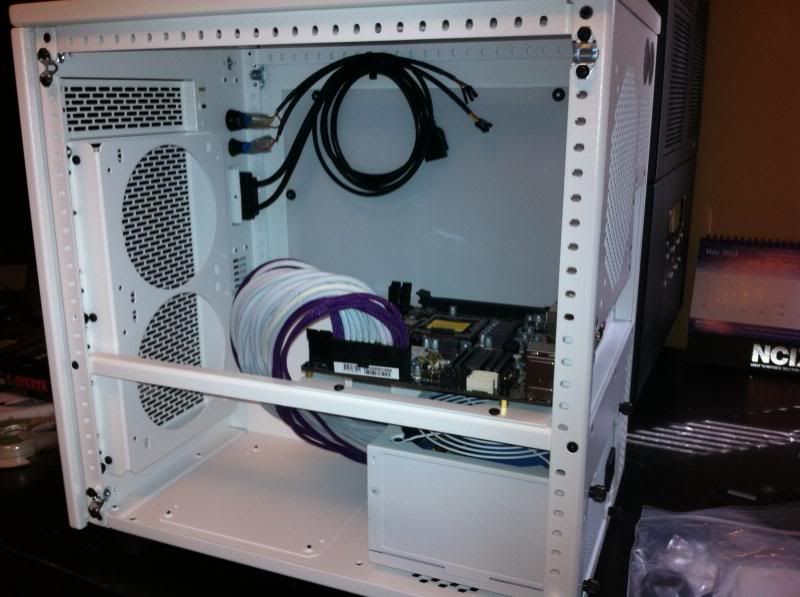

Nothing special but installed hardware in case for test averything is working and placement test

I really don't like where is the 24 pins on motherboard but I will keep it finally, not a the right place but not so bad

wait for other rad on top, I will paint the Un Holder and res mount white, and not sure but I think change rear fan for a purple led one, I change connector for purple connector, I think I will put purple sticker on motherboard's 24 pins

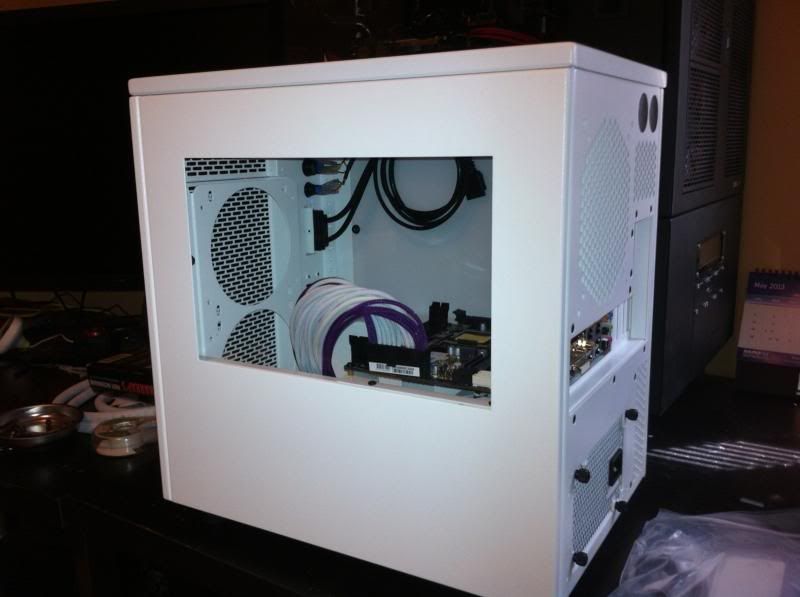

with door, the 24 pins is not so bad, not a the real place but....., think if I keep gigabyte or change for an Asrock or stinger but its another $150 and more just for cable placement.......... not sure at this moment

I really like the fan In front, they seem to be invisible and only led are visible, change switch but the led on power switch are very low or dimmed, maybe in next order
more fan and Fanblade's case feet are on the way to my home
now wait to have more money to order fittings, rad, video card and all waterblock


update

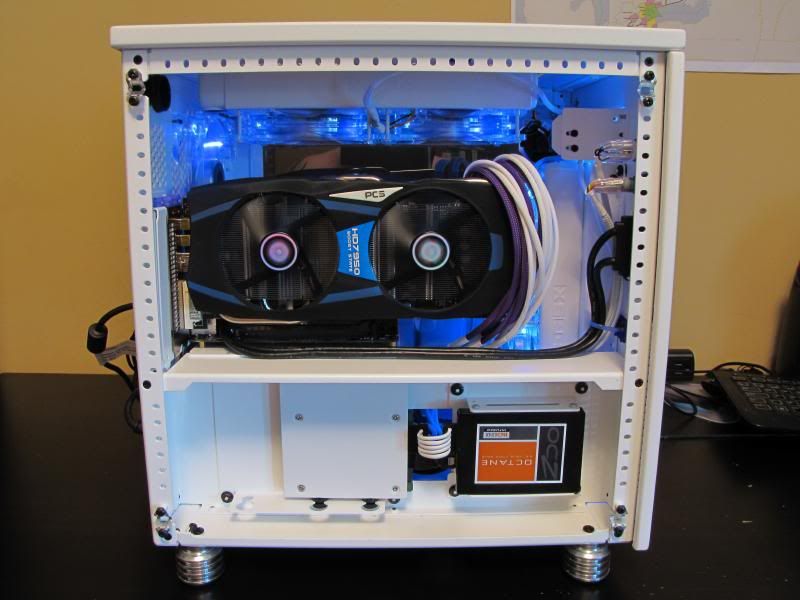

receive my GPU, its a reference PCB but not reference cooler, ssd will be white with a special ting on it, and painted 2.5 to 3.5 adaoter for a WD black 500G
if Vieuxchnock can stop buying evry block and accessories for HD7950,:head-slap: :lol:

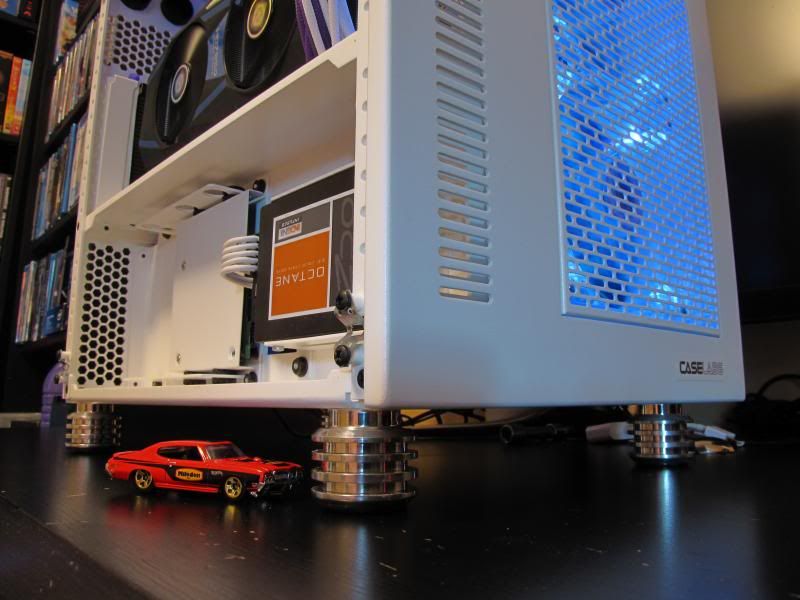

ahhhhh these feet are perfect for a Caselabs S3, this little red thing want race with my previous gif,


I post this pics to show what happens with white sleeving with colored cable, but I don't have tools to do my cable, next project you will not see this again, but need to bevery close to see it




I painted XSPC memory adapter, I really like the result

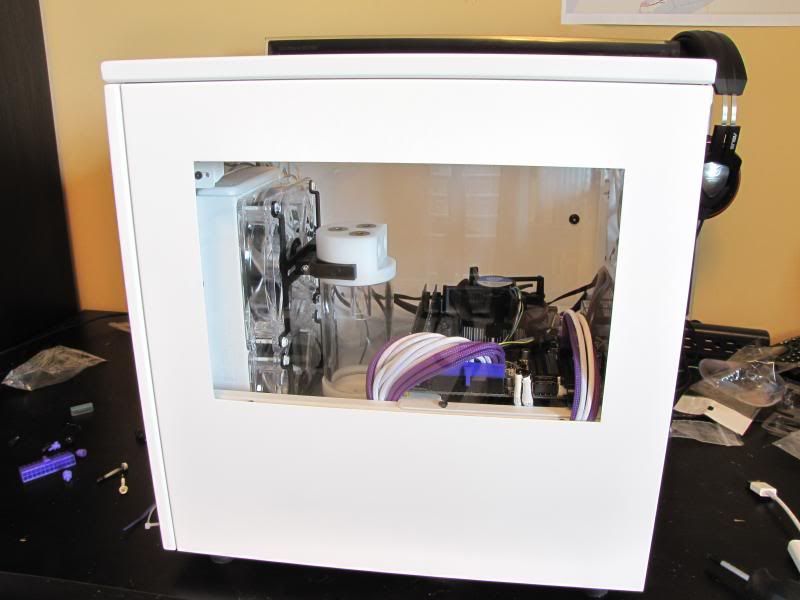

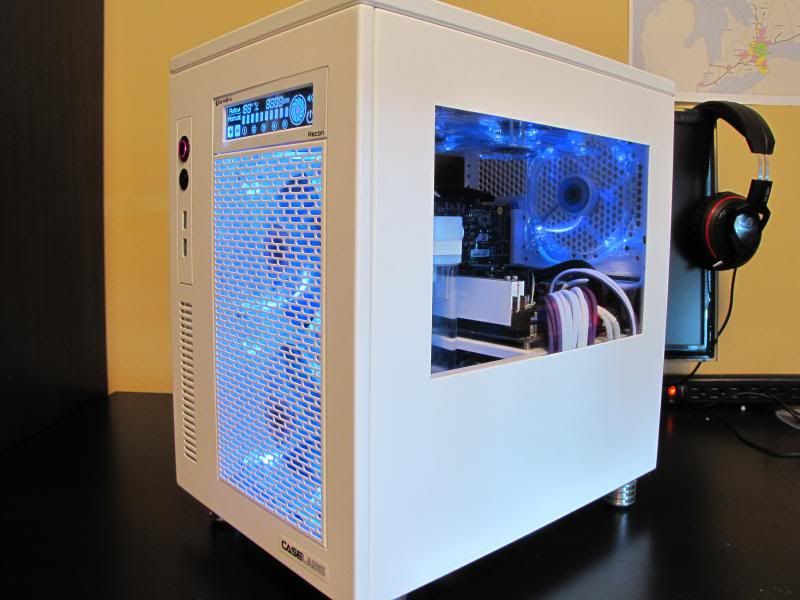

with side panel

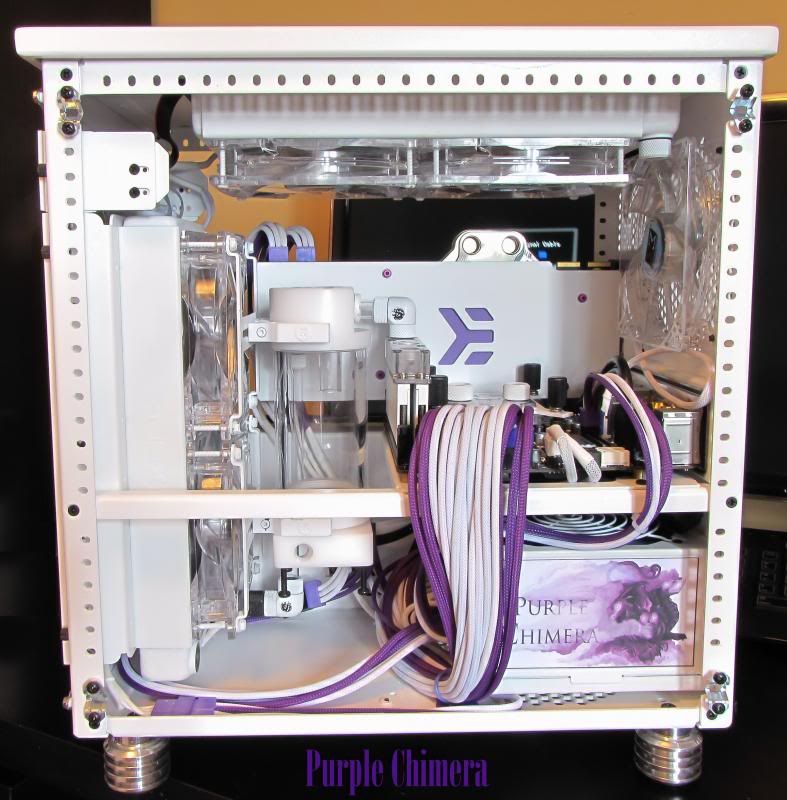

I changed all connector for purple connectors, I really like it, I painted the res holder in white a lot better than black

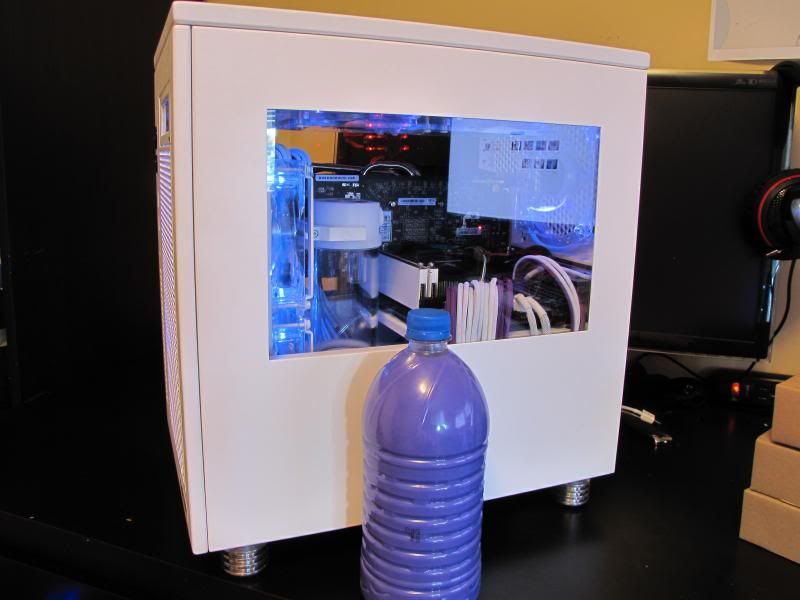

look the color of the pastel purple coolant, wow!, I think its a perfect match

like I said, still have a lot of job but I really like the purple theme,


need some angle adapter to finish it
still using acrylic tubing but no bending

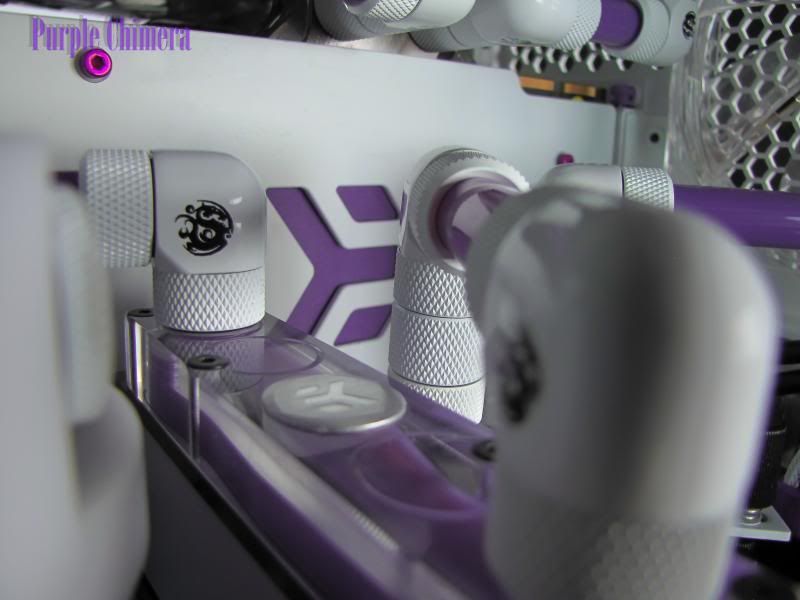

I will use white angle adapter
I don't like it without, more industrial look with angle adapter

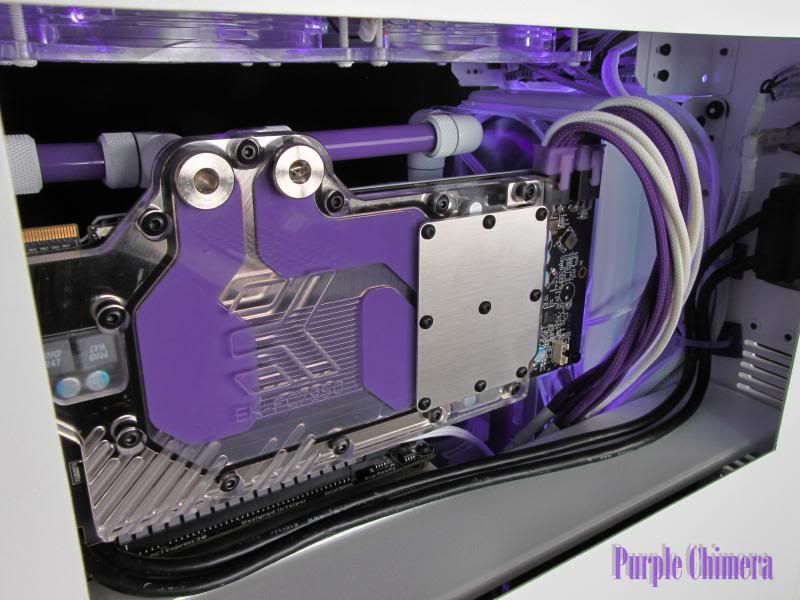

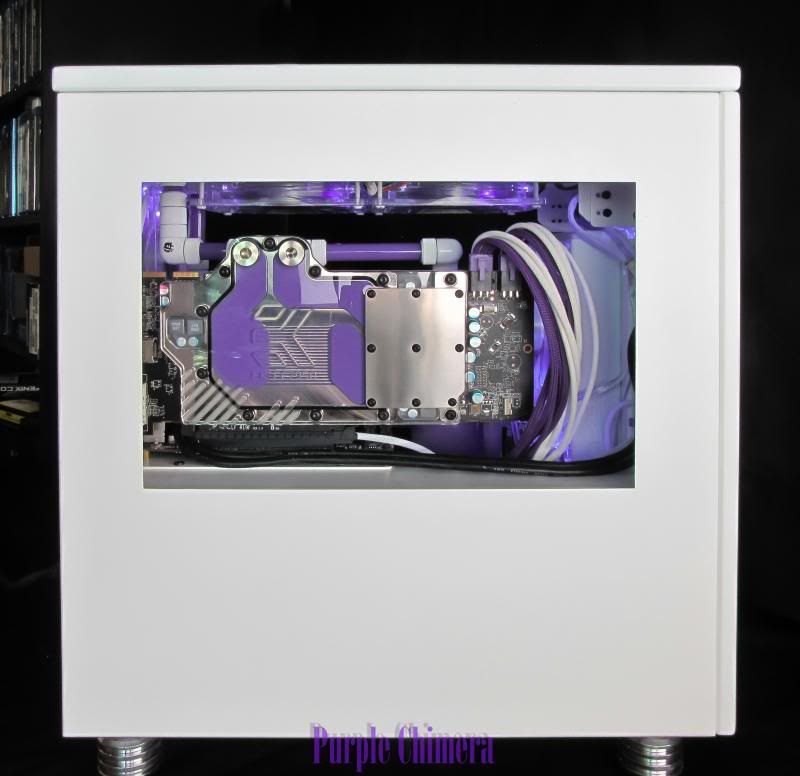

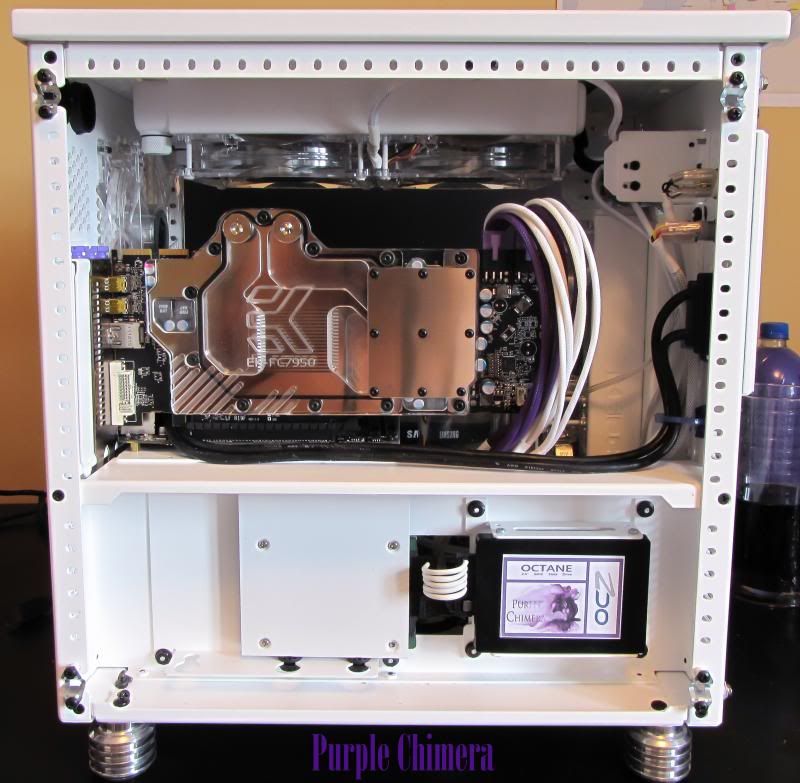

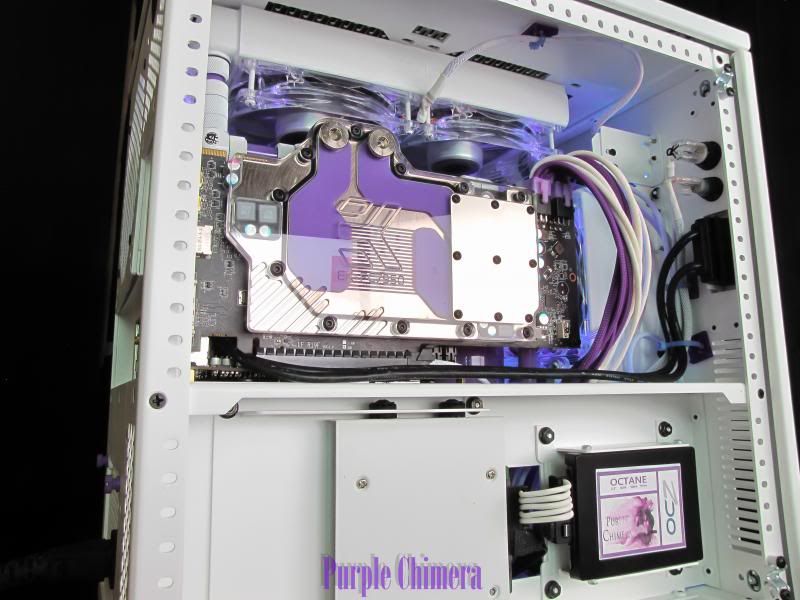

first GPU under water and painted backplate

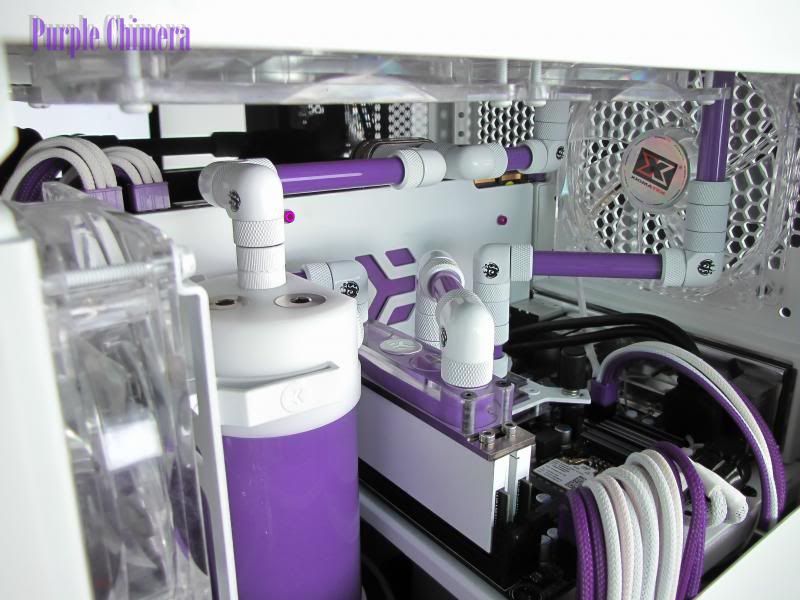

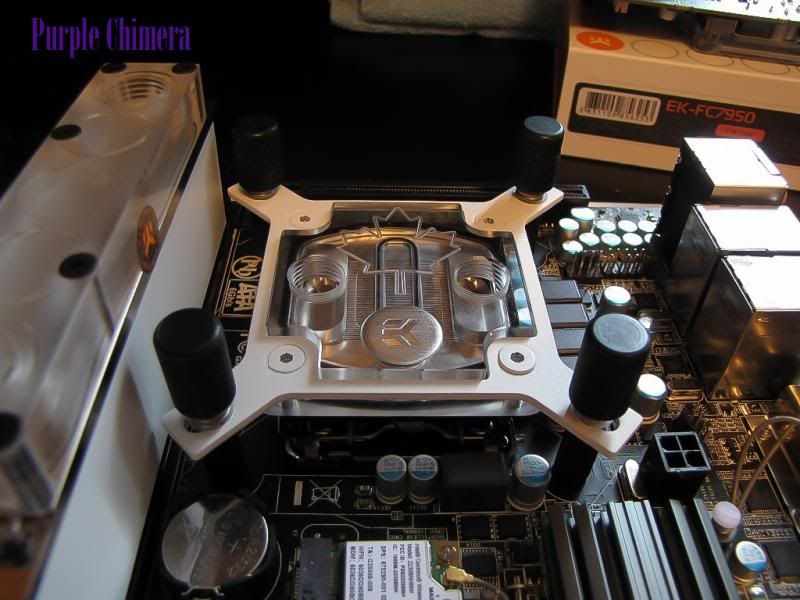

painted Dazmode special edition CPU Block

in case

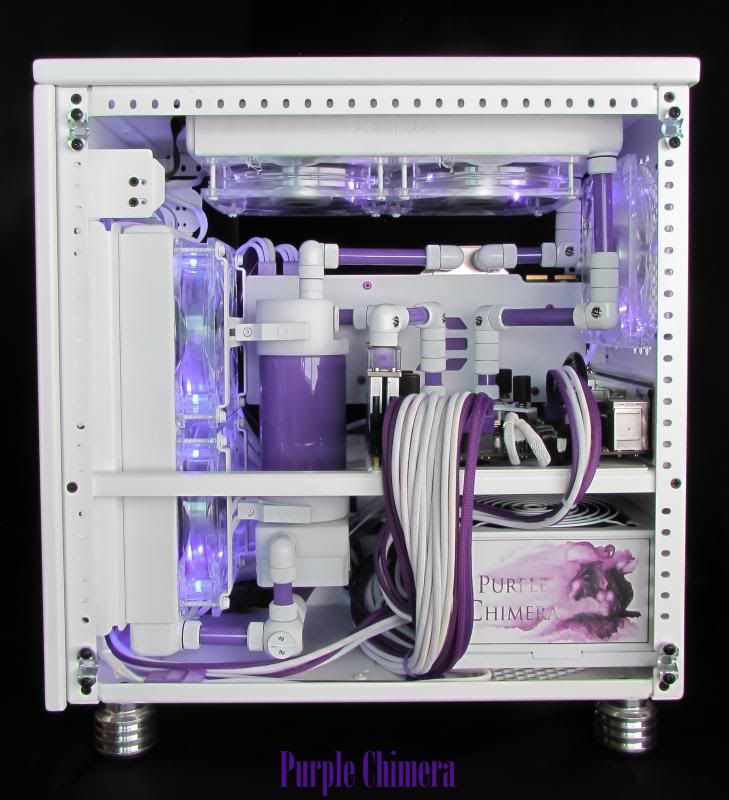

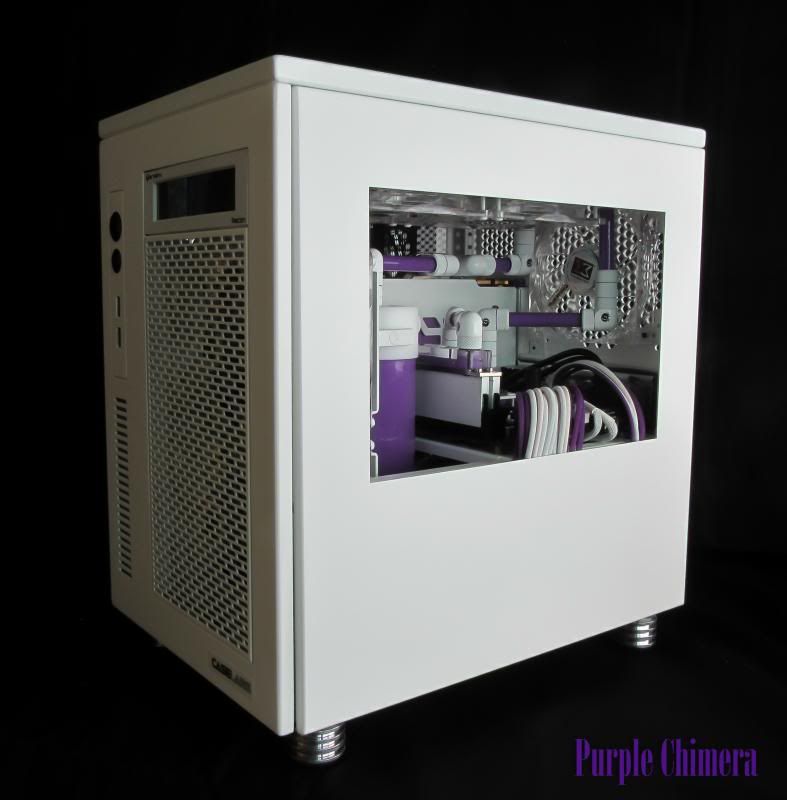

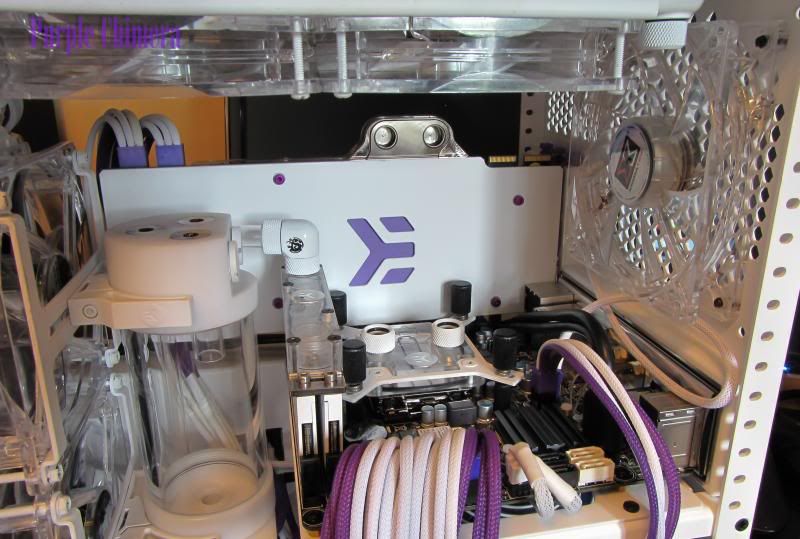

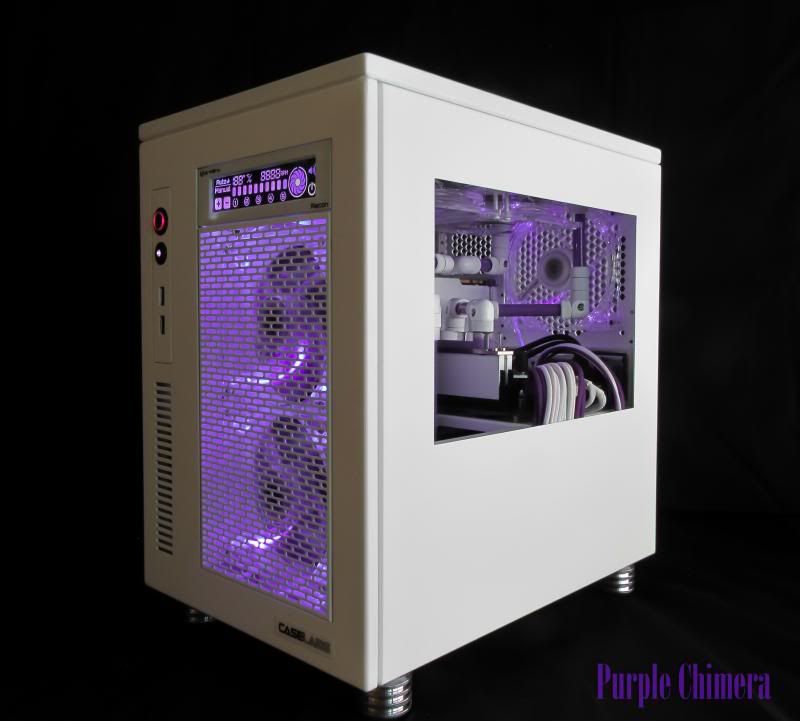

Snef's Purple Chimera is Complete

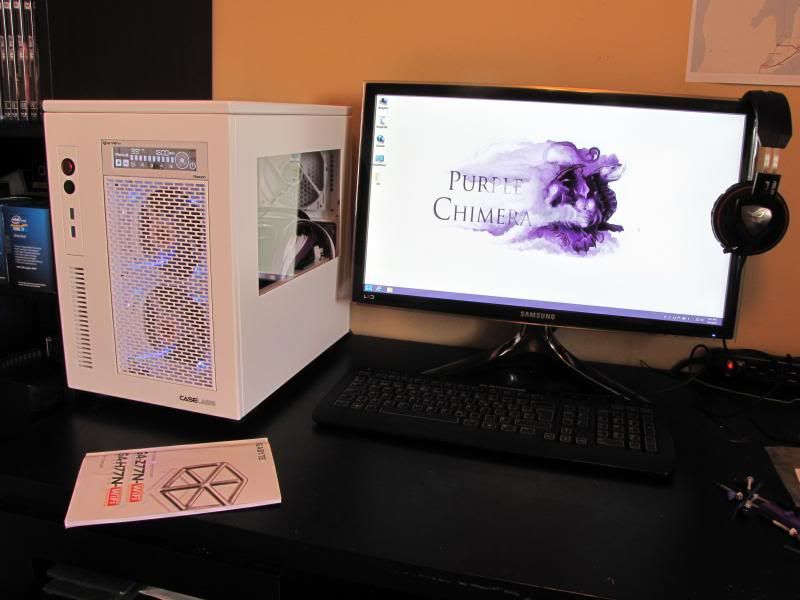

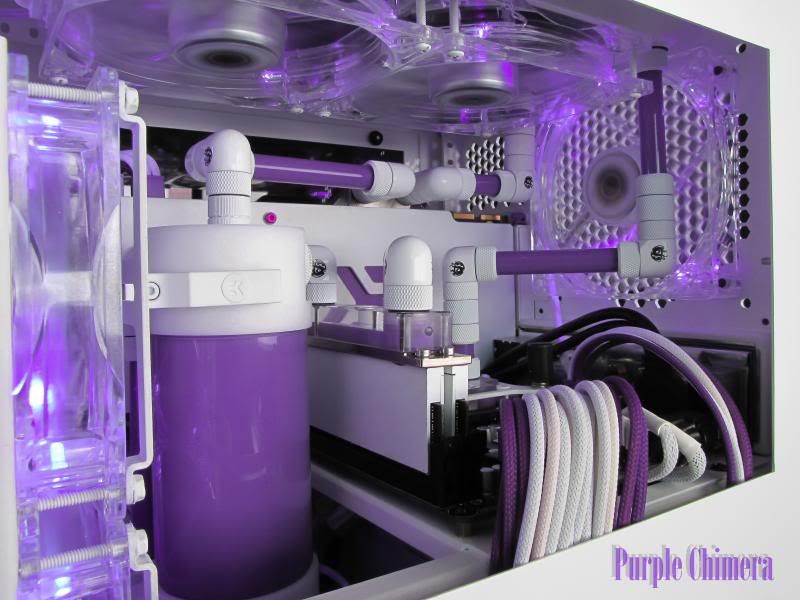

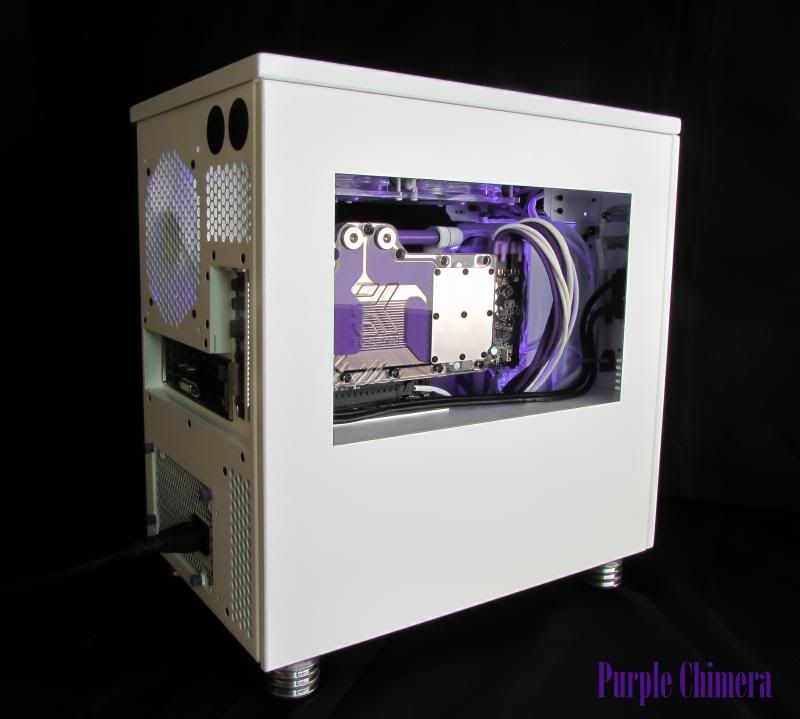

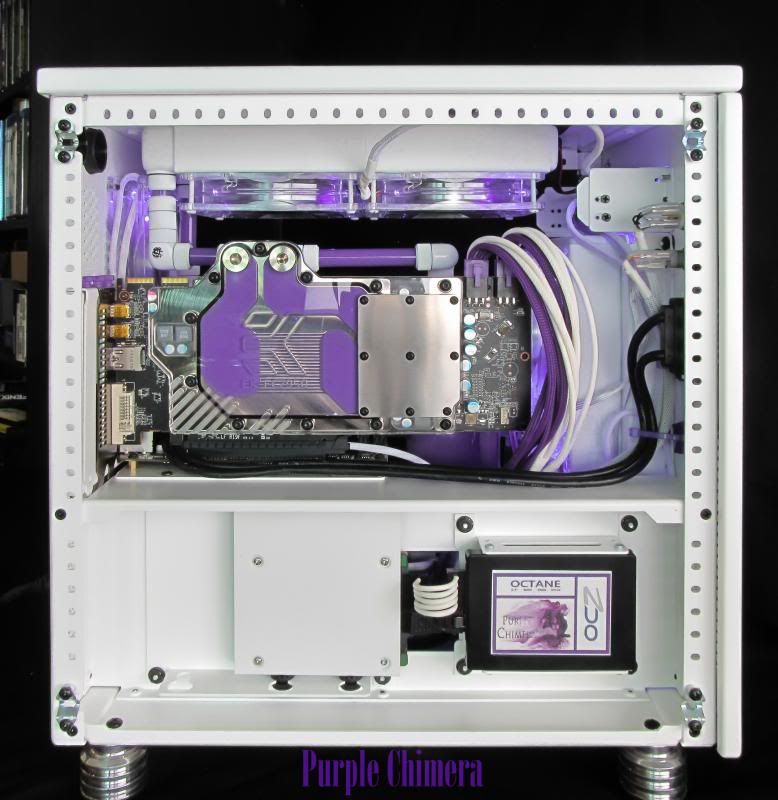

some Final Pics

ah!... not closed
anyway, no led

With Leds

now stop talking and place to Pics

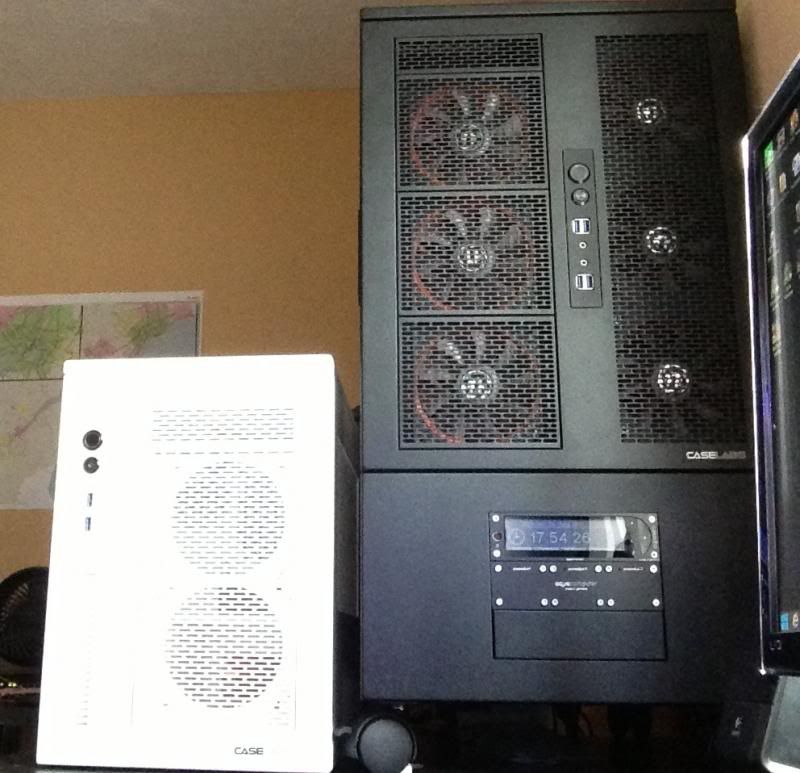

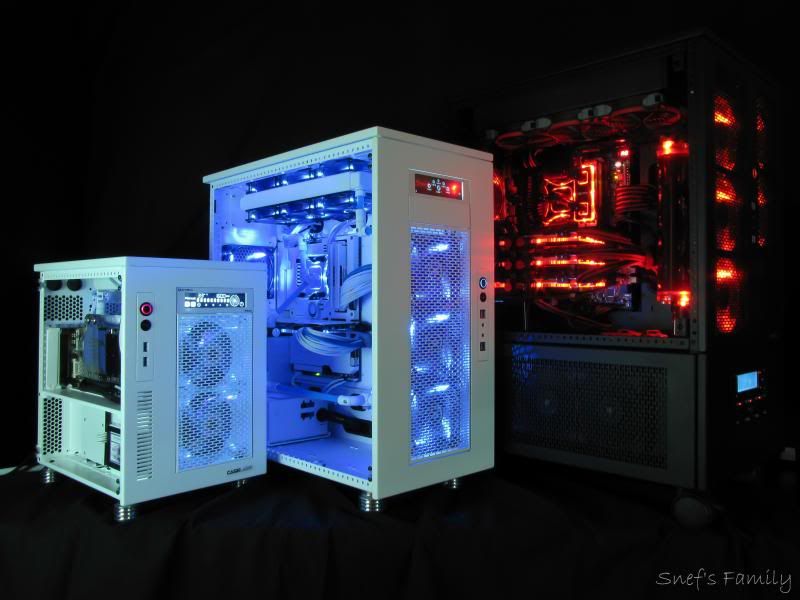

and the last one, the Snef's Caselabs Family

already planning for my next Project
a bench test,
