Hey guys
I recently built up my new rig but,as the title says,i can't get it stable at the speed of my modules which is 3200Mhz.
Main PC Specs:
MB:Asus ROG Rampage V extreme (BIOS Version 3504,latest)
CPU:I7 6800k
RAM:32Gb 4x8 Corsair Dominator DDR4 3200 Mhz 16-18-18-36 (2 separate 16Gb kits for a total of 32Gb)
PSU:coolermaster M2 1000w
Cooler:Corsair hydro 115i
By enabling in bios the XMP profile it doesn't boot and the Q-Code on the mobo is bd.
By changing the Ai overclock tuner to manual (left the core ratio to auto and the BCLK AT 100),setting the DRAM frequency at 3200,the DRAM voltage to 1.35V and setting the DRAM timing manually at 16-18-18-36 i finally managed to get into windows but 3 out of 5 stability and stress tests (1 of 2 AIDA64 extreme and 2 of 3 OCCT) reported errors (run for an hour each).
Now i brought bios back to the default settings and i'm here asking kindly for your help on how to set it up right!The bios of this mobo has many voltages and other options to tweak,i'm pretty sure there is a way to make it work properly at 3200mhz but i don't know how.I have some basic knowledge of overclocking but none of it helped me solve this matter.

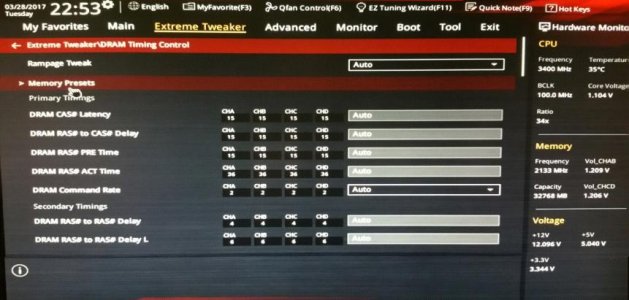

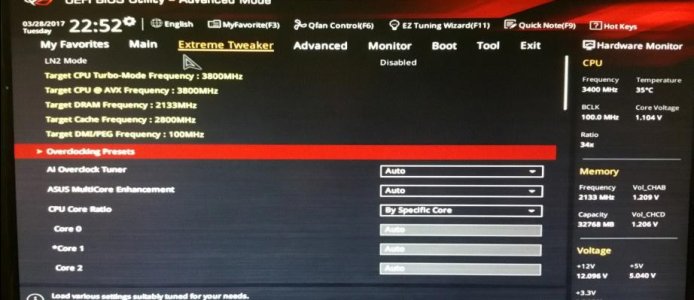

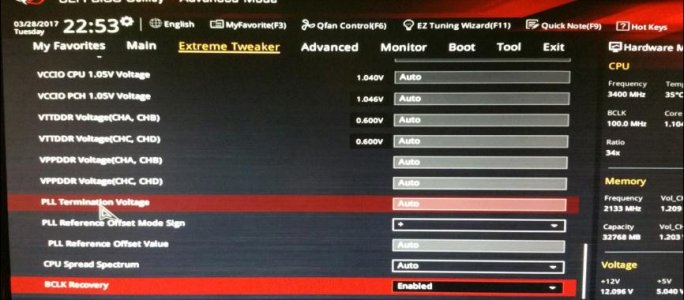

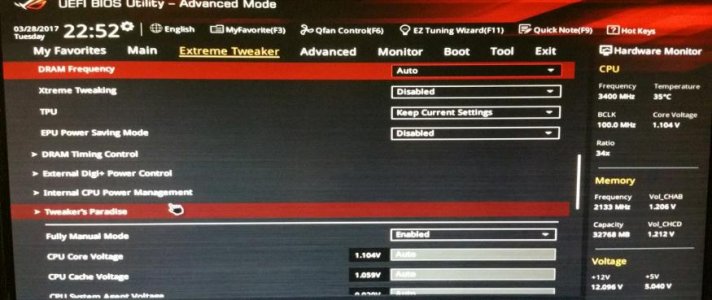

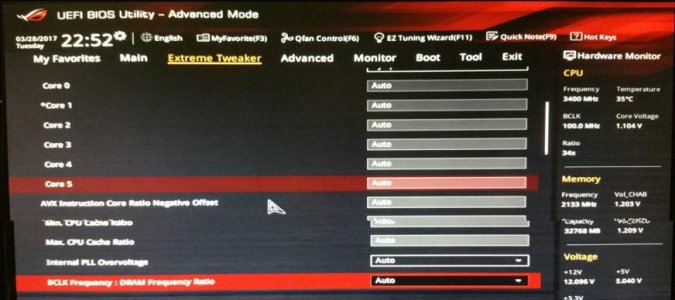

Below i attached some photos to make it easier for you to guide me through.If you need any other info or photo let me know.Thank you all in advance!
