Project: Redbull

[painejake]

Ok first off 2 reasons for the project name, one I love Redbull (too much...) and because I've decided on a red and black theme using the Bulldozer CPU family.

My first build thread (quite a few years ago now) can be seen here and since then quite a bit has changed. Thankfully!

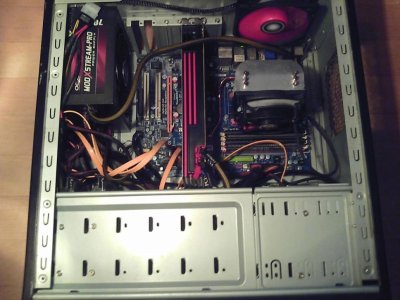

Here is a more recent snap of my PC (at bottom) and spec's can be found below:

AMD Athlon II X4 @ 3.2GHz
GA-M750SLI-DS4
XFX Radeon HD 5850 1GB
Corsair XMS2 8GB 800MHz
Seagate Barracuda 500GB x2 Raid0
Xilence Red Wing Cooling
OCZ ModXStream Pro 700W
Antec 300

This is more of an upgrade project with a few items from my previous build (such as PSU and HDD's and fans for radiators) being recycled into this one.

This is a planned spec of project upon completion:

AMD Bulldozer FX-8 8150 Black Edition 3.60Ghz (On hold for the moment)
Gigabyte 990FXA-UD3
ASUS EAH6870 1GB in Crossfire
Mushkin Redline Ridgeback 8GB 2133MHz
OCZ Agility 3 120GB (System)
Seagate Barracuda 500GB x4 Raid5 (Data)
Xilence Red Wing Cooling
Full Watercooling Loop
OCZ ModXStream Pro 700W
BitFenix Shinobi Core

This upgrade for me is very much about asthetics with my first build being a mess! So no corners will be cut and cable managment and looks are a must!

It's also over time as money persists so it should 'grow' nicely.



[yassarikhan786]

Shouldn't the theme be red, blue and silver



[painejake]

Shouldn't the theme be red, blue and silver

Yeah I suppose I just don't like blue and silver! If I'm honest I couldn't really think of a much better name, the color is more AMD based I guess

I've braided all the Xilence red wing fan cables, removed the 3 pin connectors as I don't want that mess showing and modded them to 5v for a nice slow spin. Will update with pics tomorrow.



[CPMFW]

try to hide the cables, makes it a lot tidier
maybe dremel some holes to put em behind the motherboard tray!
waiting for updated pics



[yassarikhan786]

Yeah I suppose I just don't like blue and silver! If I'm honest I couldn't really think of a much better name, the color is more AMD based I guess

I've braided all the Xilence red wing fan cables, removed the 3 pin connectors as I don't want that mess showing and modded them to 5v for a nice slow spin. Will update with pics tomorrow.

Red bull is a decent name though. You have black bulls with red eyes so it does fit



[wassupdoc]

Still needs lots of cable management, maybe upgrade your case?



[G-Dubs]

Pleeeeeeeeease sort the cables out.

You'll love yourself when you've done it. Really you will, and angels will come down from heavan and gasp at the beauty of the build, also the angels bit is a fib.



[painejake]

This is only as it is in its current state, new case and cable managment will becoming soon!

As I said in the thread this rig was thrown together and I regret not putting the time it to finish it properly, so it will get done properly!

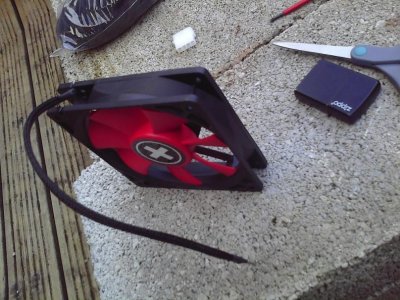

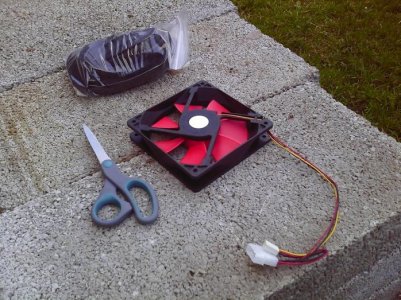

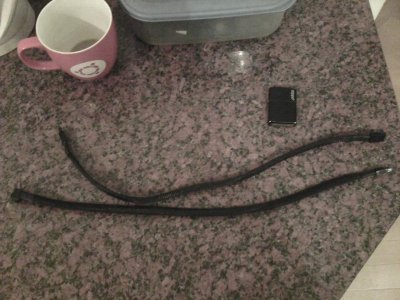

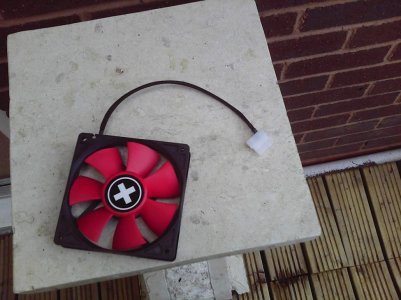

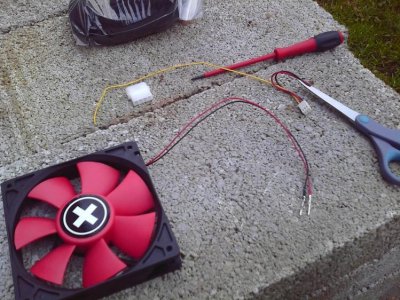

A little update, all the Red Wing fans (and SATA cables) are now braided and modded to 5v for a nice slow spin. Might need to up to 7v will have to see when I get the new case together.

Was thinking about putting red connectors on but they won't be on show anyway so. Might do that for the connectors you can see though.

Can't decide on group braiding the powersupply wires or single braiding though as the current braid I feel is too 'thin'. Soon the fit angels should visit, once they see this in the new case anyway!



[SEBAR]

Ubuntu FTW.

Nice job on the fan cables.



[C C]

I would say go with a 7950 over the 6870 CF.



[painejake]

I would say go with a 7950 over the 6870 CF.

I would have gone for something more but got these 6870's for a nice price here thanks to cerbrus2.



[wassupdoc]

I had 2 of those fans in my old rig, they were fantastic for the price, shame there was no room in my new one



[painejake]

I had 2 of those fans in my old rig, they were fantastic for the price, shame there was no room in my new one

Yeah for the price very quiet and shift alot of air
