Project: Ano-Li 343G

[Marcus]

Right I really don't know where to start with this one.. it's a big project to say the least.

It's tinytomlogans rig (WCUK Forums) and he's decided to call it Ano-Li 343G (yes thats a G not a B before you ask)

Also thanks to Graeme @ Kustom for sorting us out with this hard to find case.

--------------------------------------------------------------------------

Case: Lian Li PC343B

Hardware

Asus Commando Motherboard

Intel Q6600 G0

2GB Corsair Dominator PC8500

Nvidia 7600GS - Upgrade planned

750w TT Modular PSU

Cooling - Dual loop watercooling

Loop 1 - CPU & Mofsets

Laing DDC Ultra with XSPC Top

Black Ice GTS 360 Radiator

D-Tek Fuzion Block

EK Asus Mofset Blocks x 2

XSPC Passive Reservoir

Loop 2 - GPU & Chipsets

Laing DDC Ultra with XSPC Top

Black Ice GTS 360 Radiator

EK GPU Block

EK Asus Northbridge Block

EK Asus Southbridge Block

XSPC Passive Reservoir

Modding:

Internal case colouring

External case colouring

Both Side and Rear Panels Windowing

Roof modded to fit two 360 rads

Few pictures of the stock case below:



[Marcus]

Got some work done on it today... wooo been waiting to start this project for a few weeks!!

For know you can see a big pile of parts

Side Panels marked up for cutting

Side panel cut and quick test to see how it looks.

Like I said, more later



[Marcus]

Are you going to combine green and red?

No red in this one im afraid..

Another small update for you here:

First off I had to do a bit of modding to make the radiators fit in the roof, see the two bits on top of the drive bays...

... and now they're gone. This means I can fasten the rads to the roof whereas before they would catch on those bits.

Here is what the back of the case originally looked like:

and this is what it now looks like... yes that is gonna be a window eventually (don't ask why)

and this is a random picture of the acrylic being cut-out for the windows.

Stay tuned, more tomorrow!



[cube]

Oooh interesting idea with the window there - looking forward to seeing how this pans out!



[Mr. Smith]

Marcus mate, I shake my finger at you :nono: oc3d upload ftw

Can't see the images but I'll peruse them later @ home

Looking forward to seeing this and wth - graphics card mate! Sort it out!



[Mullet]

Marcus mate, I shake my finger at you :nono: oc3d upload ftw

Can't see the images but I'll peruse them later @ home

Looking forward to seeing this and wth - graphics card mate! Sort it out!

Same here....me wants to view da pics....but they've been blocked



[Marcus]

Why are they blocked!?!?!



[Mr. Smith]

Why are they blocked!?!?!

Can't speak for Mullet but they are blocked here at work as the hosting sites are blacklisted... 90% of the interesting stuff is blocked @ work - 'games' 'web hosting' 'streaming' 'pr0n' etc etc etc...



[Sniper_Deathstar]

Case: Lian Li PC343B

Lovely Case, how much does one go for?



[Marcus]

Case is about £220 I think but that comes as a barebone, no HD cages or anythin included.

I'll have another update on Tuesday / Wednesday after the internals have been powdercoated.



[Xperiment]

Have always liked that style of case, and that model in particular. Some great kit there, be nice to see what you do with it.... hope all goes well.



[flashpuma]

Marcus what pump is that in your avatar please? I'm guessing a DDC with oclabs top but the top looks larger than the ones I have see for example in your websites shop.



[Marcus]

@ Flashpuma - Pump pictured in my avatar is a DDC Pro with the original OC Labs plexi top, very similar to the XSPC top available on the shop. OC Labs replaced their original top with a new one a couple of months ago which is why you won't find it on the shop.



[Marcus]

woot... powdercoating has been done!!!

The finish is REALLY nice, the orange peel effect is very small compared to some other coatings i've seen in the past!!

Pictures aren't great as it's dark oautside so if the weather is nice tomorrow i'll get some better snaps in natural light.

I'll get it put back together shortly and then take some more photos

If you like what you see, PM me for a quote on coating!



[duke]

looks stunning, you certainly have your work cut out to put it all together



[tinytomlogan]

Ok peeps, 1st things first, Im new here. Marcus and Jim told me to join up and say hi!:wavey:

Time for me to hijack this thread seeing as Macus hasnt updated in a while!

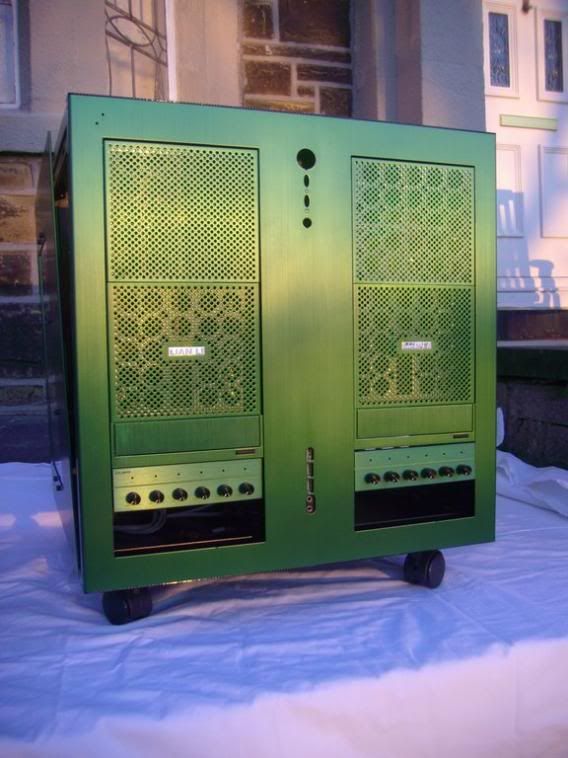

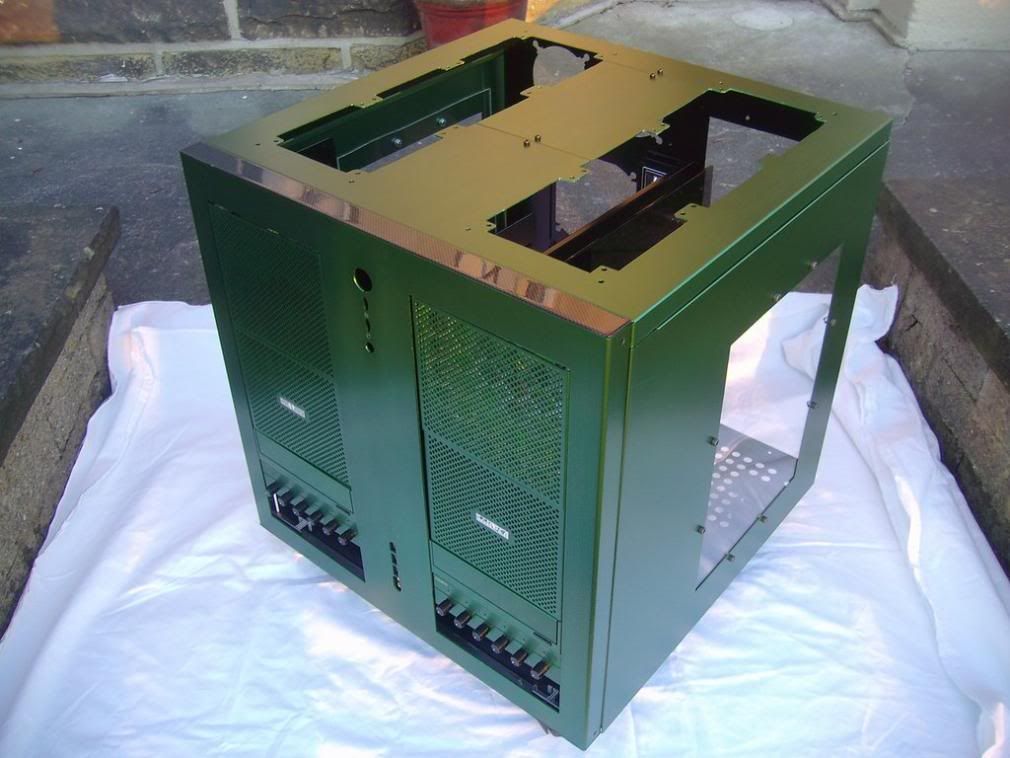

Now here are some more interesting pictures of my pride and joy, still yet to see it in the flesh I might add!

What do you guys think of the colour.....?

Still loads more to come for the case, some custom parts are being done for me atm so Ill update soon.

Spec has changed abit now too!

P5K premium Black Pearl Edition mobo

Same 2g Dominator PC8500

Coolermaster Pro 850w 6rail psu

Gainward 512 8800gt

2x WD 40gb Raid system drives

2x 500g WD storage drives

Full water cooling which I will list when I get to build as the list is HUGE!!

Please tell me what you think guys?



[ionicle]

woah that looks nice, that olive green wouldnt have been my first choise in colour (a bright lime/neon green i would have prefered ) but it looks sweet tbh

oh, and welcome to the forums



[tinytomlogan]

The colours for anodising are limited when it comes to different shades Im affraid dude, it was this or a British Racing Green style matt dark green.

In all honesty I didnt see this green till the 1st time I saw the case, we had afew problem getting a sample from the anodisers so I just took a leap of faith!



[FarFarAway]

Looks very nice, I was going to get a Zalman fan controller done pretty much the same way in different colours



[ionicle]

ah, i see your dilema, the subtle green looks good, its subtle enough to look good, but at the same time, to make people look twice, because they thought it looked black

cram it full of lights (or thats what i would do) and make it glow like a nuclear reactor

and i think that would look sweet, especially if you had neon green liquid in your watercooling setup that glowed green under UV light..
