Graphics cards - Volt mods / pencil mods 56K warning!

[Rasmus66]

Lets make this one a sticky so people easily can find volt mods

I will update this thread with volt mod pics, guides and other ways to mod your cards.

8800GTS 320/640, 8800GTX and ultra voltmods

Vddr mod:

Original voltage 1.81V

Solder vr from red point to ground. Tune down to increase voltage. With 5 Kohm vr voltage will be 1,86V

Vgpu mod:

Original voltage 1.26V idle it vdrops then loaded so OVP mod is needed

Connect variable resistor from red point to ground. Tune down and voltage will raise.

OVP mod:

Remove the three marked resistors to remove vdrop completely

Read points:

Nvidia 8600/8500/GT/GTS mod guide

http://www.techpowerup.com/forums/showthread.php?p=528242#post528242

8800GT/8800GTS 512Mb (G92)

Nvdia GTX280 refrence pcb

ATI HD3870 pencil mod guide

http://www.techpowerup.com/forums/showthread.php?t=48544

ATI HD3870 reference hard mods

vgpu mod:

vddr mod:

ATI HD4670

ATI HD4850 reference

vmod guide:

http://www.techpowerup.com/articles/overclocking/voltmods/151

ATI HD4870X2

Complete vmod and fan mod guide.

http://www.octeamdenmark.com/forums/extreme-mods/2774-ati-4870x2-full-vmod-cooler-guide.html

ATI HD5770 reference pcb

Read points

vgpu mod: Solder 50 kohm vr to ground.

MSI HD5770 Hawk

Vgpu mod: 50 kohm vr to ground.

ATI HD5870 Reference

vgpu mod:

read points:

OCP mod:

Caps mods:

ATI HD5970 Reference

vgpu mod:



[AdrianD2]

This is crazy, I have been curious about benching lately. Why do people bench though? Do they do it for pleasure or do they gain something from it?



[MSIRawZ]

Epic. Been meaning to find some time to do my HD 5870 but just can't find the time nor reason to. Think my 5870 is rubbish anyway.

@AdrianD2 - both



[AdrianD2]

Sounds pretty fun to me! How would I get into doing it, do I register somewhere?



[stevenwright6379]

Pinned it for you



[8bitbreed]

This is crazy, I have been curious about benching lately. Why do people bench though? Do they do it for pleasure or do they gain something from it?

I think theirs only one answer to that question. Its fun and it gets the brain firring on all cylinders, O thats 2.



[Rasmus66]

Pinned it for you

Thanks m8



[marsey99]

+1



[stevenwright6379]

Thanks m8

no problem

will give it a read some time over the next couple of days

and then try it when i have some spare cash floating around



[Rasmus66]

Hmm might need to update this thread with the unlimited MSI Afterburner version for vgpu soft mod for all the cards that support it



[Rasmus66]

My link

MSI Unlocked volt in afterbuner.

Use at your own risk.



[Rasmus66]

http://www.megaupload.com/?d=XPDFO918

MSI Unlocked volt in afterbuner.

Use at your own risk.



[Stromatolites]

I need to vmod and freeze my 5870 soon. Kingpins pots just will just drain money XD



[marsey99]

MSI GTX570 TFIII PE hardmod

might need to rehost these idk the source.



[Rasmus66]

HD7970 OCP Mod



[Rasmus66]

HD7870 reference design volt mods.

Gpu.

http://lab501.ro/wp-content/uploads/2012/03/P1270740-580x457.jpg

http://lab501.ro/wp-content/uploads/2012/03/P1270694-580x355.jpg

Memory

http://lab501.ro/wp-content/uploads/2012/03/P1270635-580x402.jpg

http://lab501.ro/wp-content/uploads/2012/03/P1270695-580x457.jpg

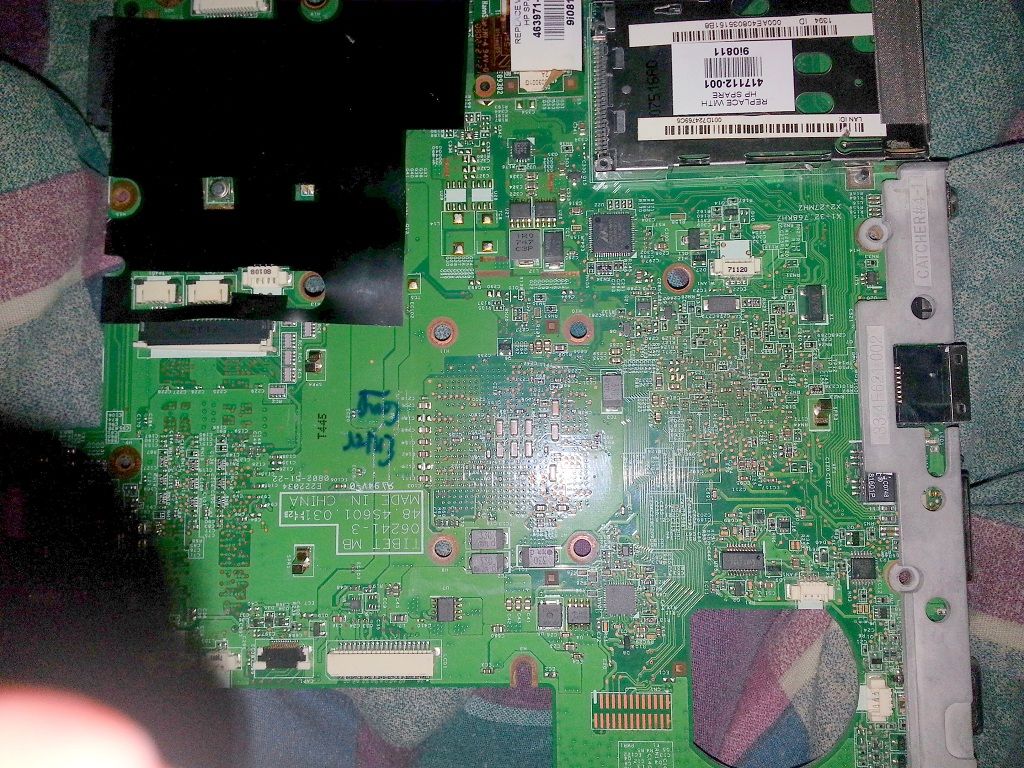

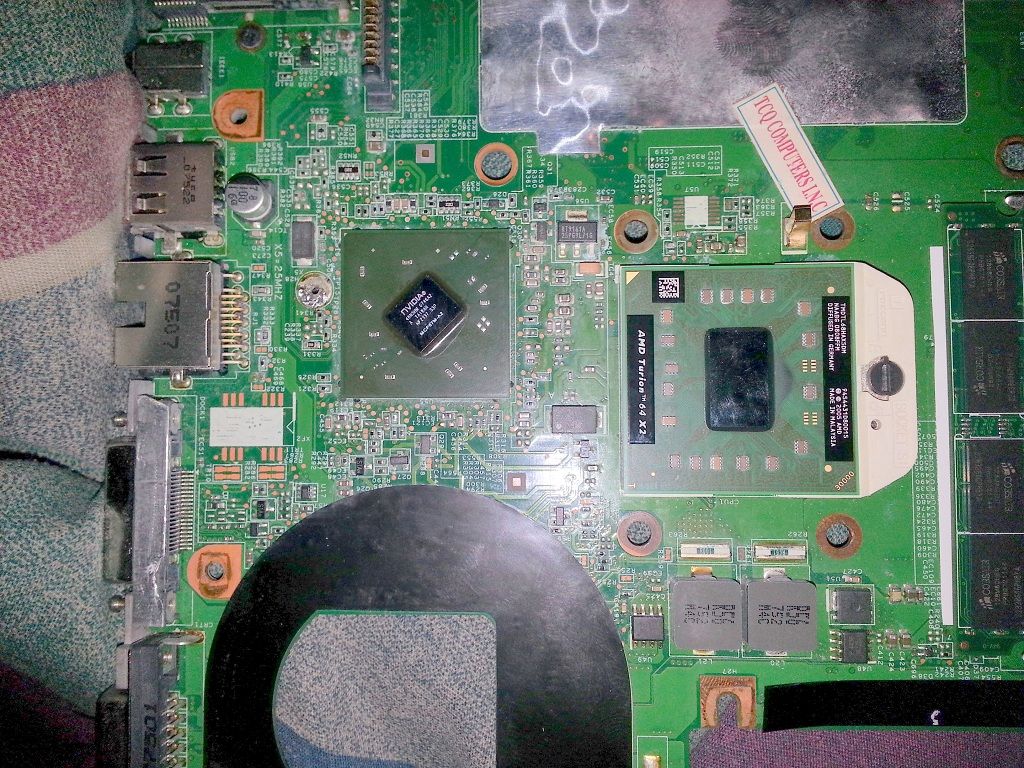

[chris89]

How to pencil mod this gpu? Thanks broski's!
