Z97-A TTL Forum Freebie build log

Hi all forumites as the title says I will be using the Z97-A motherboard that TTL gave away in his forum freebies plus the loaned Pentium K which is great for me as I only use ASUS boards
[IMG][/IMG]

Also I will use my Z11 Neo
8gb Kingston Hyper X Predator 2133
Sapphire R9 290 X Vapor X
240GB Kingston SSD
2 TB Seagate HDD
Superflower Leadex 750w white PSU
3x Bitfenix Spectre Pro 120 mm white LED fans
2x EK Vardar F3 1850 PWM fans
Xspc D5 Bay/Res with a Vario pump
Xspc 240 mm Radiator
Xspc Raystorm CPU waterblock
Primochill 7/16 Tubing

So I better get started
[IMG][/IMG]

I may change the case to a White one at some point with more Rad space as I want a waterblock on my Vapor X apparently EK will make them to order now.

Thanks for reading updates to follow

A big HUGE MASSIVE THANK YOU to OC3D for giving me the opportunity to change platforms from AMD to Intel

__________________

Build Log: http://forum.overclock3d.net/showthread.php?t=72241

“If you knew the magnificence of the three, six and nine, you would have a key to the universe.” – Nikola Tesla
Reply With Quote
  #2
Old 16-08-15, 11:12 AM
AlienALX's Avatar
AlienALX AlienALX is offline
OC3D Elite

Join Date: Mar 2015
Location: West Sussex
Posts: 8,677
Looking forward to this!
__________________
He used to do surgery
For girls in the eighties
But gravity always wins




Young man ya too girly girly, you're just a Cadbury's Curly Wurly
Reply With Quote
  #3
Old 16-08-15, 11:22 AM
Terrifictez85 Terrifictez85 is offline
OC3D Elite

Join Date: Dec 2010
Location: Leeds, West Yorkshire
Posts: 1,078
Looking good so far, love that PSU. Might be an idea to route cables round the back of the motherboard tray. Is amazing how much of a difference it makes with temps. Glad to see TTL has some decent forum members who don't try and profit from his generosity.
__________________
Asus Crosshair V - AMD 8320 - 16gb Kingston Savage 2133mhz - Powercolor R9 390 - 128gb Kingston V100+ ssd (R.I.P)- 2tb Samsung Spinpoint - 320gb Samsung Spinpoint - Corsair RM850w - Bitfenix Ronin

My Build - http://forum.overclock3d.net/showthread.php?t=72122
Reply With Quote
  #4
Old 21-08-15, 12:46 PM
Tolemac's Avatar
Tolemac Tolemac is offline
OC3D Elite

Join Date: Aug 2014
Location: Bonkersville.UK
Posts: 2,309

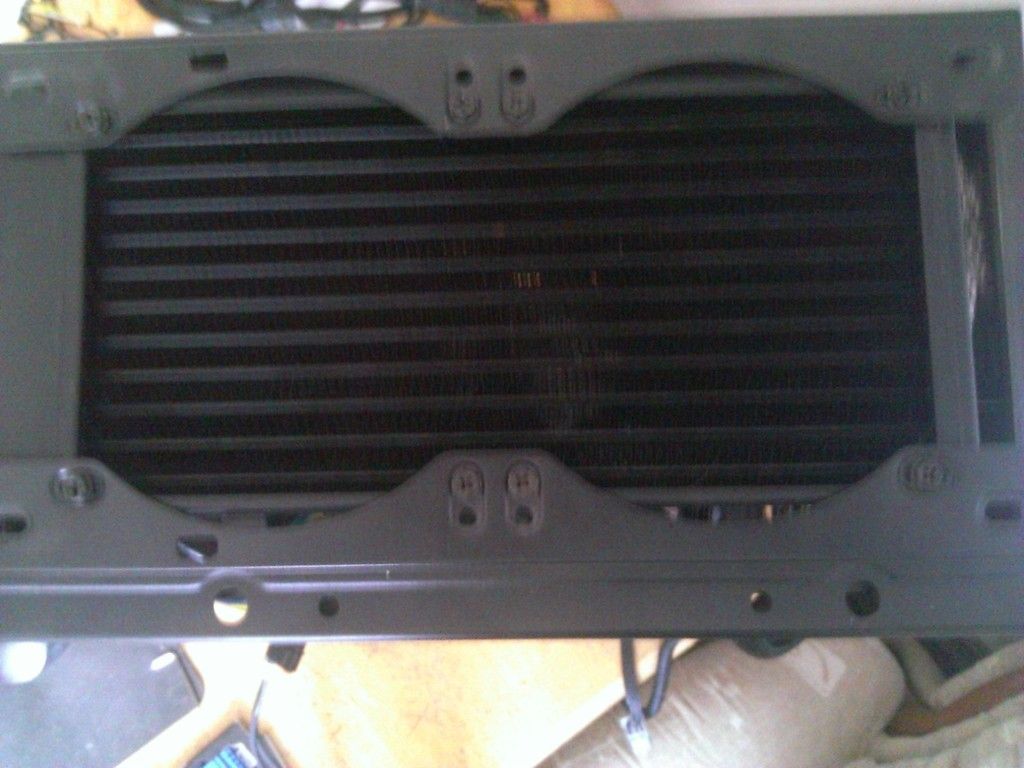

I'll be doing more tomorrow as I have just got home after a really busy week. Today I am just cleaning my Radiator and case I am also going to include building the waterloop and how to swap the window and led holder on the XSPC D5 bay/res as my window has a crack on it as there are no guides of how to do this on the internet.

EDIT: I have just noticed this thread is in the Rig Gallery. my apologies for this.
Mods please move this thread to the appropriate place on the forum.
__________________

Build Log: http://forum.overclock3d.net/showthread.php?t=72241

“If you knew the magnificence of the three, six and nine, you would have a key to the universe.” – Nikola Tesla
Reply With Quote
  #5
Old 21-08-15, 02:25 PM
Davva2004's Avatar
Davva2004 Davva2004 is offline
OC3D Elite

Join Date: Dec 2013
Location: Nottingham UK
Posts: 1,061
Looking forward to the updates!
__________________
Reply With Quote
  #6
Old 23-08-15, 10:17 AM
Tolemac's Avatar
Tolemac Tolemac is offline
OC3D Elite

Join Date: Aug 2014
Location: Bonkersville.UK
Posts: 2,309

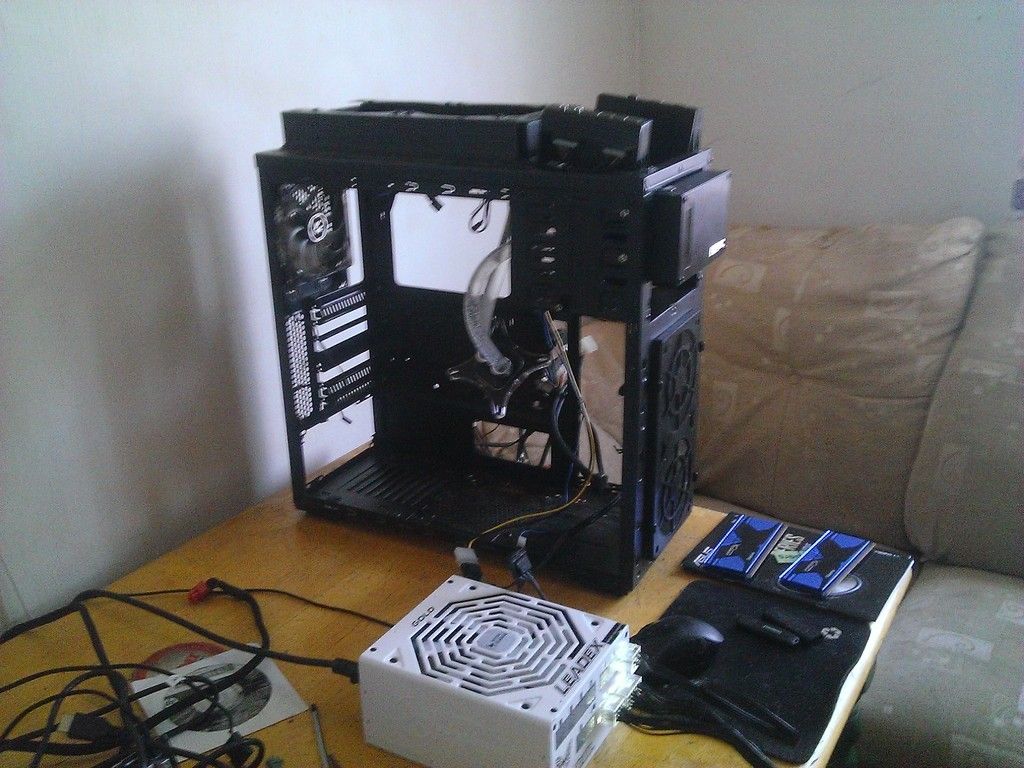

It's all in I did do a rather lengthy post but I got logged out so I just thought I would show you guy's what it is looking like and i'll come back to the lengthy post another time [IMG][/IMG]

Once again a big thank you to TTL and WYP for giving me this Motherboard and the loan of the Pentium K. I will be getting a 4960K in 2 weeks. I did lower the core voltage as the motherboard put it at 1.22v stock so I lowered it to 1.v
__________________

Build Log: http://forum.overclock3d.net/showthread.php?t=72241

“If you knew the magnificence of the three, six and nine, you would have a key to the universe.” – Nikola Tesla
Reply With Quote
  #7
Old 23-08-15, 11:13 AM
AlienALX's Avatar
AlienALX AlienALX is offline
OC3D Elite

Join Date: Mar 2015
Location: West Sussex
Posts: 8,677
Good stuff
__________________
He used to do surgery
For girls in the eighties
But gravity always wins




Young man ya too girly girly, you're just a Cadbury's Curly Wurly
Reply With Quote
  #8
Old 23-08-15, 04:51 PM
Tolemac's Avatar
Tolemac Tolemac is offline
OC3D Elite

Join Date: Aug 2014
Location: Bonkersville.UK
Posts: 2,309

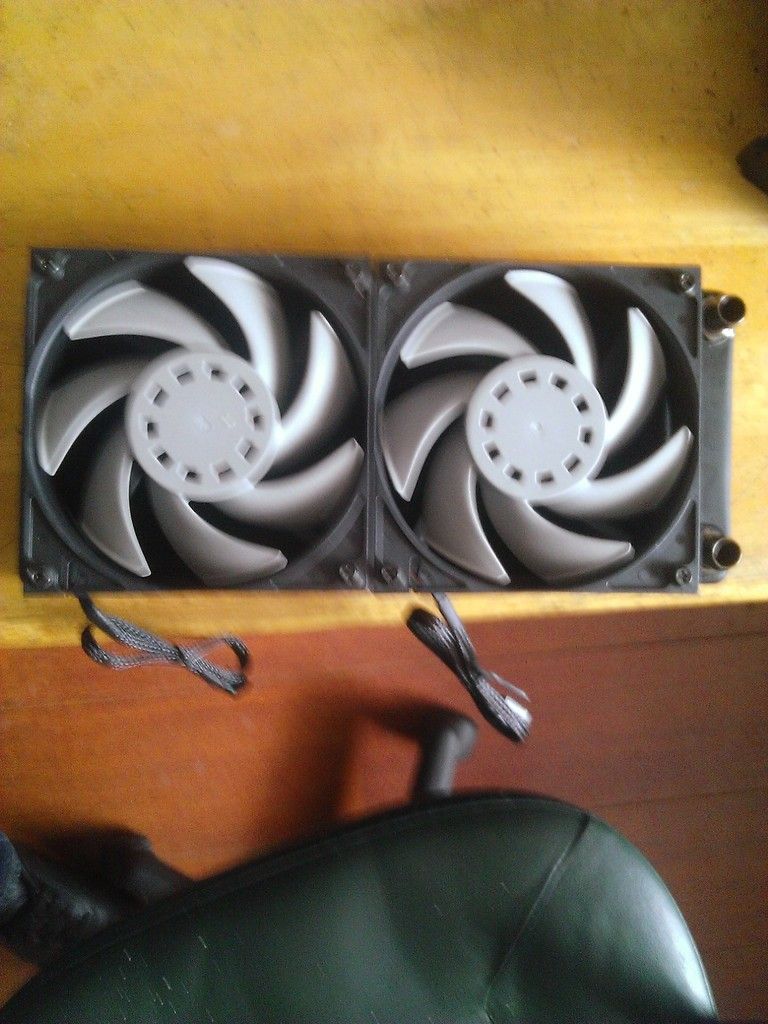

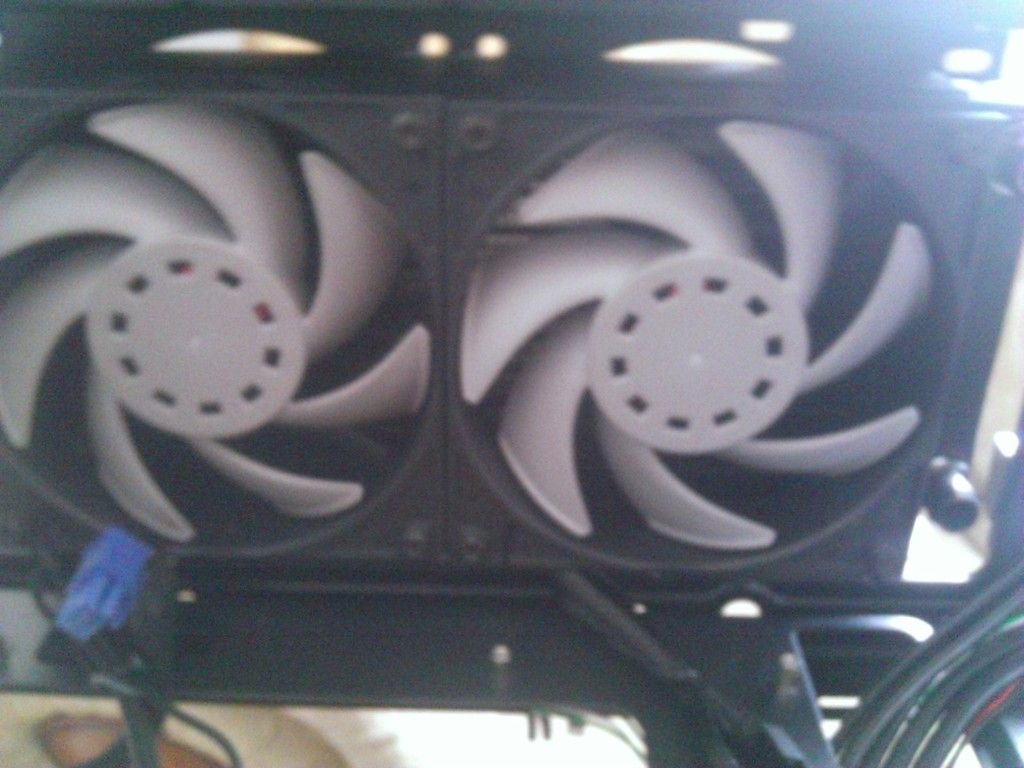

So here are the EK vardar F3 fans on the 240mm radiator sorry about pic quality I only have my phone
[IMG][/IMG]

Time to put them in
[IMG][/IMG]

[IMG][/IMG]

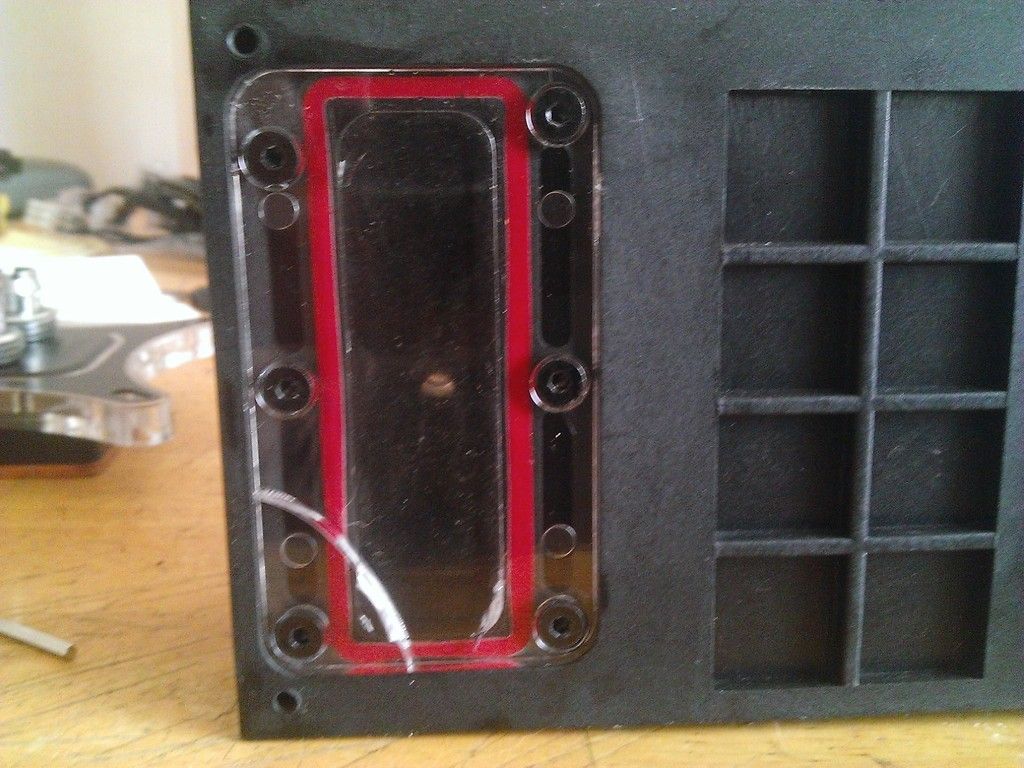

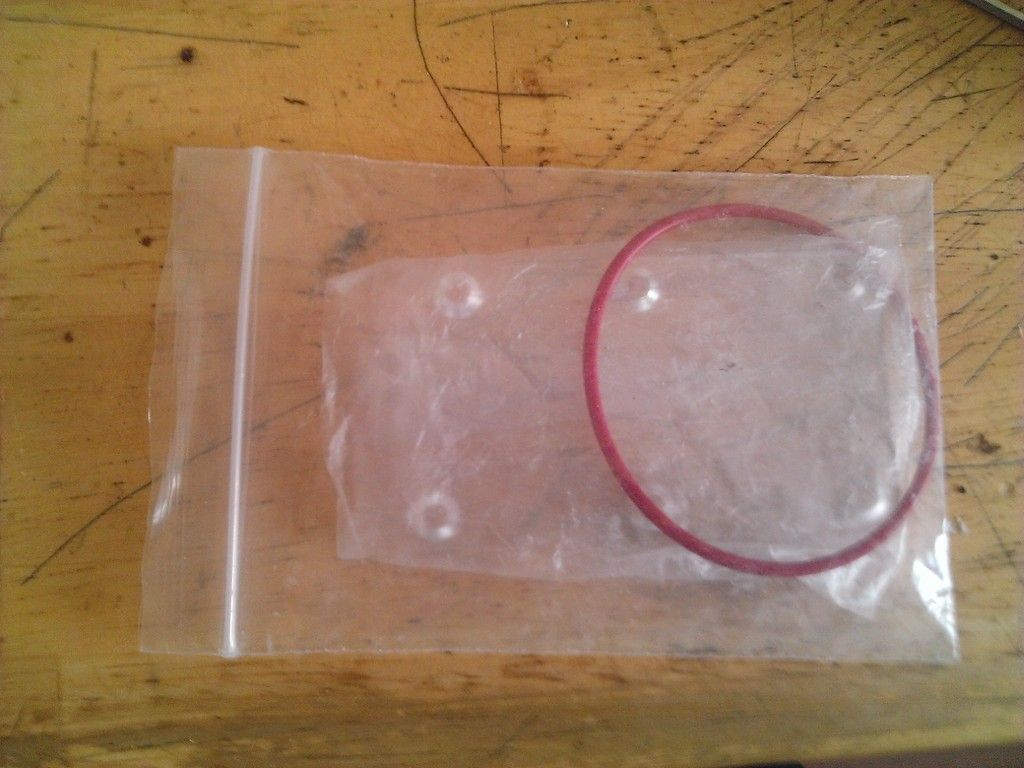

Then A cracked window on my bay/res luckily I had a spare window which are available from xspc for £5 which comes with led holder, seal, allen key and screws
[IMG][/IMG]
[IMG][/IMG]



fitted new window and leak tested it

[IMG][/IMG]

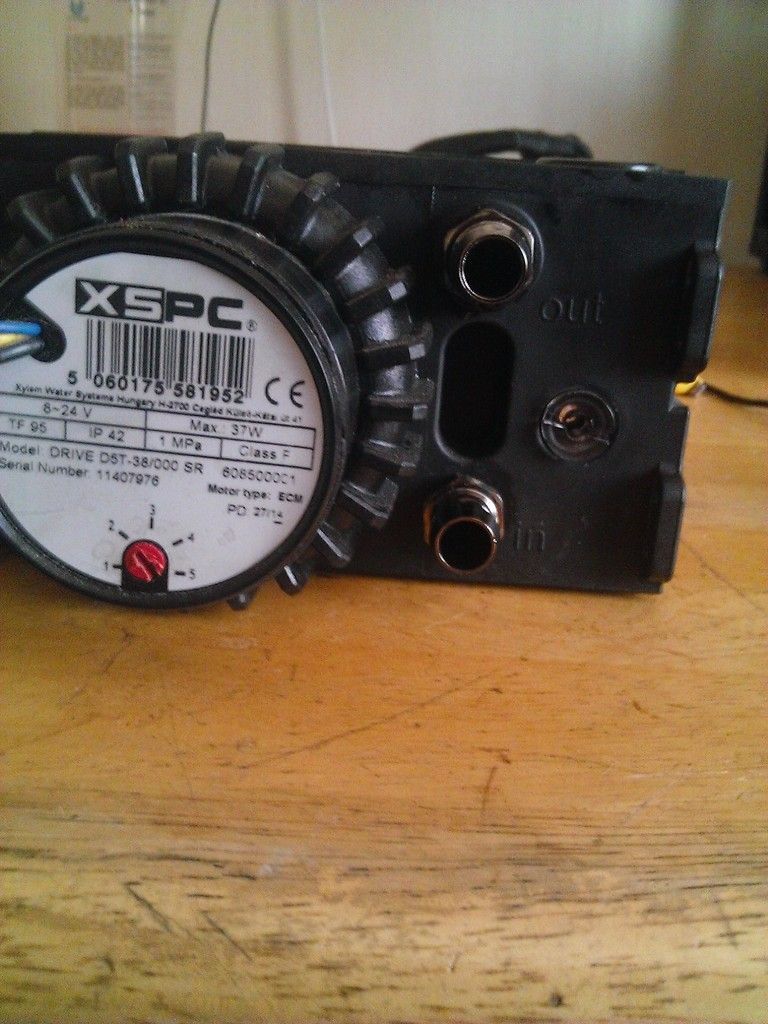

Just a heads up here guy's these led holders are very poorly made and are likely to break on these XSPC bay/res what I did was just screw the led holder in using a small coin until the rubber seal is in contact and does its job

with all that done time to fit the waterblock to the motherboard

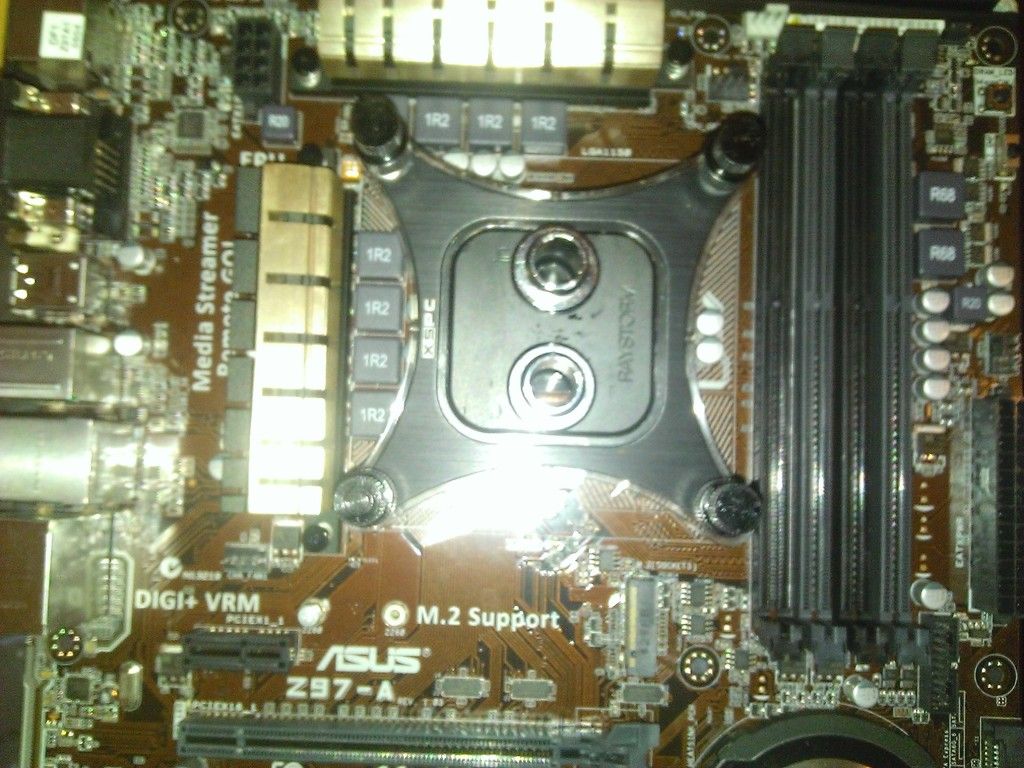

[IMG][/IMG]

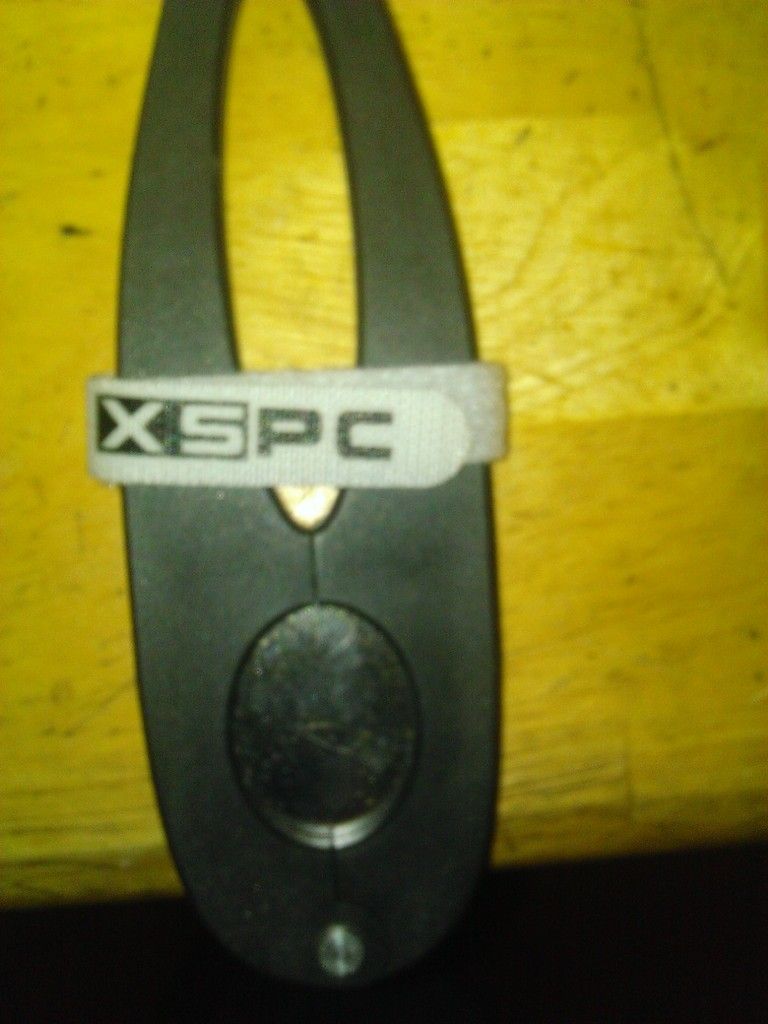

Time for my cutters worth their weight in gold
[IMG][/IMG]

I then cut the tubing to size I used Primochill 7/16 as its better quality than XSPC

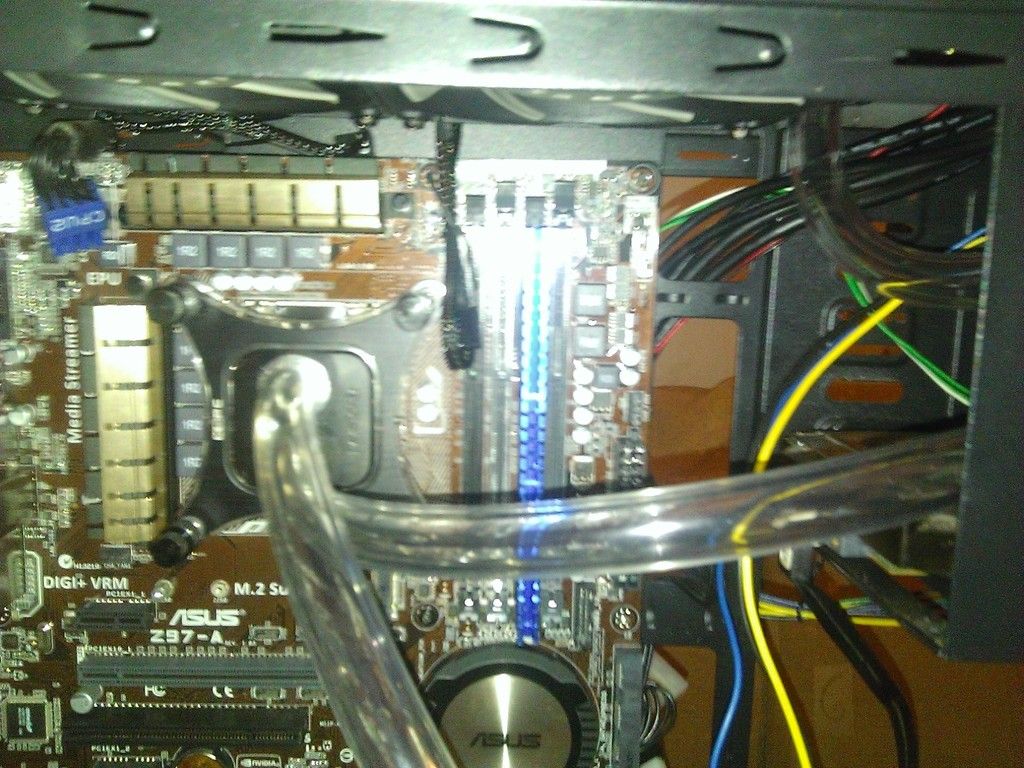

[IMG][/IMG]

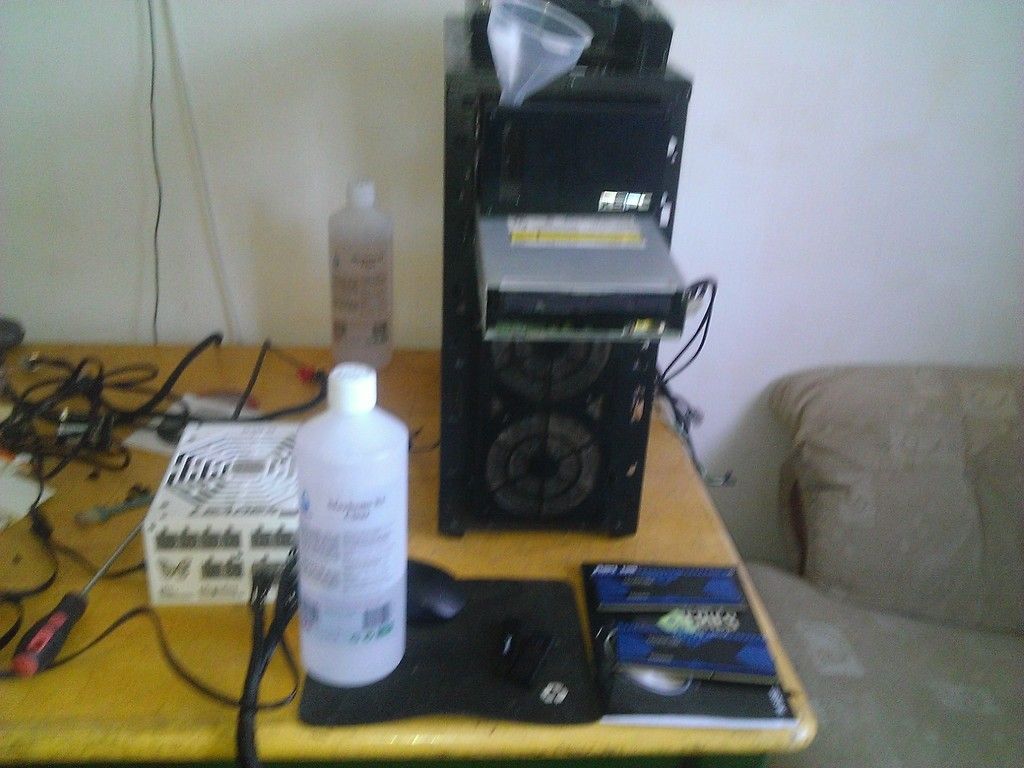

I took the motherboard out,filled and bled the loop. I use Mayhems X1 clear coolant
[IMG][/IMG]

[IMG][/IMG]

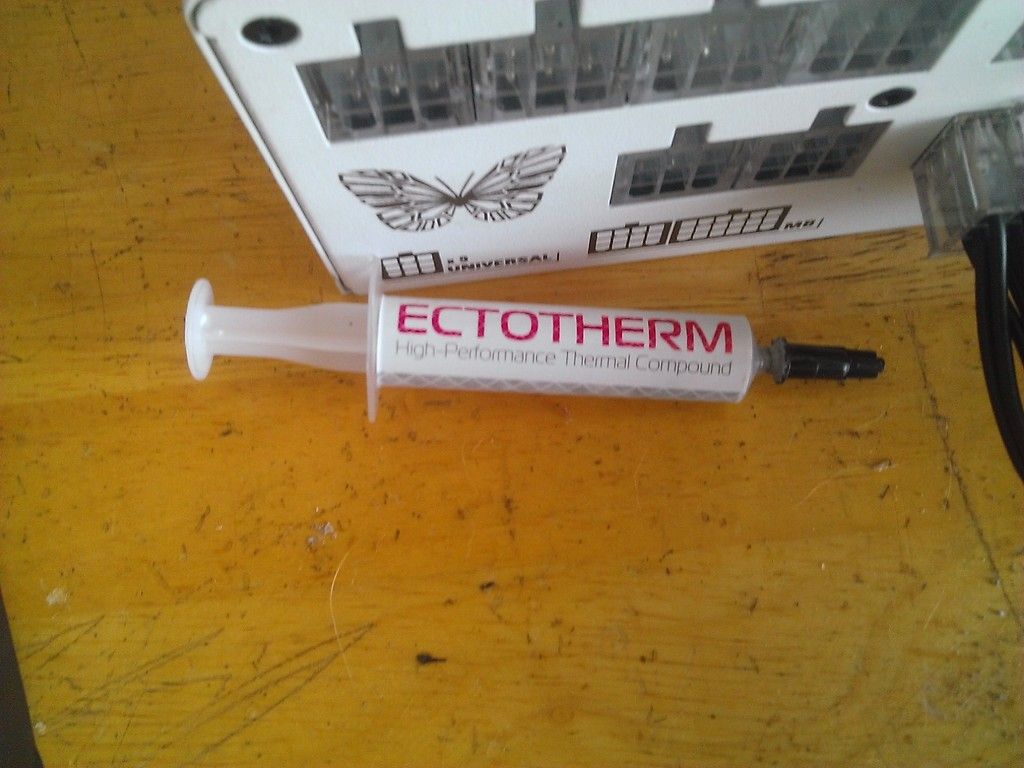

I then cleaned the Pentium K although it looked clean to the eye it wasn't then I used EK Ectotherm TIM its just as good as NT-H1 but half the price
[IMG][/IMG]

[IMG][/IMG]

My Sapphire R9 290X Vapor X what a real 290 should look like
[IMG][/IMG]

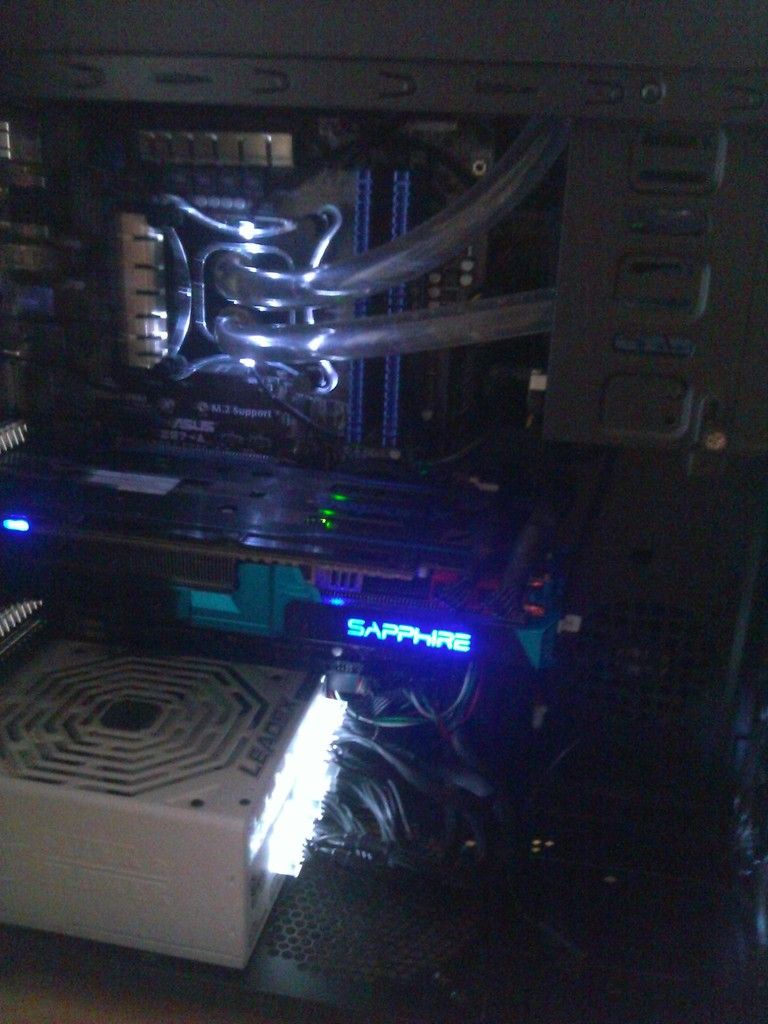

Finally up and running but still have cable management to do
"sigh"

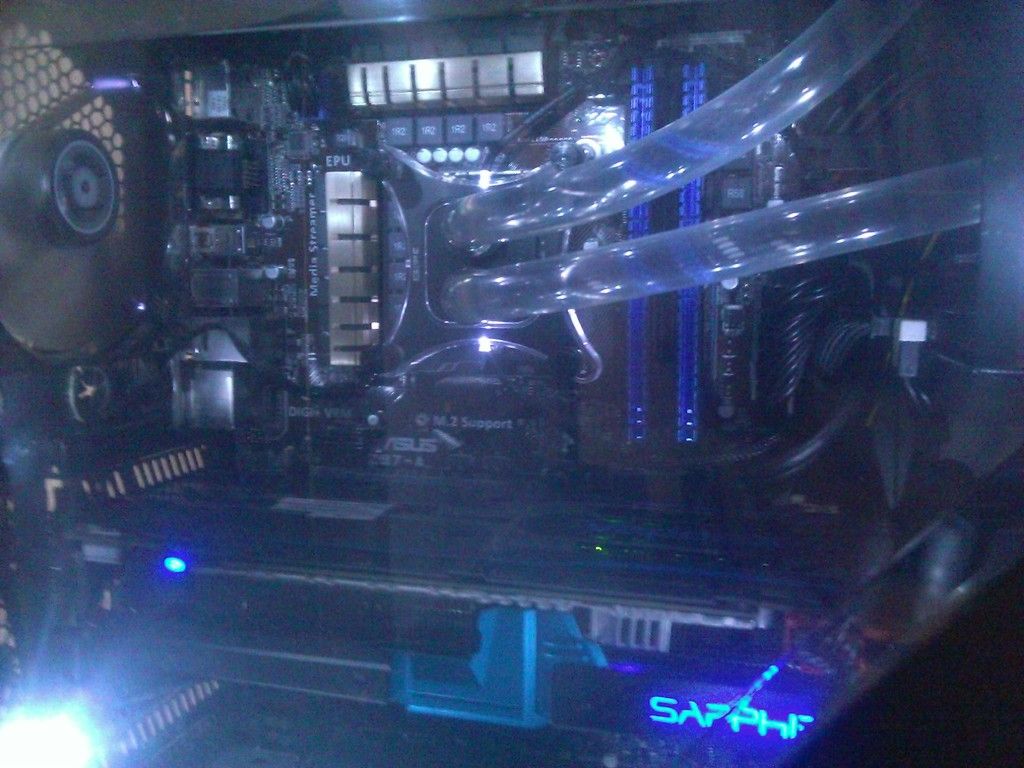

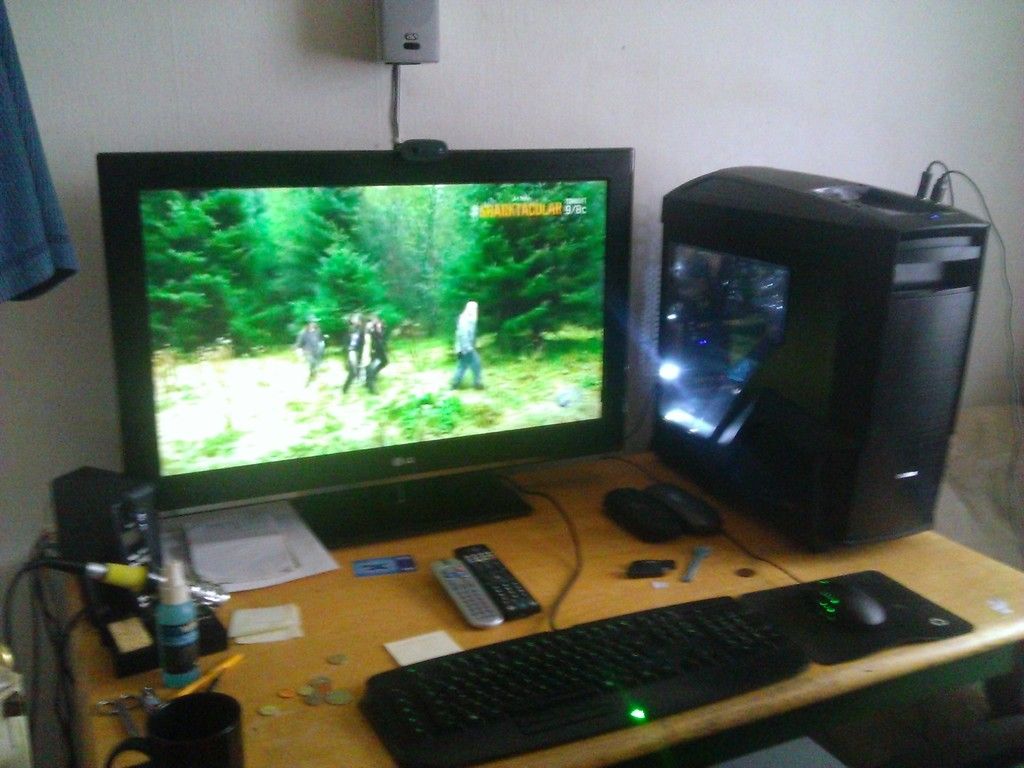

[IMG][/IMG]
