Noir - Lian Li V300 Build



Project Noir

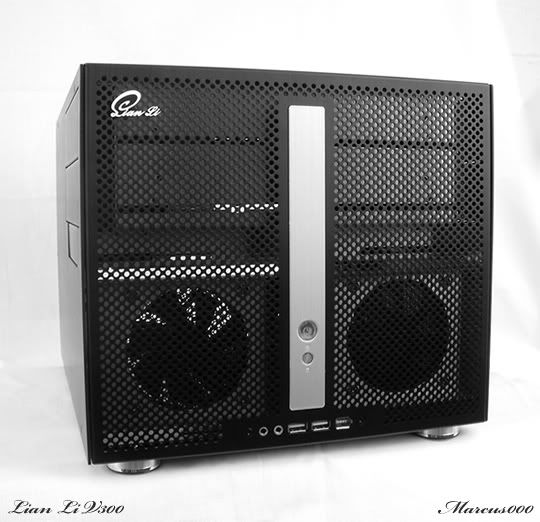

Case: Lian Li V300

Hardware:

Foxconn mATX board (pending purchase)

2GB DDR2

ATI 3870X2

Zalman 600w PSU

Water Cooling:

DDC Pro with Res Top

XSPC 240mm Rad

XSPC Delta V3 or D-Tek Fuzion V1

Mods:

TBC

With the world going MDPC crazy I thought i'd have a go at it!

Reply With Quote
  #2
Old 31-10-08, 11:12 AM
Marcus Marcus is offline
OC3D Crew

Join Date: Sep 2007
Posts: 654
Case Modding

Got the case out and had a look how to fit the cooling inside it.

Going to put an XSPC RS240 radiator in the front after i've modded the fans to 120mm instead of those 80mm's.





First problem I can see is the 2 external 3.5" drive bays.

They're going to fowl on any radiator I try to fit in there so i'm gonna have to zip those off.





-------------------------------------

I got a few other bits & pieces done today whilst I had the jigsaw out.

Cut a piece of aluminum to size which will fasten the bottom of the 5.25" drives together after i've cut out the 3.5" bays.



Also cut another piece to size, once i've finished with this it'll accept 120mm fans instead of the tiny 80mm fans.

Got this idea from another V300 build I found on the net.



I've started looking at pump mounting, the Xirex Res top is about 15mm too tall thats that idea down the pan.

Currently looking at mounting an EK 150ml reservoir somewhere and using a normal DDC top instead.





----------------------------------------------

I went out and bought a new pack of Dremel Cut-off Wheels because I couldn't get at the drive bays with a jigsaw.

I've cut the 3.5" bays off the bottom of the 5.25" bays in order to allow me to fit the radiator in the front of the case.





Drive Bays after being powder coated Satin Black



Modding the mobo tray for Cable Managment



Then once it has been powder coated Satin Black





Reply With Quote
  #3
Old 31-10-08, 11:13 AM
Marcus Marcus is offline
OC3D Crew

Join Date: Sep 2007
Posts: 654
Hardware

Foxconn mATX motherboard





2GB Kingston RAM - Need to find some nice heatsinks for these



Silverstone Fans - Thermally Controlled 120mm Fans



Reply With Quote
  #4
Old 31-10-08, 11:13 AM
Marcus Marcus is offline
OC3D Crew

Join Date: Sep 2007
Posts: 654
Reserved for final pictures!
Reply With Quote
  #5
Old 31-10-08, 11:44 AM
Luigi Luigi is offline
OC3D Elite

Join Date: Oct 2007
Posts: 2,499
Subscribed.. is this the candy red case?
__________________
Luigi

-----------

Project: Flat Pack - Coming soon
Reply With Quote
  #6
Old 31-10-08, 12:45 PM
Marcus Marcus is offline
OC3D Crew

Join Date: Sep 2007
Posts: 654
Quote:
Originally Posted by name='teknokid'
Subscribed.. is this the candy red case?
Nope. this is gonna stay pretty standard on the outside.
Reply With Quote
  #7
Old 31-10-08, 06:07 PM
tinytomlogan's Avatar
tinytomlogan tinytomlogan is online now
The Guvnor

Join Date: Dec 2007
Location: TTL Towers
Posts: 15,291
Candy Red? Ooooh its a race, welshys is candy red, but with one hell of a twist :P
__________________

If you recommend a product LINK THE REVIEW


Get along or run along. Your choice
Reply With Quote
  #8
Old 01-11-08, 03:35 PM
Marcus Marcus is offline
OC3D Crew

Join Date: Sep 2007
Posts: 654
Aaaye, some candy red powder left over from another job and got offered it since it's not something they'd normally use.
Reply With Quote
  #9
Old 01-11-08, 04:22 PM
tinytomlogan's Avatar
tinytomlogan tinytomlogan is online now
The Guvnor

Join Date: Dec 2007
Location: TTL Towers
Posts: 15,291
Ahhh mines not powder. Never have powder on the outside of a case again.
__________________

If you recommend a product LINK THE REVIEW


Get along or run along. Your choice
Reply With Quote
  #10
Old 05-11-08, 09:07 AM
rrjwilson rrjwilson is offline
OC3D Crew

Join Date: Apr 2008
Posts: 574
Powder on the outside is fine but it should be plasma etched on for extra toughness.
